MD125-010

125A Main Distribution Boxes
IN: 125A CEE 400V 5P
OUT: 16A CEE 240V 3P, 19 Pin Connector, 32A CEE 400V 5P, 63A CEE 400V 5P, 13A UK Type 240V
  • MD125-010MCBMD125-010MCB

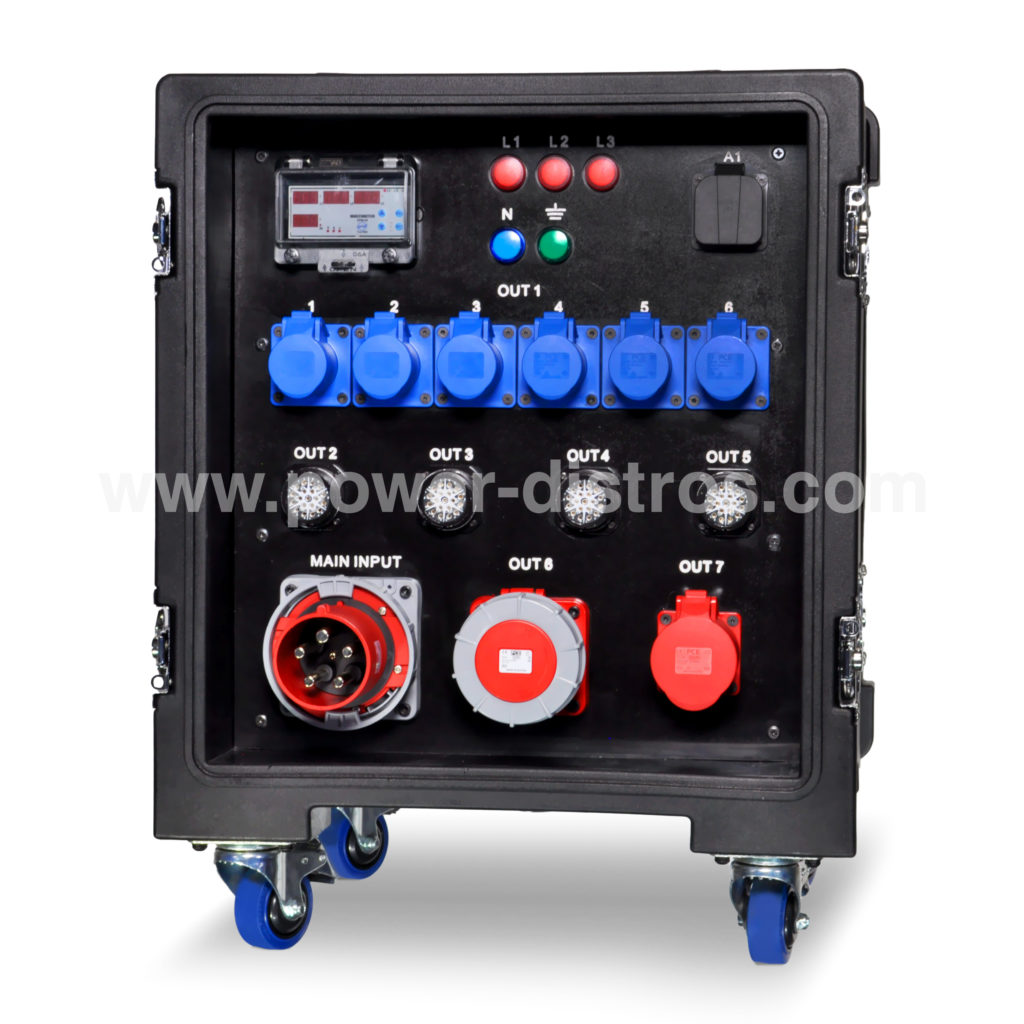

    MD125-010MCB

    SKU: MD125-010MCB CATEGORY: 125A Main Distribution Boxes
    INPUT
    PlugsBreakers

    1 x 125A CEE 400V 5 Pin Panel Plug

    1 x 125A MCB 4P

    OUTPUT
    SocketsBreakers

    6 x 16A CEE 240V 3 Pin Flanged Socket

    6 x 16A MCB 1P

    4 x 19 Pin Panel Socket

    24 x 16A MCB 1P

    1 x 32A CEE 400V 5 Pin Flanged Socket

    1 x 32A MCB 4P

    1 x 63A CEE 400V 5 Pin Flanged Socket

    1 x 63A MCB 4P

    1 x 13A UK Type 240V 3 Pin Panel Socket

    1 x 10A MCB 1P

    CASE

    12U High-density Polyethylene Case 610x580x764mm
    Stackable
    Integrated Handles and Wheels
    IP65 with lids closed

    FEATURES

    Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

    Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Yellow

    Protection Level: MCB

    Additional Information: Made of Premium Components

    Download MD125-010MCB Technical Sheet

  • MD125-010RCDMD125-010RCD

    MD125-010RCD

    SKU: MD125-010RCD CATEGORY: 125A Main Distribution Boxes
    INPUT
    PlugsBreakers

    1 x 125A CEE 400V 5 Pin Panel Plug

    1 x 125A MCB 4P

    OUTPUT
    SocketsBreakers

    6 x 16A CEE 240V 3 Pin Flanged Socket

    1 x 40A RCD 4P
    6 x 16A MCB 1P

    4 x 19 Pin Panel Socket

    4 x 40A RCD 4P
    24 x 16A MCB 1P

    1 x 32A CEE 400V 5 Pin Flanged Socket

    1 x 40A RCD 4P
    1 x 32A MCB 4P

    1 x 63A CEE 400V 5 Pin Flanged Socket

    1 x 63A RCD 4P
    1 x 63A MCB 4P

    1 x 13A UK Type 240V 3 Pin Panel Socket

    1 x 10A MCB 1P

    CASE

    12U High-density Polyethylene Case 610x580x764mm
    Stackable
    Integrated Handles and Wheels
    IP65 with lids closed

    FEATURES

    Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

    Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Yellow

    Protection Level: RCD

    Additional Information: Made of Premium Components

    Download MD125-010RCD Technical Sheet

  • MD125-010RCBOMD125-010RCBO

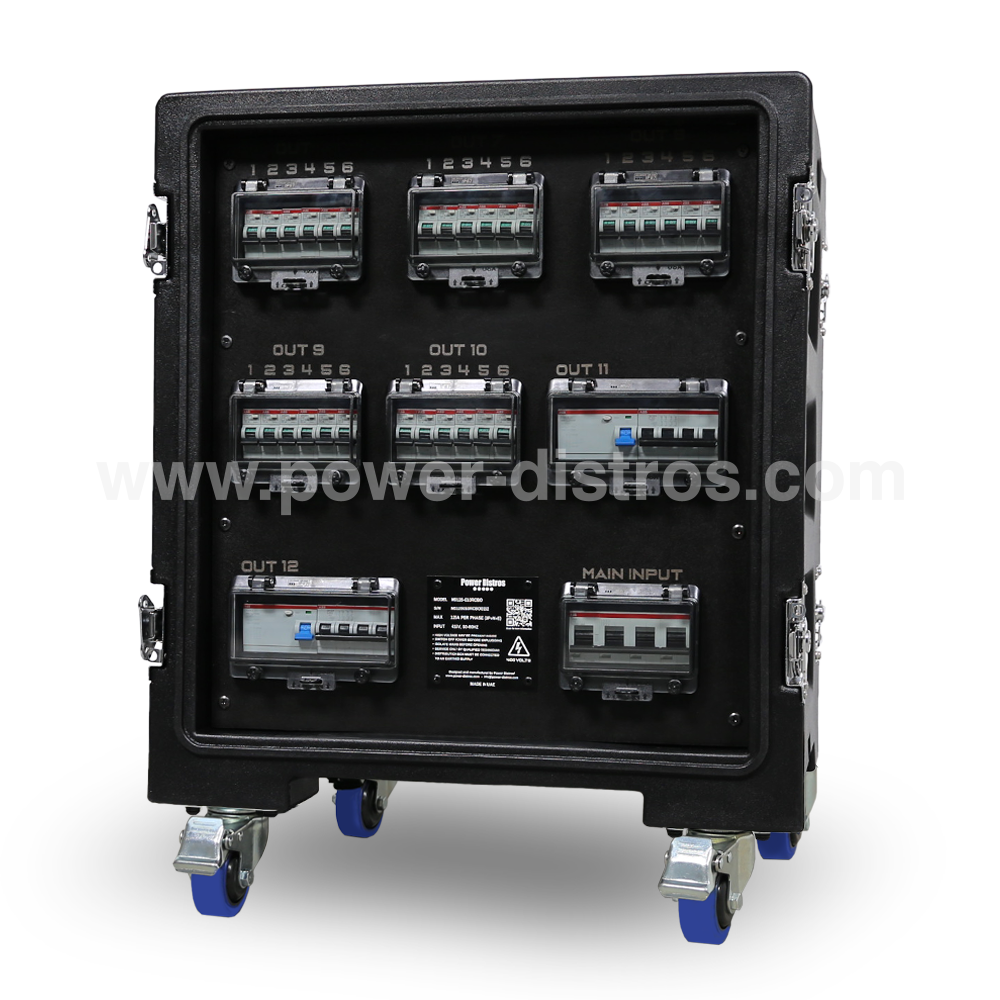

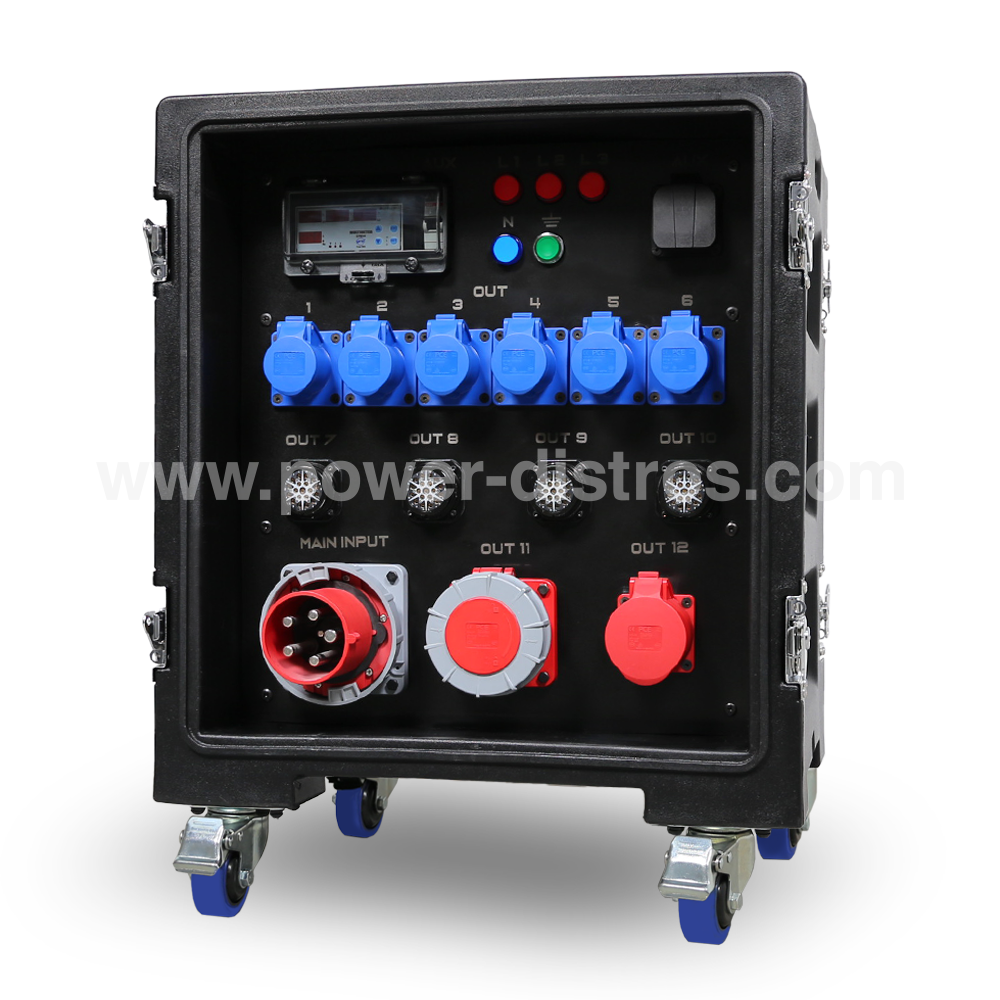

    MD125-010RCBO

    SKU: MD125-010RCBO CATEGORY: 125A Main Distribution Boxes
    INPUT
    PlugsBreakers

    1 x 125A CEE 400V 5 Pin Panel Plug

    1 x 125A MCB 4P

    OUTPUT
    SocketsBreakers

    6 x 16A CEE 240V 3 Pin Flanged Socket

    6 x 16A RCBO

    4 x 19 Pin Panel Socket

    24 x 16A RCBO

    1 x 32A CEE 400V 5 Pin Flanged Socket

    1 x 40A RCD 4P
    1 x 32A MCB 4P

    1 x 63A CEE 400V 5 Pin Flanged Socket

    1 x 63A RCD 4P
    1 x 63A MCB 4P

    1 x 13A UK Type 240V 3 Pin Panel Socket

    1 x 10A MCB 1P

    CASE

    12U High-density Polyethylene Case 610x580x764mm
    Stackable
    Integrated Handles and Wheels
    IP65 with lids closed

    FEATURES

    Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

    Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Yellow

    Protection Level: RCBO

    Additional Information: Made of Premium Components

    Download MD125-010RCBO Technical Sheet
