MD125-090

IN: 125A CEE 400V 5P
OUT: 16A CEE 240V 3P, 32A CEE 240V 3P, 63A CEE 400V 5P, 32A CEE 400V 5P

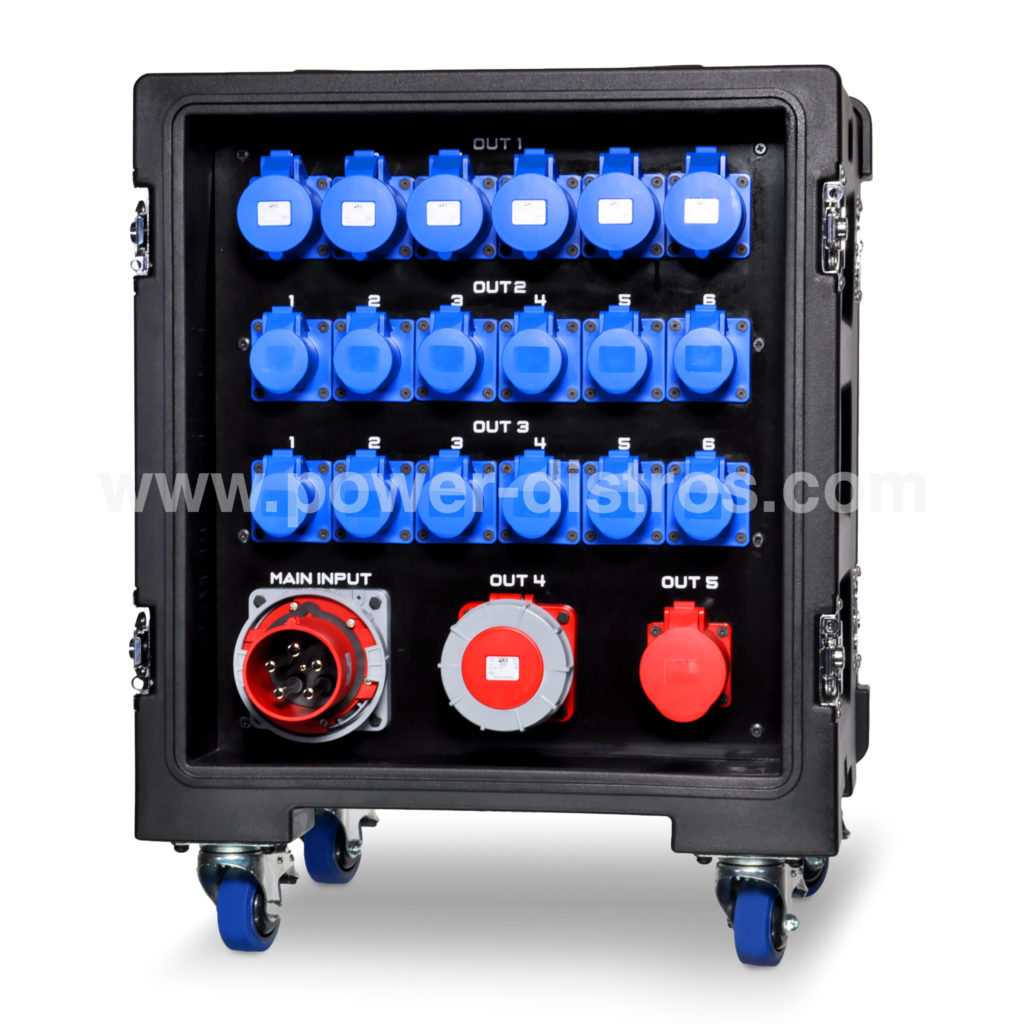

  • MD125-090MCBMD125-090MCB

    MD125-090MCB

    SKU: MD125-090MCB CATEGORY: 125A Main Distribution Boxes
    INPUT
    PlugsBreakers

    1 x 125A CEE 400V 5 Pin Panel Plug

    1 x 125A MCB 4P

    OUTPUT
    SocketsBreakers

    12 x 16A CEE 240V 3 Pin Flanged Socket

    12 x 16A MCB 1P

    6 x 32A CEE 240V 3 Pin Flanged Socket

    6 x 32A MCB 1P

    1 x 63A CEE 400V 5 Pin Flanged Socket

    1 x 63A MCB 4P

    1 x 32A CEE 400V 5 Pin Flanged Socket

    1 x 32A MCB 4P

    1 x 13A UK Type 240V 3 Pin Panel Socket

    1 x 10A MCB 1P

    CASE

    12U High-density Polyethylene Case 610x580x764mm
    Stackable
    Integrated Handles and Wheels
    IP65 with lids closed

    FEATURES

    Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

    Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green

    Protection Level: MCB

    Additional Information: Made of Premium Components

    Download MD125-090MCB Technical Sheet

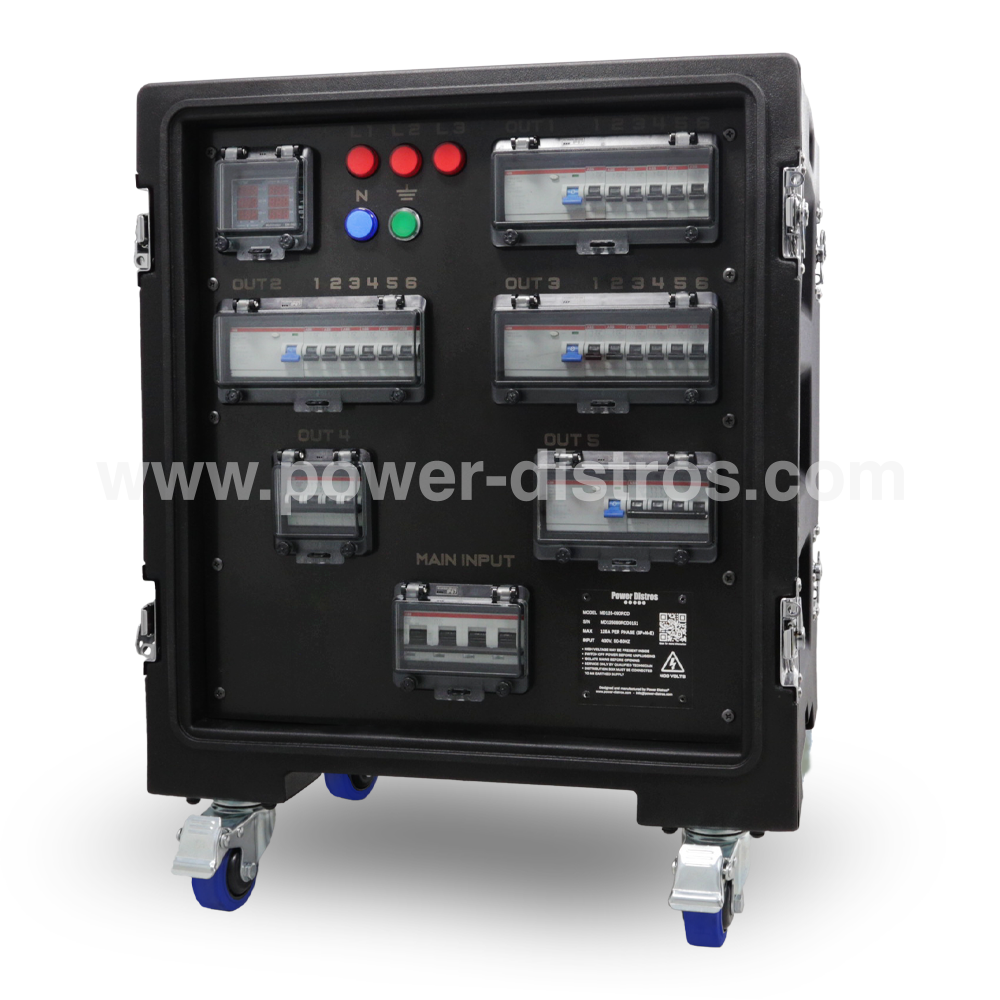

  • MD125-090RCDMD125-090RCD

    MD125-090RCD

    SKU: MD125-090RCD CATEGORY: 125A Main Distribution Boxes
    INPUT
    PlugsBreakers

    1 x 125A CEE 400V 5 Pin Panel Plug

    1 x 125A MCB 4P

    OUTPUT
    SocketsBreakers

    12 x 16A CEE 240V 3 Pin Flanged Socket

    2 x 40A RCD 4P
    12 x 16A MCB 1P

    6 x 32A CEE 240V 3 Pin Flanged Socket

    1 x 63A RCD 4P
    6 x 32A MCB 1P

    1 x 63A CEE 400V 5 Pin Flanged Socket

    1 x 63A RCD 4P
    1 x 63A MCB 4P

    1 x 32A CEE 400V 5 Pin Flanged Socket

    1 x 40A RCD 4P
    1 x 32A MCB 4P

    CASE

    12U High-density Polyethylene Case 610x580x764mm
    Stackable
    Integrated Handles and Wheels
    IP65 with lids closed

    FEATURES

    Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

    Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green

    Protection Level: RCD

    Additional Information: Made of Premium Components

    Download MD125-090RCD Technical Sheet

  • MD125-090RCBOMD125-090RCBO

    MD125-090RCBO

    SKU: MD125-090RCBO CATEGORY: 125A Main Distribution Boxes
    INPUT
    PlugsBreakers

    1 x 125A CEE 400V 5 Pin Panel Plug

    1 x 125A MCB 4P

    OUTPUT
    SocketsBreakers

    12 x 16A CEE 240V 3 Pin Flanged Socket

    12 x 16A RCBO

    6 x 32A CEE 240V 3 Pin Flanged Socket

    6 x 32A RCBO

    1 x 63A CEE 400V 5 Pin Flanged Socket

    1 x 63A RCD 4P
    1 x 63A MCB 4P

    1 x 32A CEE 400V 5 Pin Flanged Socket

    1 x 40A RCD 4P
    1 x 32A MCB 4P

    1 x 13A UK Type 240V 3 Pin Panel Socket

    1 x 10A MCB 1P

    CASE

    12U High-density Polyethylene Case 610x580x764mm
    Stackable
    Integrated Handles and Wheels
    IP65 with lids closed

    FEATURES

    Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

    Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green

    Protection Level: RCBO

    Additional Information: Made of Premium Components

    Download MD125-090RCBO Technical Sheet
