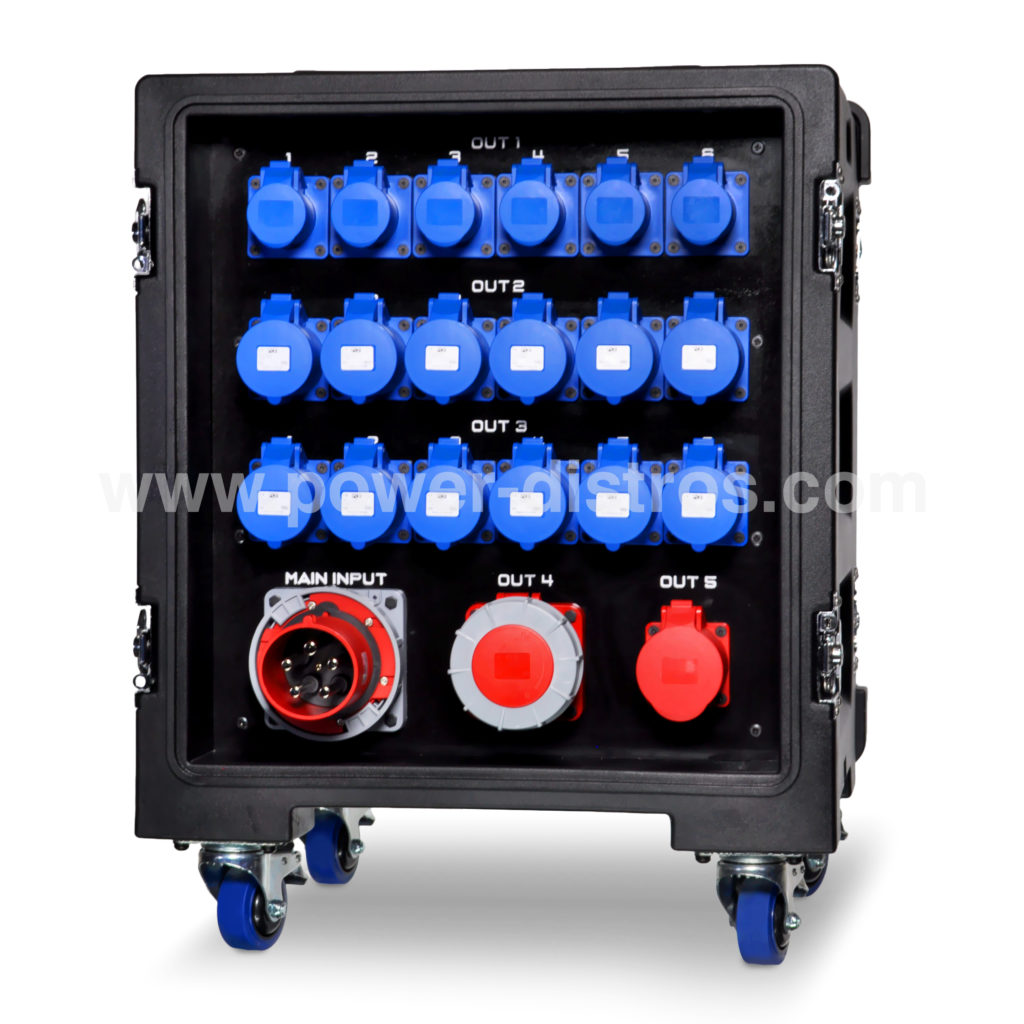

MD125-100
IN: 125A CEE 400V 5P
OUT: 16A CEE 240V 3P, 32A CEE 240V 3P, 63A CEE 400V 5P, 32A CEE 400V 5P, 13A UK Type 240V
-
MD125-100MCB
Download MD125-100MCB Technical SheetINPUT Plugs Breakers 1 x 125A CEE 400V 5 Pin Panel Plug
1 x 125A MCB 4P
OUTPUT Sockets Breakers 6 x 16A CEE 240V 3 Pin Flanged Socket
6 x 16A MCB 1P
12 x 32A CEE 240V 3 Pin Flanged Socket
12 x 32A MCB 1P
1 x 63A CEE 400V 5 Pin Flanged Socket
1 x 63A MCB 4P
1 x 32A CEE 400V 5 Pin Flanged Socket
1 x 32A MCB 4P
1 x 13A UK Type 240V 3 Pin Panel Socket
1 x 10A MCB 1P
CASE 12U High-density Polyethylene Case 610x580x764mm
Stackable
Integrated Handles and Wheels
IP65 with lids closedFEATURES Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency
Pilot LED Lights:
Protection Level: MCB
Additional Information: Made of Premium Components
-
MD125-100RCD
Download MD125-100RCD Technical SheetINPUT Plugs Breakers 1 x 125A CEE 400V 5 Pin Panel Plug
1 x 125A MCB 4P
OUTPUT Sockets Breakers 6 x 16A CEE 240V 3 Pin Flanged Socket
1 x 40A RCD 4P
6 x 16A MCB 1P12 x 32A CEE 240V 3 Pin Flanged Socket
2 x 63A RCD 4P
12 x 32A MCB 1P1 x 63A CEE 400V 5 Pin Flanged Socket
1 x 63A RCD 4P
1 x 63A MCB 4P1 x 32A CEE 400V 5 Pin Flanged Socket
1 x 40A RCD 4P
1 x 32A MCB 4P1 x 13A UK Type 240V 3 Pin Panel Socket
1 x 10A MCB 1P
CASE 12U High-density Polyethylene Case 610x580x764mm
Stackable
Integrated Handles and Wheels
IP65 with lids closedFEATURES Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency
Pilot LED Lights:
Protection Level: RCD
Additional Information: Made of Premium Components
-
MD125-100RCBO
Download MD125-100RCBO Technical SheetINPUT Plugs Breakers 1 x 125A CEE 400V 5 Pin Panel Plug
1 x 125A MCB 4P
OUTPUT Sockets Breakers 6 x 16A CEE 240V 3 Pin Flanged Socket
6 x 16A RCBO
12 x 32A CEE 240V 3 Pin Flanged Socket
12 x 32A RCBO
1 x 63A CEE 400V 5 Pin Flanged Socket
1 x 63A RCD 4P
1 x 63A MCB 4P1 x 32A CEE 400V 5 Pin Flanged Socket
1 x 40A RCD 4P
1 x 32A MCB 4P1 x 13A UK Type 240V 3 Pin Panel Socket
1 x 10A MCB 1P
CASE 12U High-density Polyethylene Case 610x580x764mm
Stackable
Integrated Handles and Wheels
IP65 with lids closedFEATURES Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency
Pilot LED Lights:
Protection Level: RCBO
Additional Information: Made of Premium Components
