MD125-270

125A Main Distribution Boxes
IN: 125A CEE 400V 5P
OUT: 20A PowerCon, 13A UK Type 240V

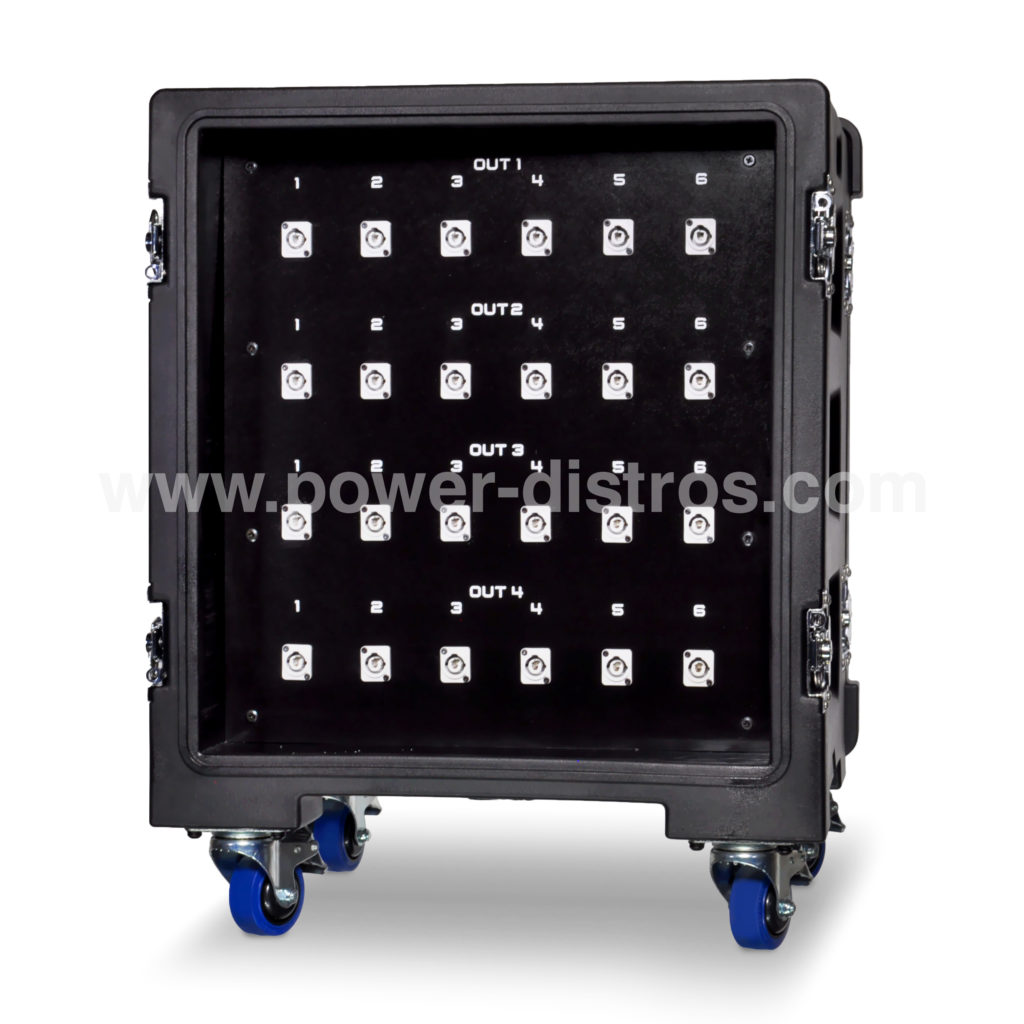

  • MD125-270MCBMD125-270MCB

    MD125-270MCB

    SKU: MD125-270MCB CATEGORY: 125A Main Distribution Boxes
    INPUT
    PlugsBreakers

    1 x 125A CEE 400V 5 Pin Panel Plug

    1 x 125A MCB 4P

    OUTPUT
    SocketsBreakers

    24 x 20A PowerCon Panel Socket

    24 x 16A MCB 1P

    CASE

    12U High-density Polyethylene Case 610x580x764mm
    Stackable
    Integrated Handles and Wheels
    IP65 with lids closed

    FEATURES

    Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

    Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Yellow

    Protection Level: MCB

    Additional Information: Made of Premium Components

    Download MD125-270MCB Technical Sheet

  • MD125-270RCDMD125-270RCD

    MD125-270RCD

    SKU: MD125-270RCD CATEGORY: 125A Main Distribution Boxes
    INPUT
    PlugsBreakers

    1 x 125A CEE 400V 5 Pin Panel Plug

    1 x 125A MCB 4P

    OUTPUT
    SocketsBreakers

    24 x 20A PowerCon Panel Socket

    4 x 40A RCD 4P
    24 x 16A MCB 1P

    1 x 13A UK Type 240V 3 Pin Panel Socket

    1 x 10A MCB 1P

    CASE

    12U High-density Polyethylene Case 610x580x764mm
    Stackable
    Integrated Handles and Wheels
    IP65 with lids closed

    FEATURES

    Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

    Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Yellow

    Protection Level: RCD

    Additional Information: Made of Premium Components

    Download MD125-270RCD Technical Sheet

  • MD125-270RCBOMD125-270RCBO

    MD125-270RCBO

    SKU: MD125-270RCBO CATEGORY: 125A Main Distribution Boxes
    INPUT
    PlugsBreakers

    1 x 125A CEE 400V 5 Pin Panel Plug

    1 x 125A MCB 4P

    OUTPUT
    SocketsBreakers

    24 x 20A PowerCon Panel Socket

    24 x 16A RCBO

    CASE

    12U High-density Polyethylene Case 610x580x764mm
    Stackable
    Integrated Handles and Wheels
    IP65 with lids closed

    FEATURES

    Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

    Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Yellow

    Protection Level: RCBO

    Additional Information: Made of Premium Components

    Download MD125-270RCBO Technical Sheet
