MD400-130
-

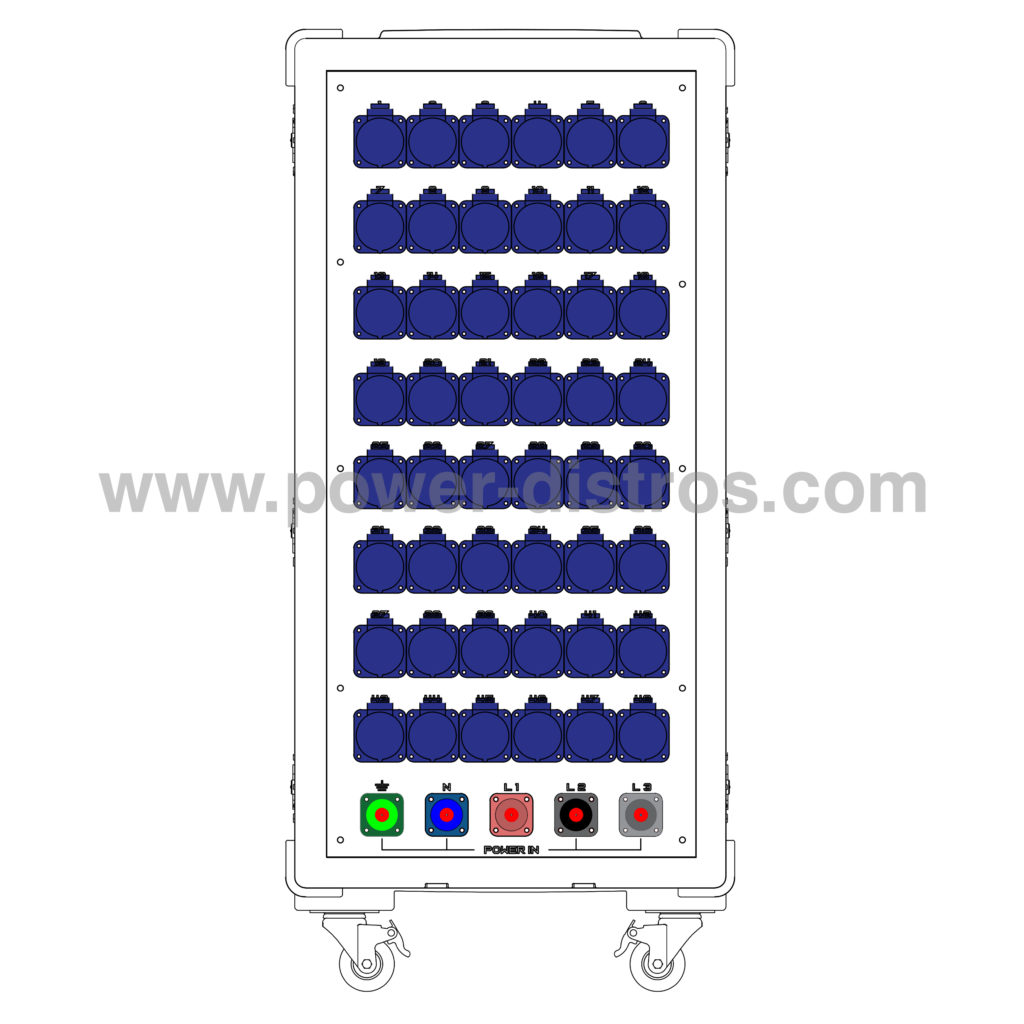

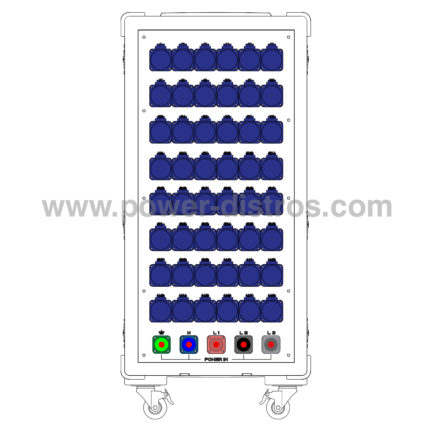

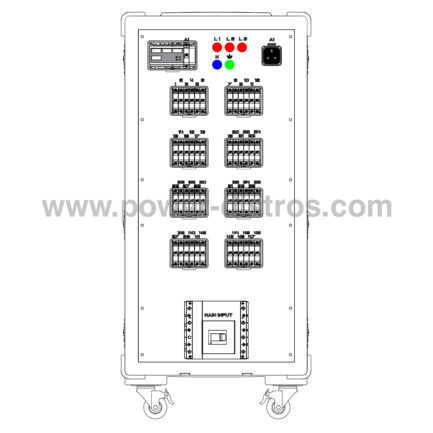

MD400-130MCB
Download MD400-130MCB Technical SheetINPUT Plugs Breakers 1 x Power Lock Set 500A Single Pole 3 Phase
1 x 400A Main MCCB 4P
OUTPUT Sockets Breakers 48 x 32A CEE 240V 3 Pin Flanged Socket
48 x 32A MCB 1P
1 x 13A UK Type 240V 3 Pin Panel Socket
1 x 10A MCB 1P
CASE 24U Flight Case
Integrated Handles and WheelsFEATURES Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency
Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green
Protection Level: MCB
Additional Information: Made of Premium Components
-

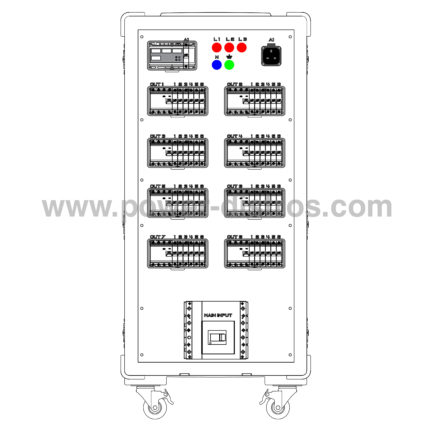

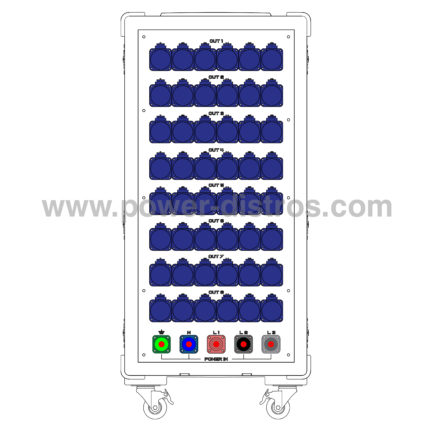

MD400-130RCD
Download MD400-130RCD Technical SheetINPUT Plugs Breakers 1 x Power Lock Set 500A Single Pole 3 Phase
1 x 400A Main MCCB 4P
OUTPUT Sockets Breakers 48 x 32A CEE 240V 3 Pin Flanged Socket
8 x 63A RCD 4P
48 x 32A MCB 1P1 x 13A UK Type 240V 3 Pin Panel Socket
1 x 10A MCB 1P
CASE 24U Flight Case
Integrated Handles and WheelsFEATURES Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency
Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green
Protection Level: RCD
Additional Information: Made of Premium Components
-

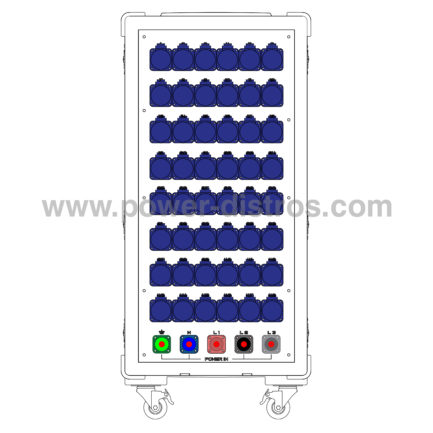

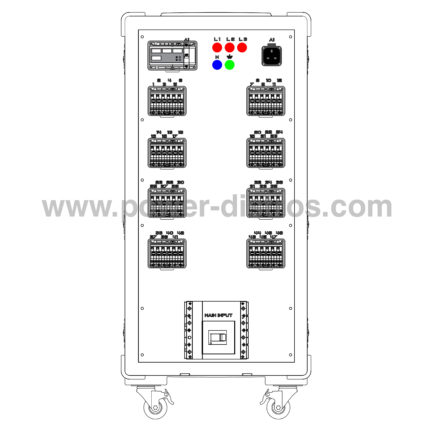

MD400-130RCBO
Download MD400-130RCBO Technical SheetINPUT Plugs Breakers 1 x Power Lock Set 500A Single Pole 3 Phase
1 x 400A Main MCCB 4P
OUTPUT Sockets Breakers 48 x 32A CEE 240V 3 Pin Flanged Socket
48 x 32A RCBO
1 x 13A UK Type 240V 3 Pin Panel Socket
1 x 10A MCB 1P
CASE 24U Flight Case
Integrated Handles and WheelsFEATURES Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency
Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green
Protection Level: RCBO
Additional Information: Made of Premium Components
