DBM32-013RCD

SKU: DBM32-013RCD CATEGORY:
Add to quote

Other Protection Levels available:

No protection
RCD
RCBO
Compare
INPUT
PlugsBreakers

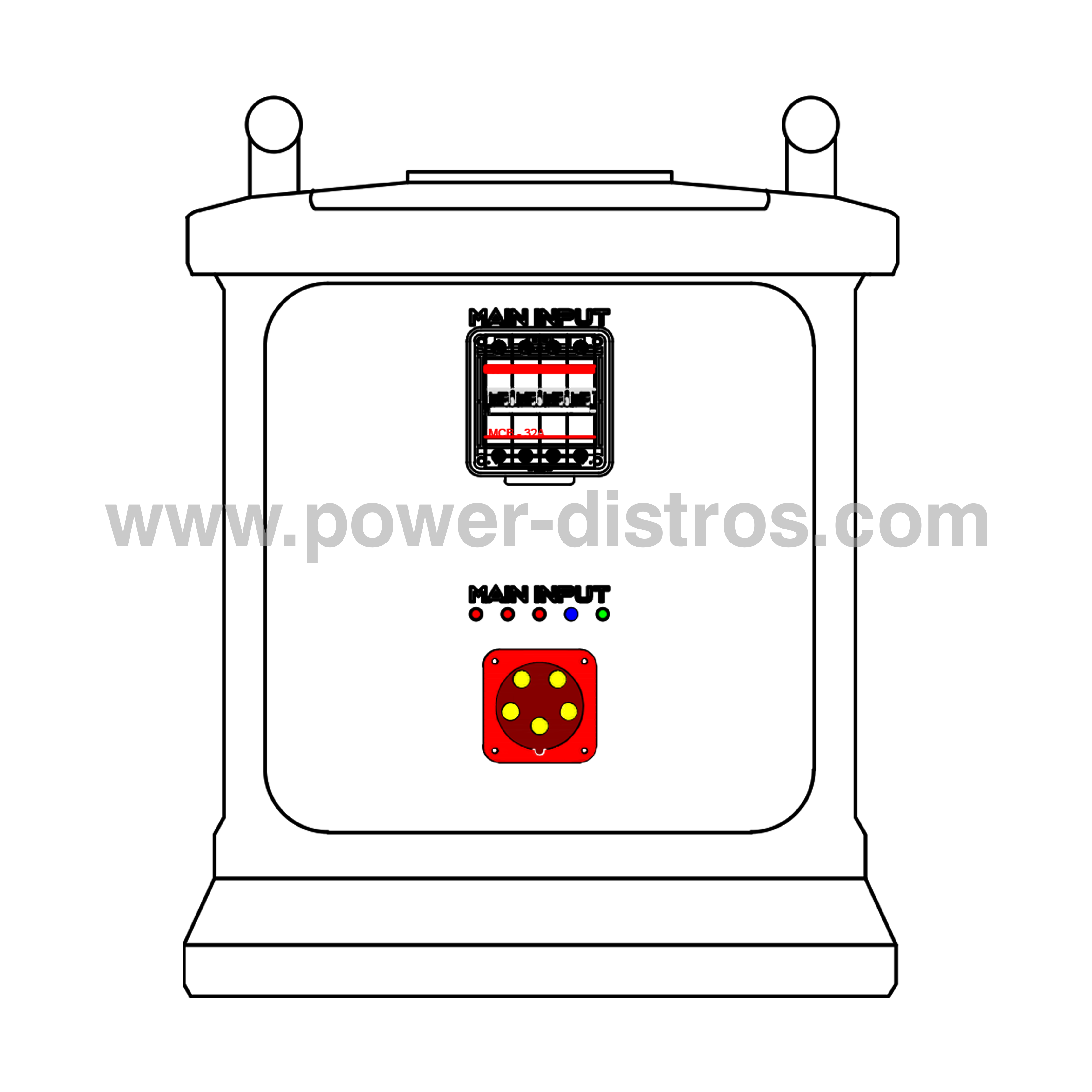

1 x PCE 32A CEE 400V 5 Pin Plug

1 x 32A MCB 4P

OUTPUT
SocketsBreakers

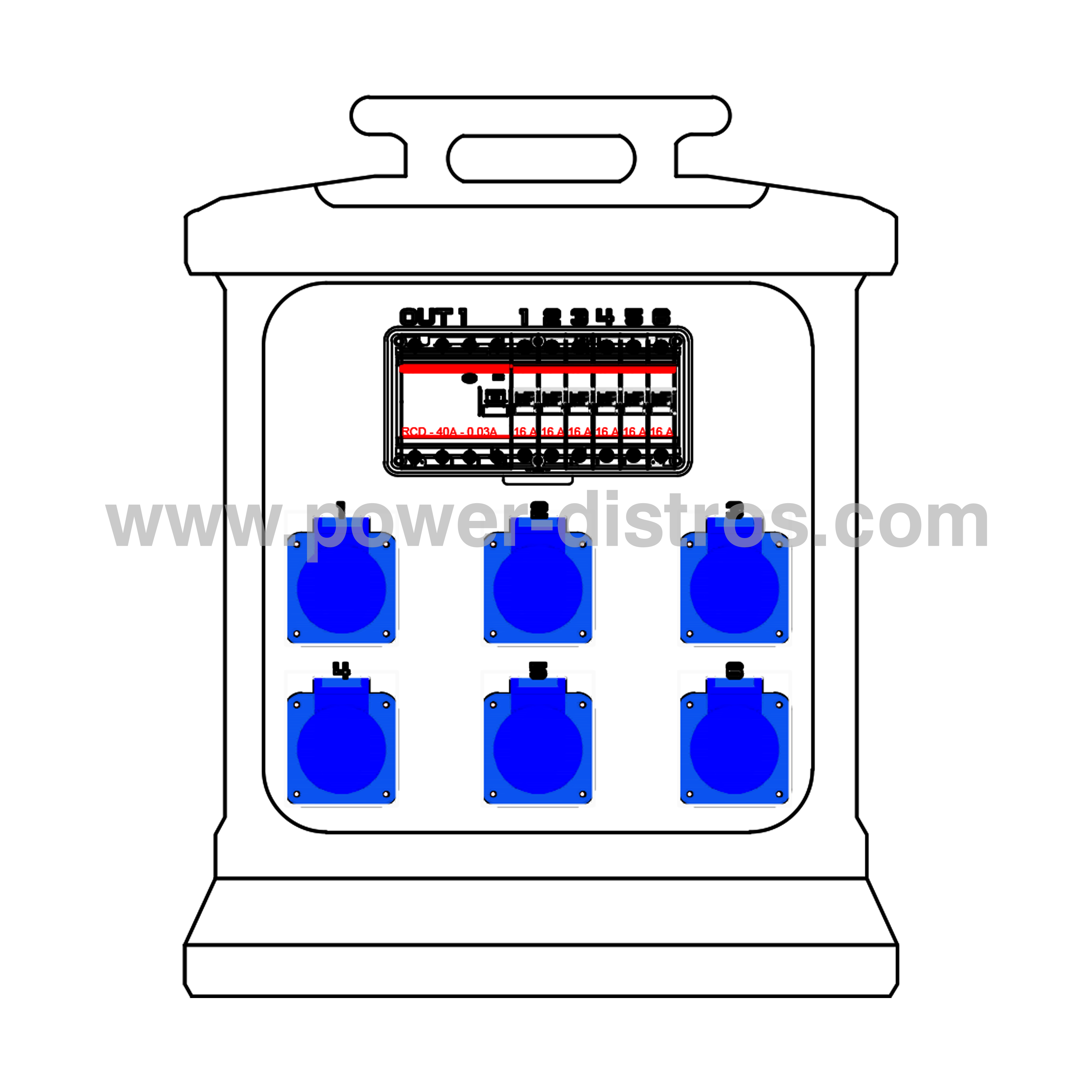

6 x PCE 16A CEE 240V 3 Pin Socket

1 x 40A RCD 4P
6 x 16A MCB 1P

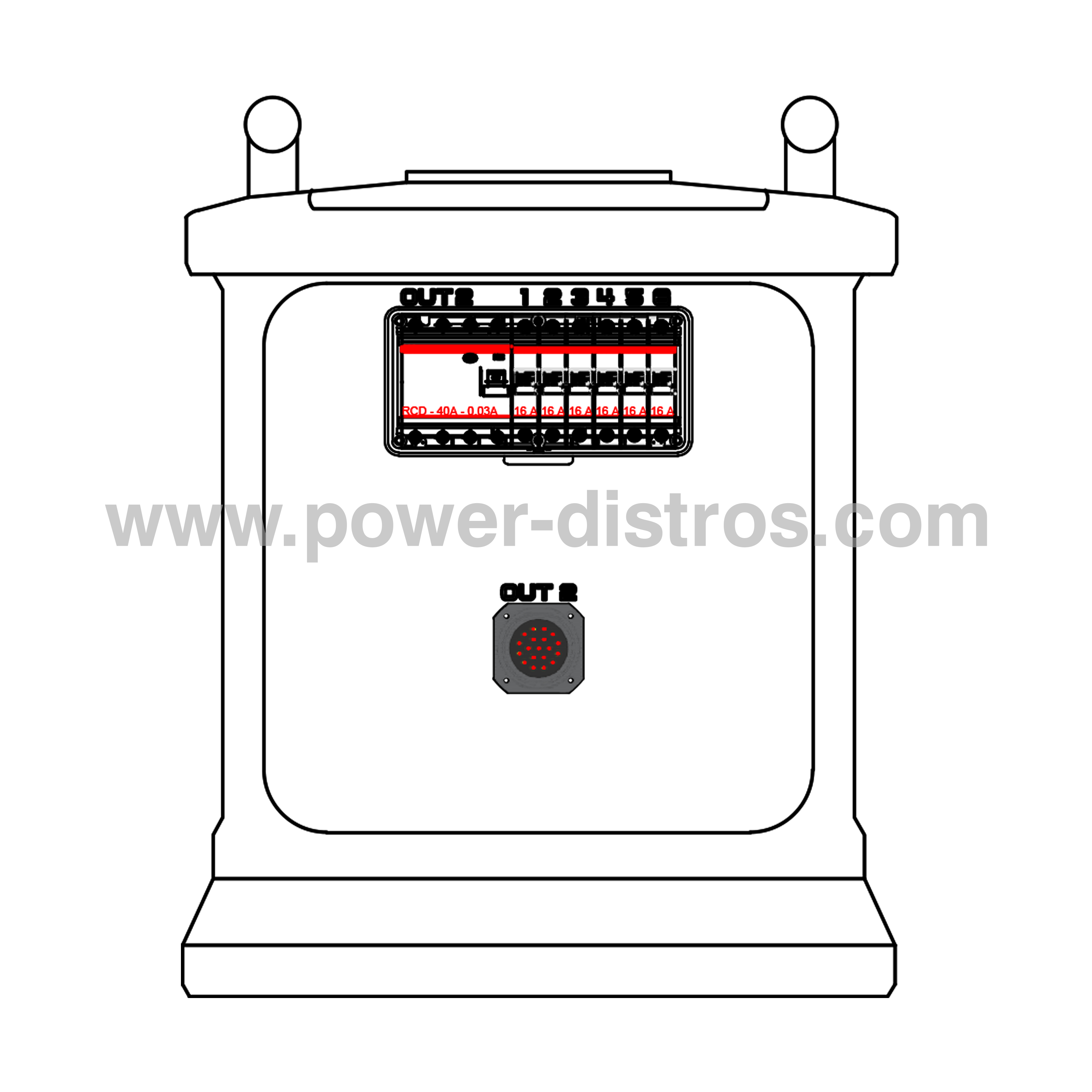

1 x 19 Pin Socket Connector

1 x 40A RCD 4P
6 x 16A MCB 1P

FEATURES

Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green

Protection Level: RCD

Additional Information: Made of Premium Components

Download DBM32-013RCD Technical Sheet

Add to quote

Distribution Box with 1 x 32A 400V 5P Input, 6 x 16A CEE 240V 3P and 1 x 19 Pin Connector Outputs – With breakers on input and outputs – RCD Protection
