DBM325P-062RCD

SKU: DBM325P-062RCD CATEGORY:
Add to quote

Other Protection Levels available:

No protection
RCD
RCBO
Compare
INPUT
PlugsBreakers

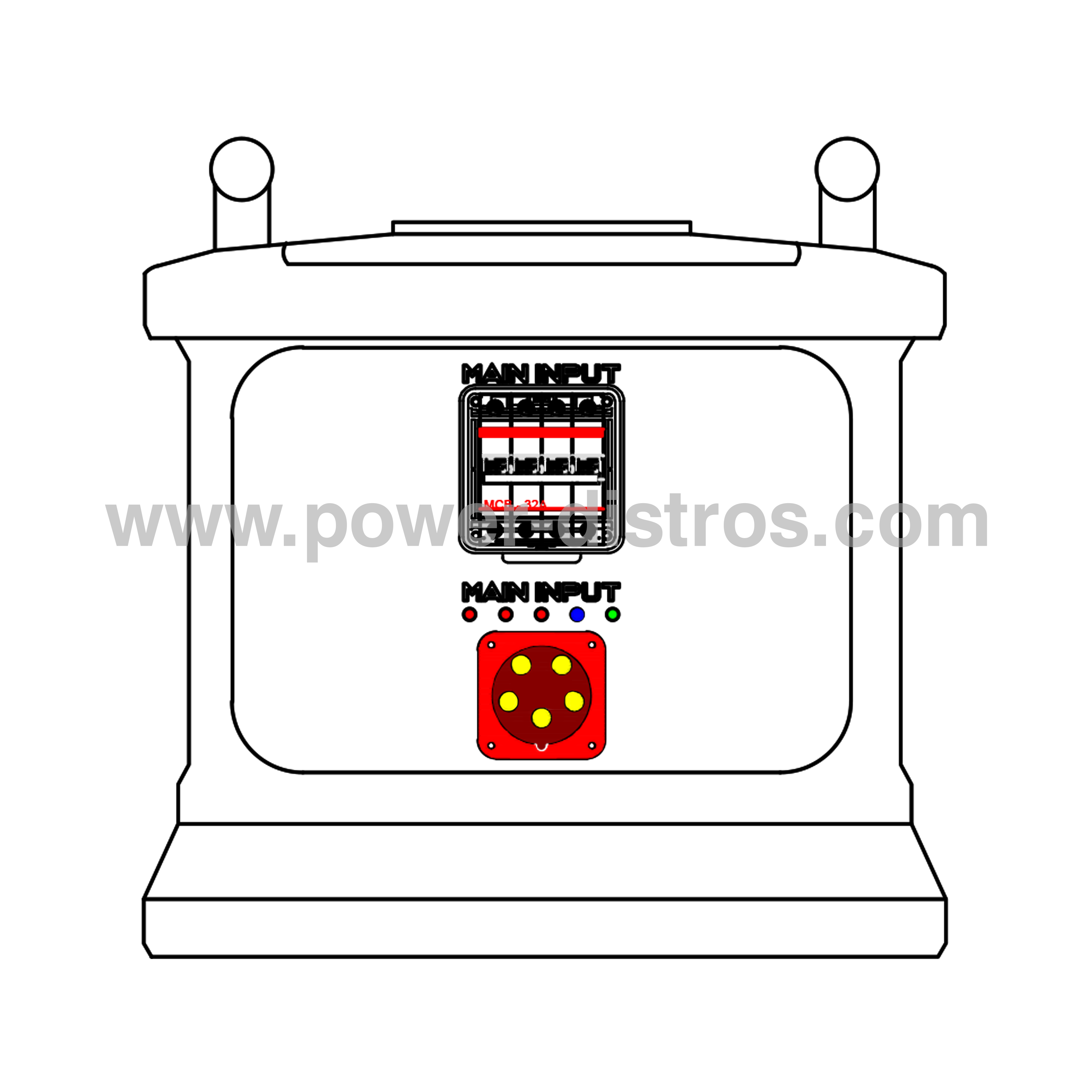

1 x PCE 32A CEE 400V 5 Pin Plug

1 x 32A MCB 4P

OUTPUT
SocketsBreakers

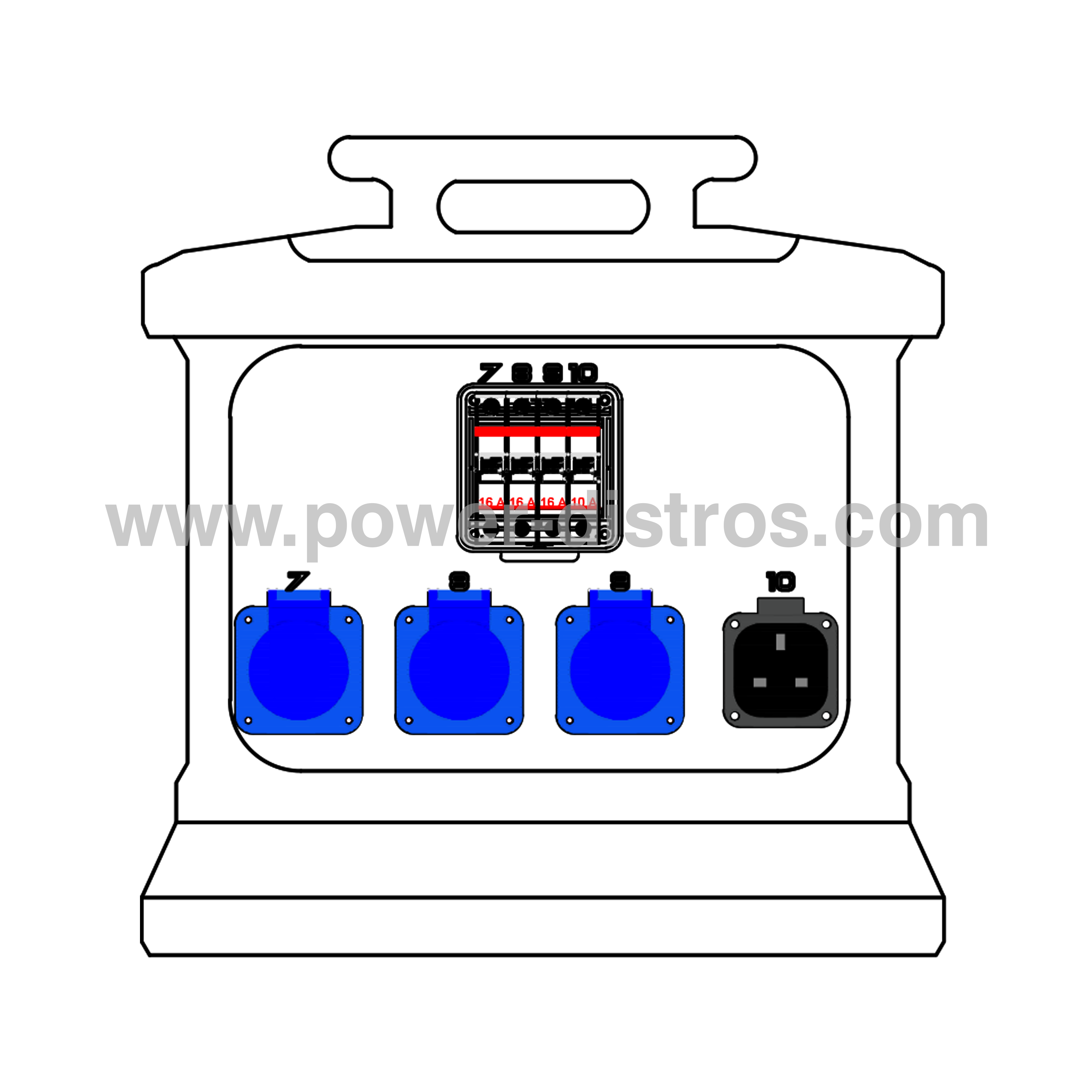

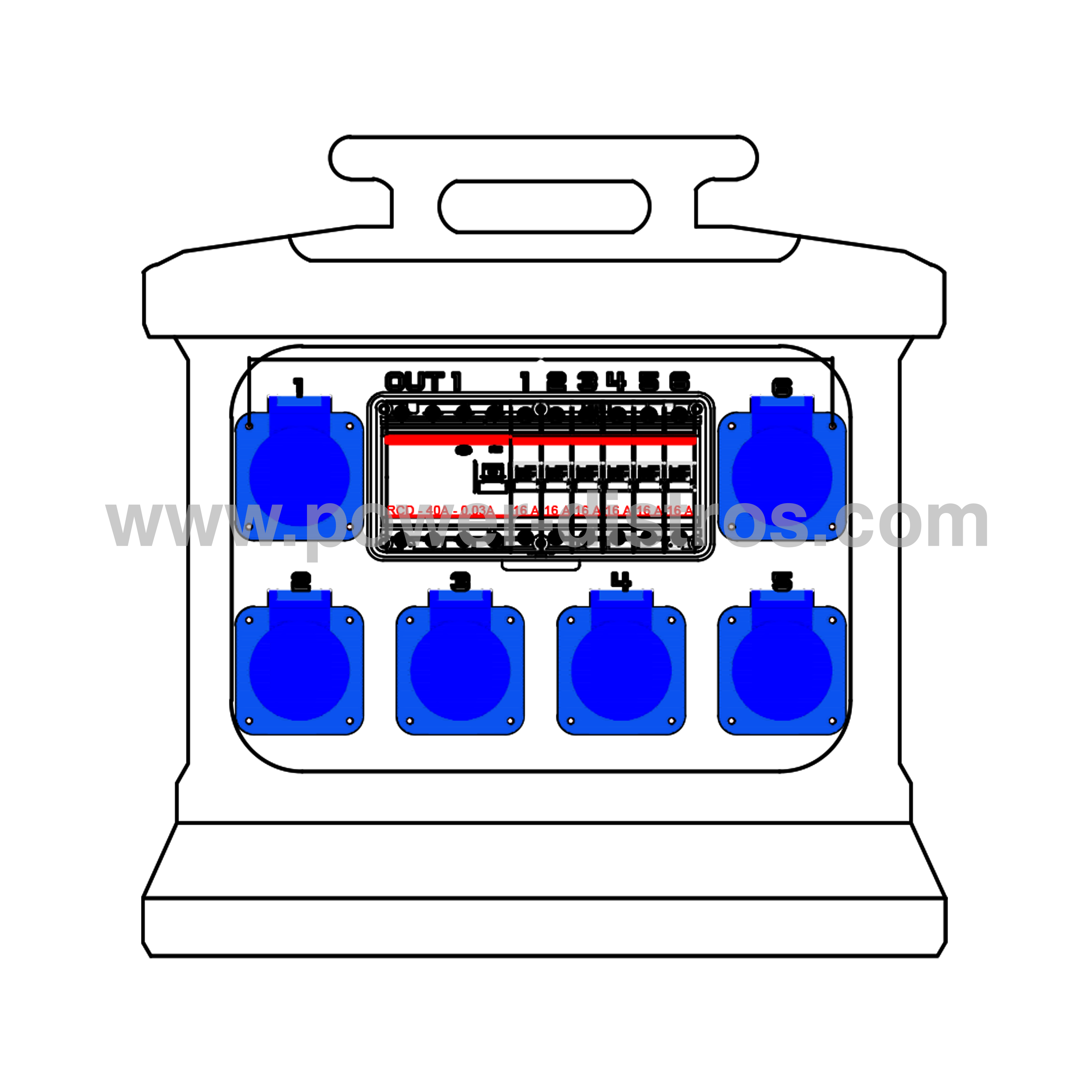

9 x PCE 16A CEE 240V 3 Pin Socket
1 x 13A UK Type 240V 3 Pin Socket

1 x 40A RCD 4P
1 x 10A MCB 1P
9 x 16A MCB 1P

FEATURES

Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green

Protection Level: RCD

Additional Information: Made of Premium Components

Download DBM325P-062RCD Technical Sheet

Add to quote

Distribution Box with 1 x 32A 400V 5P input, 9 x 16A 240V 3P and 1 x 13A UK Type 240V Outputs – With breakers on input and outputs – RCD and MCB Protection
