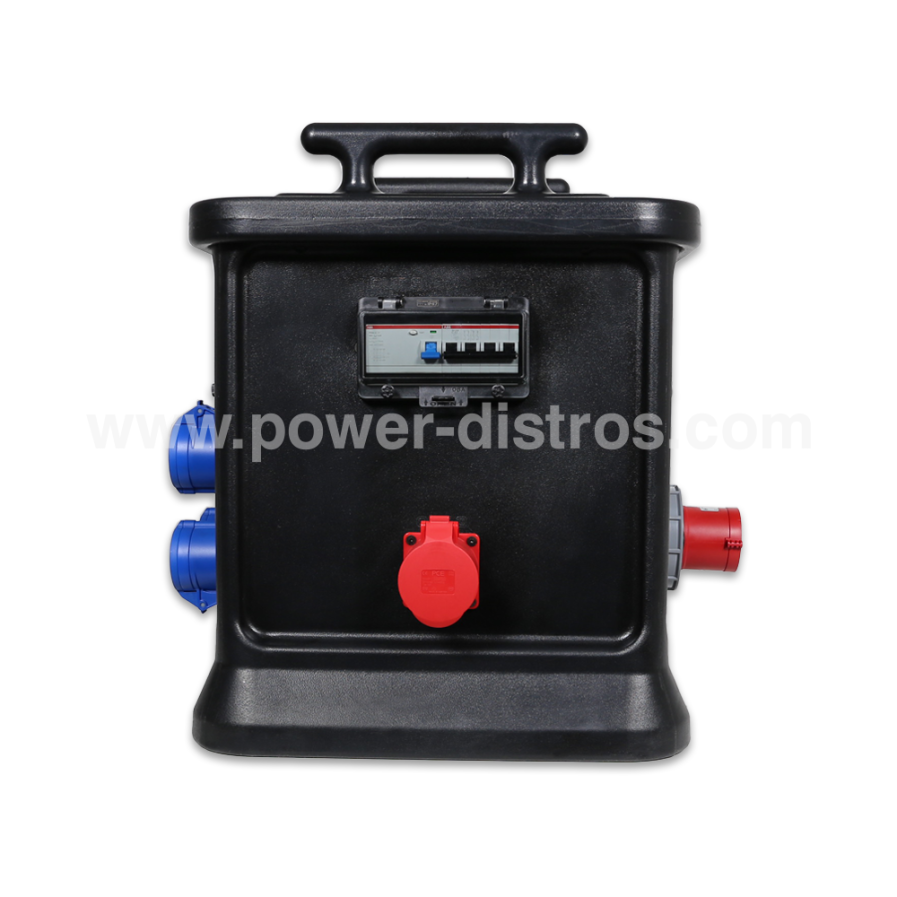

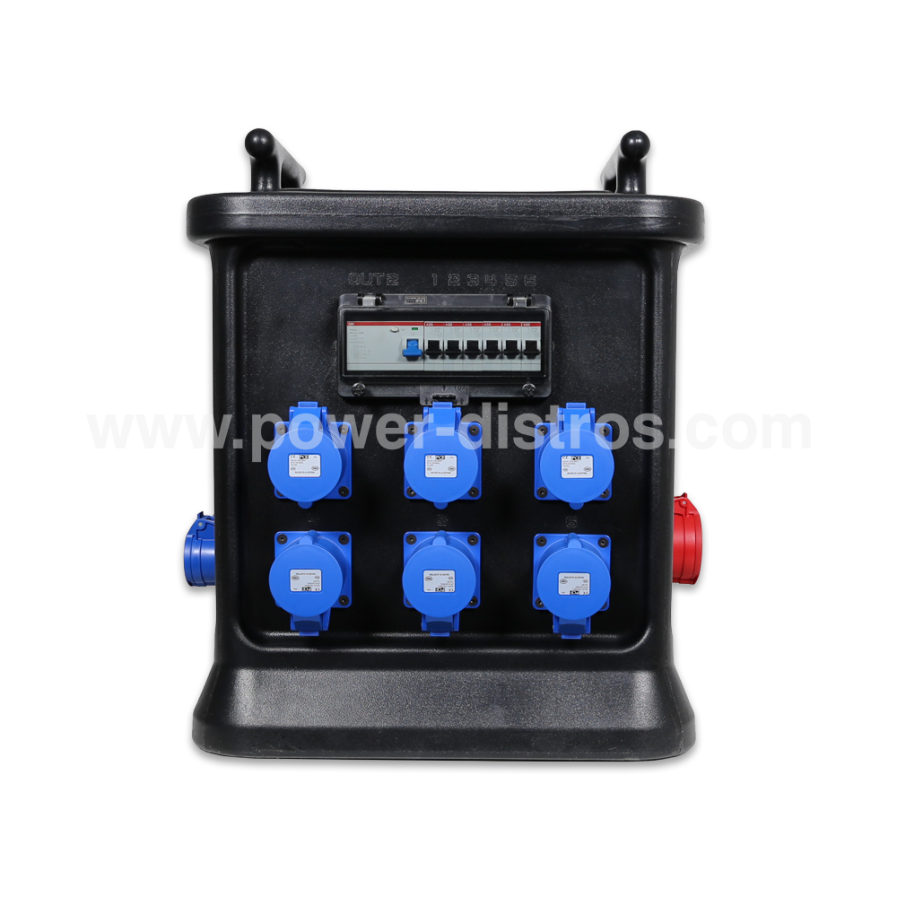

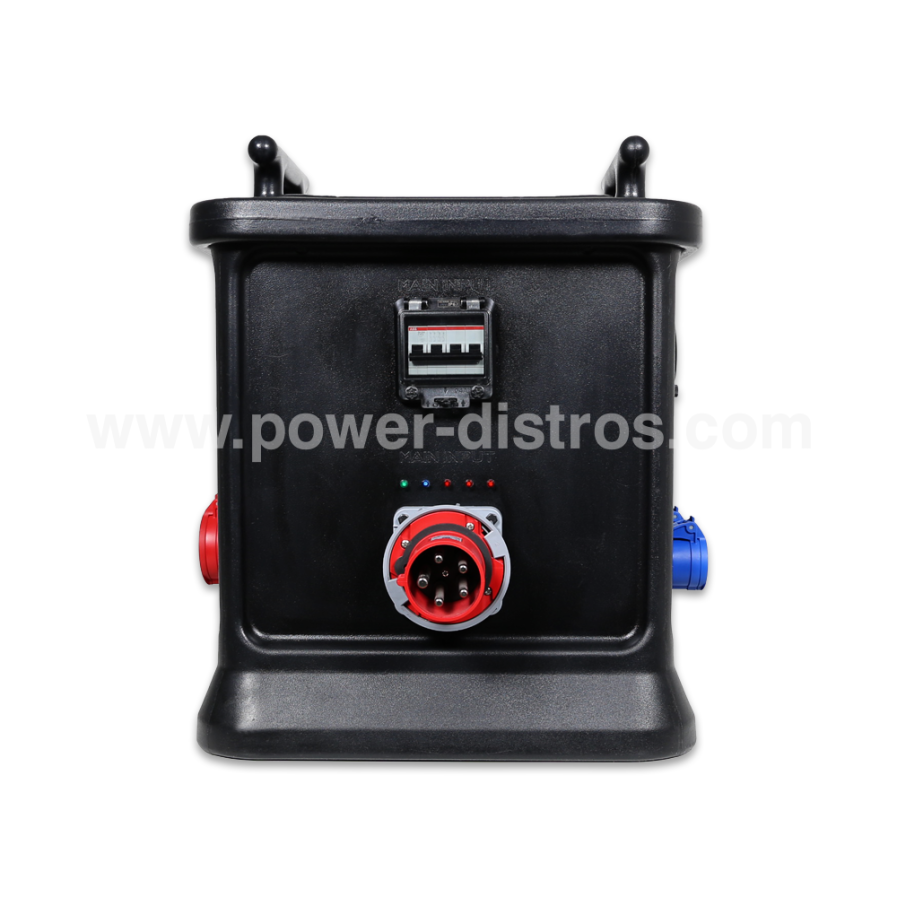

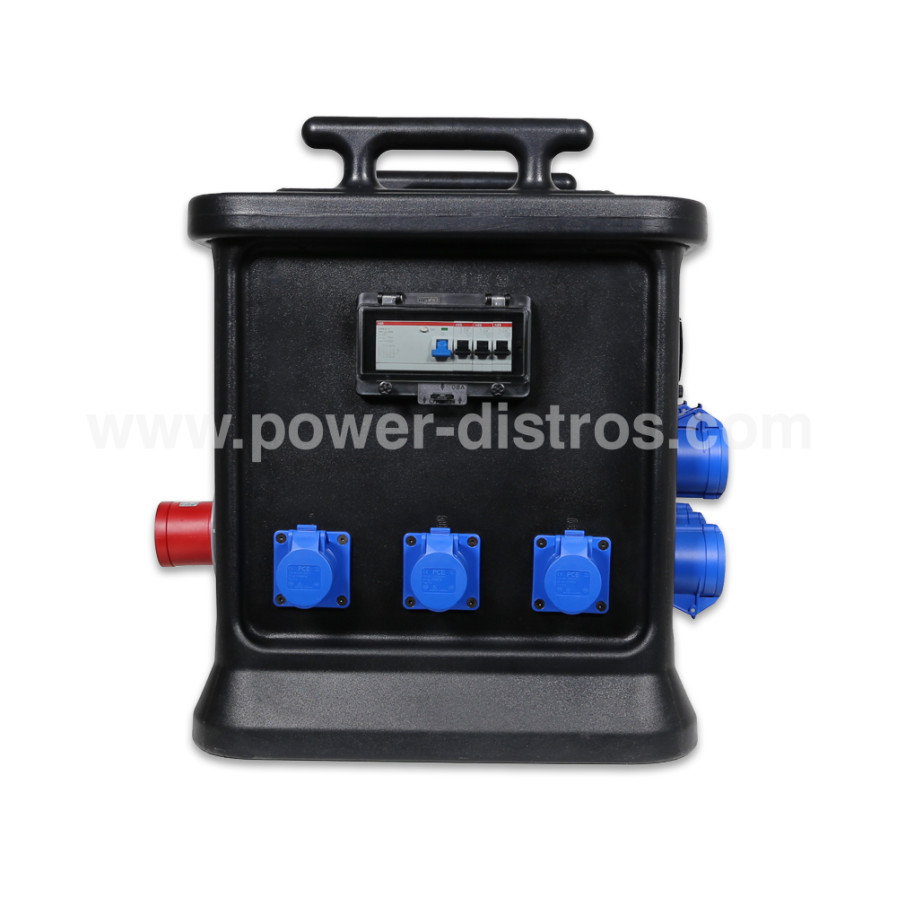

Distribution Box with 1 x 63A 400V 5P input, 3 x 16A CEE 230V 3P, 6 x 32A CEE 240V 3P and 1 x 32A CEE 400V 5P Outputs – With breakers on input and outputs – RCD Protection
DBM63-091RCD
| INPUT | |
|---|---|
| Plugs | Breakers |
1 x 63A CEE 400V 5 Pin Panel Plug | 1 x 63A MCB 3P |
| OUTPUT | |
|---|---|
| Sockets | Breakers |
3 x PCE 16A CEE 240V 3 Pin Socket | 1 x 40A RCD 4P |
6 x PCE 32A CEE 240V 3 Pin Socket | 1 x 63A RCD 4P |
1 x PCE 32A CEE 400V 5 Pin Socket | 1 x 40A RCD 4P |
| FEATURES | Pilot LED Lights: 3 x Red 1 x Blue Protection Level: RCD Additional Information: Made of Premium Components |
|---|
