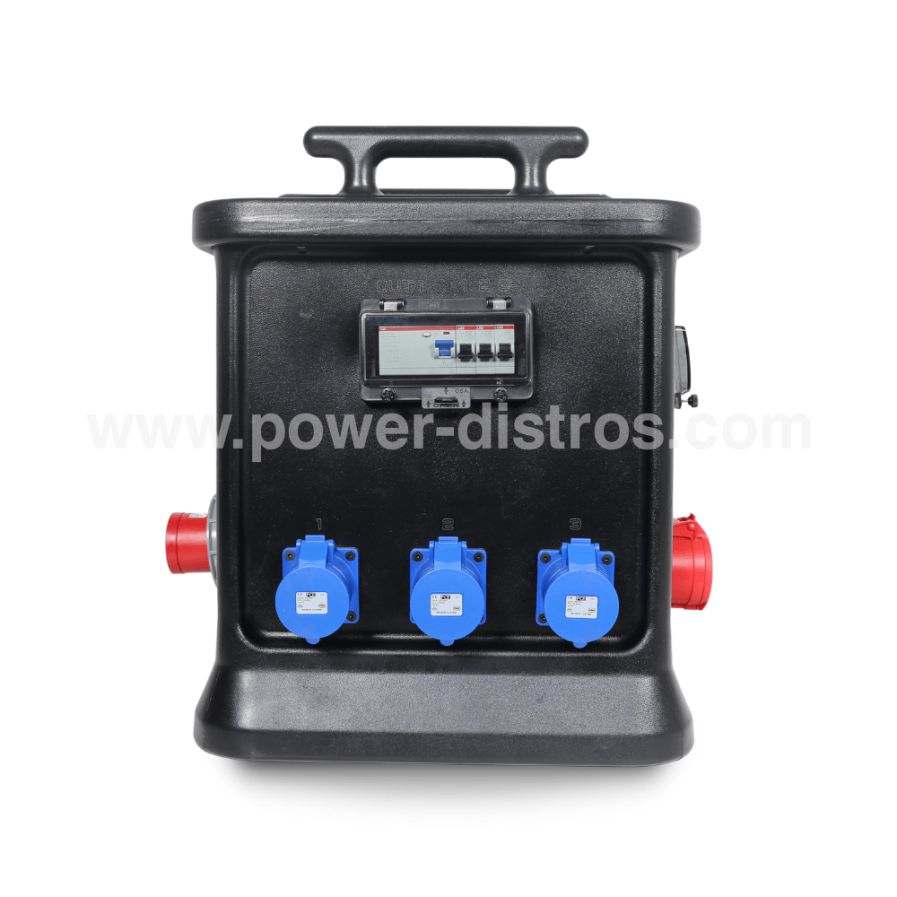

Distribution Box with 1 x 63A 400V 5P input, 2 x 32A CEE 400V 5P, 3 x 32A CEE 240V 3P and 1 x 63A CEE 400V 5P Outputs – With breakers on input and outputs – RCD and MCB Protection.
DBM63-151RCD
INPUT | |
---|---|
Plugs | Breakers |

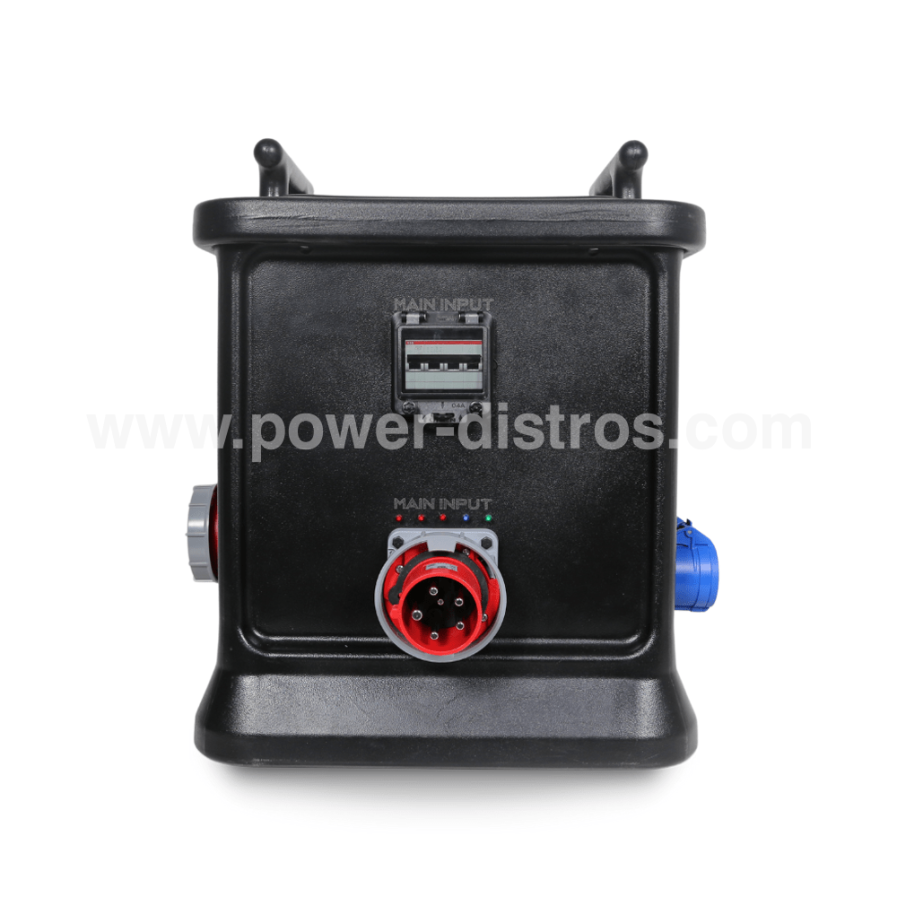

1 x 63A CEE 400V 5 Pin Panel Plug | 1 x 63A MCB 4P |
OUTPUT | |
---|---|
Sockets | Breakers |

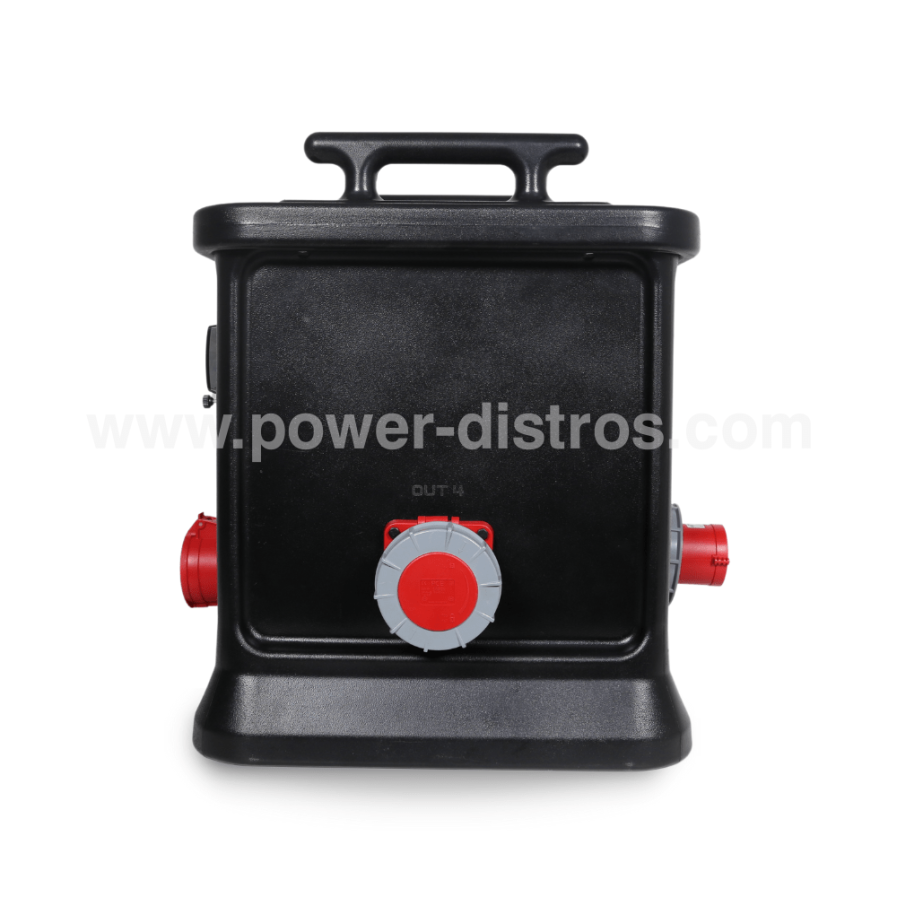

1 x 63A CEE 400V 5 Pin Flanged Socket | 0 x 63A MCB 4P |

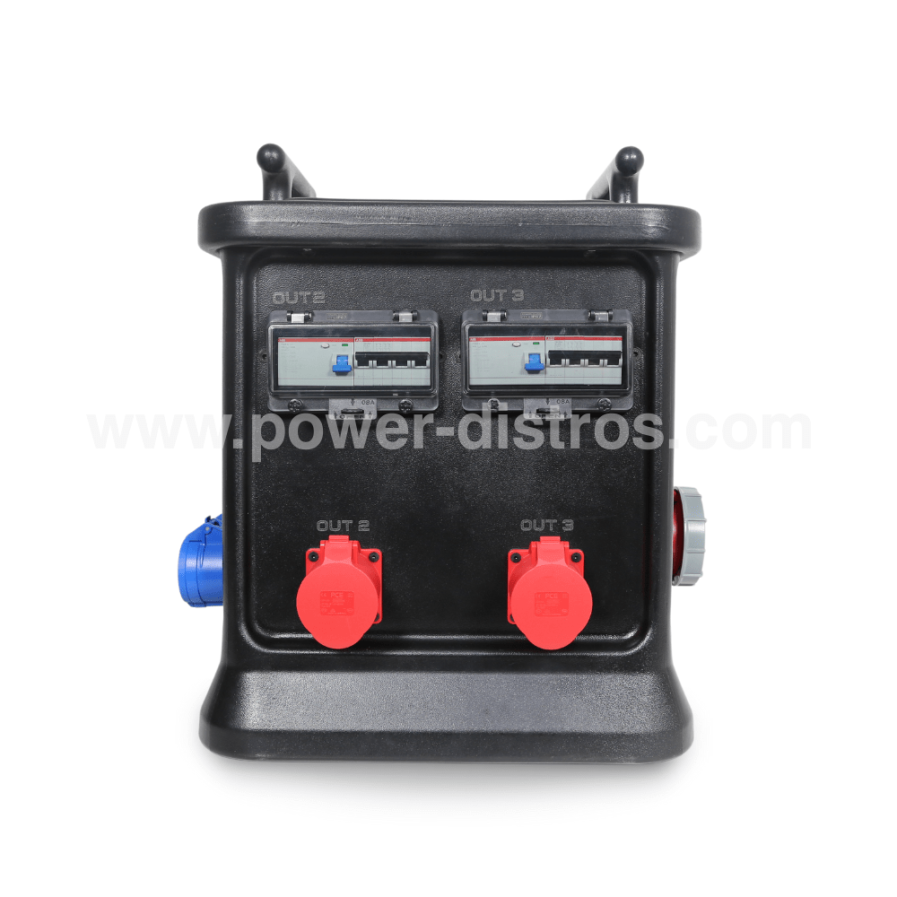

3 x 32A CEE 240V 3 Pin Flanged Socket | 1 x 40A RCD 4P |
1 x 32A CEE 400V 5 Pin Flanged Socket | 2 x 40A RCD 4P |
FEATURES | Protection Level: No protection Additional Information: Made of Premium Components |
---|
