DBM63-322RCD

SKU: DBM63-322RCD CATEGORY:
Add to quote
INPUT
PlugsBreakers

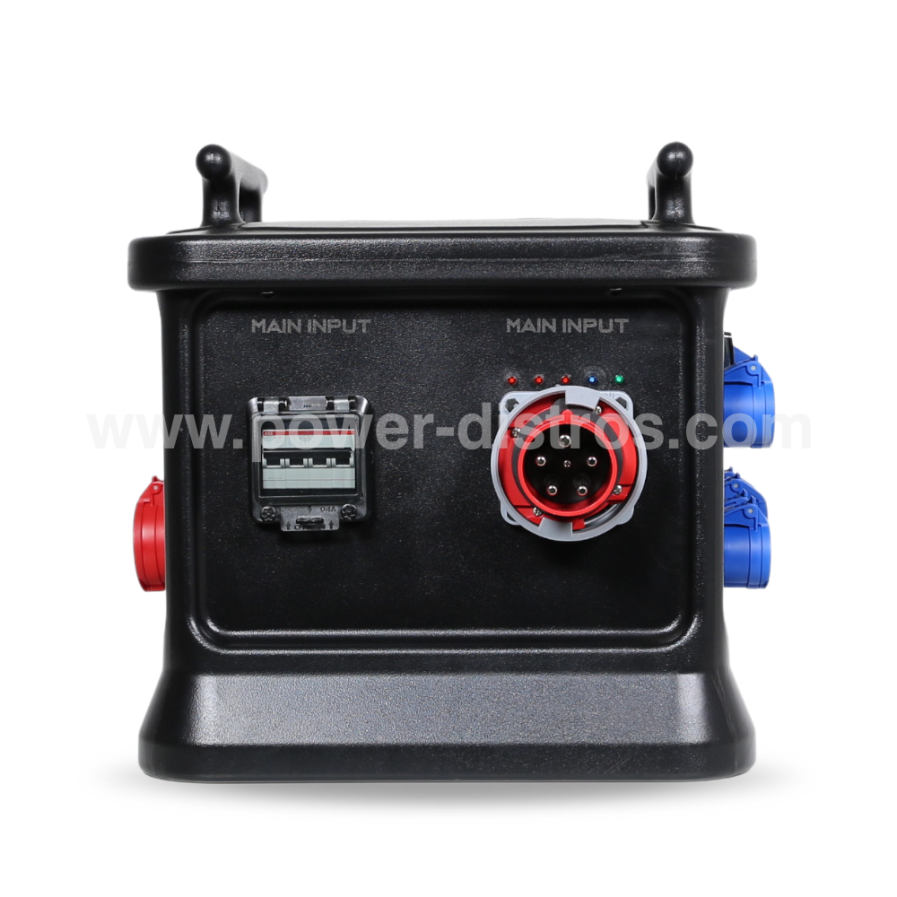

1 x 63A CEE 400V 5 Pin Panel Plug

1 x 63A MCB 4P

OUTPUT
SocketsBreakers

3 x 16A CEE 240V 3 Pin Flanged Socket
3 x 32A CEE 240V 3 Pin Flanged Socket

1 x 63A RCD 4P
3 x 16A MCB 1P
3 x 32A MCB 1P

3 x 32A CEE 400V 5 Pin Flanged Socket

3 x 40A RCD 4P
3 x 32A MCB 4P

FEATURES

Protection Level: RCD

Additional Information: Made of Premium Components

Download DBM63-322RCD Technical Sheet

Add to quote

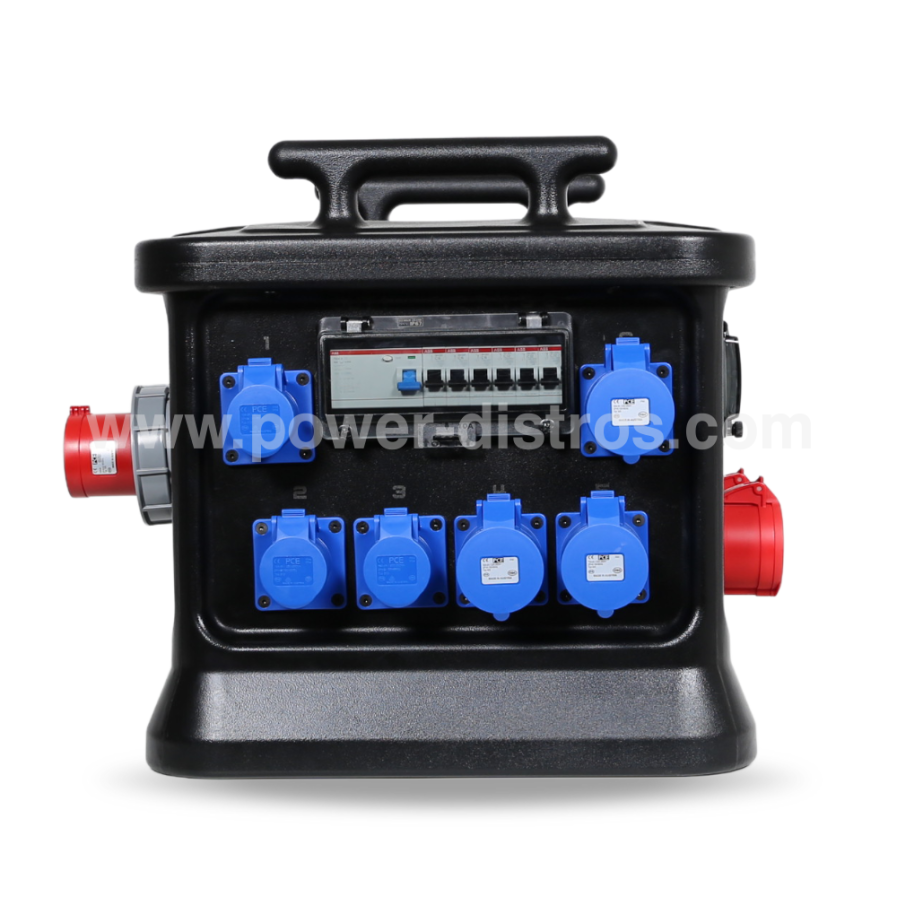

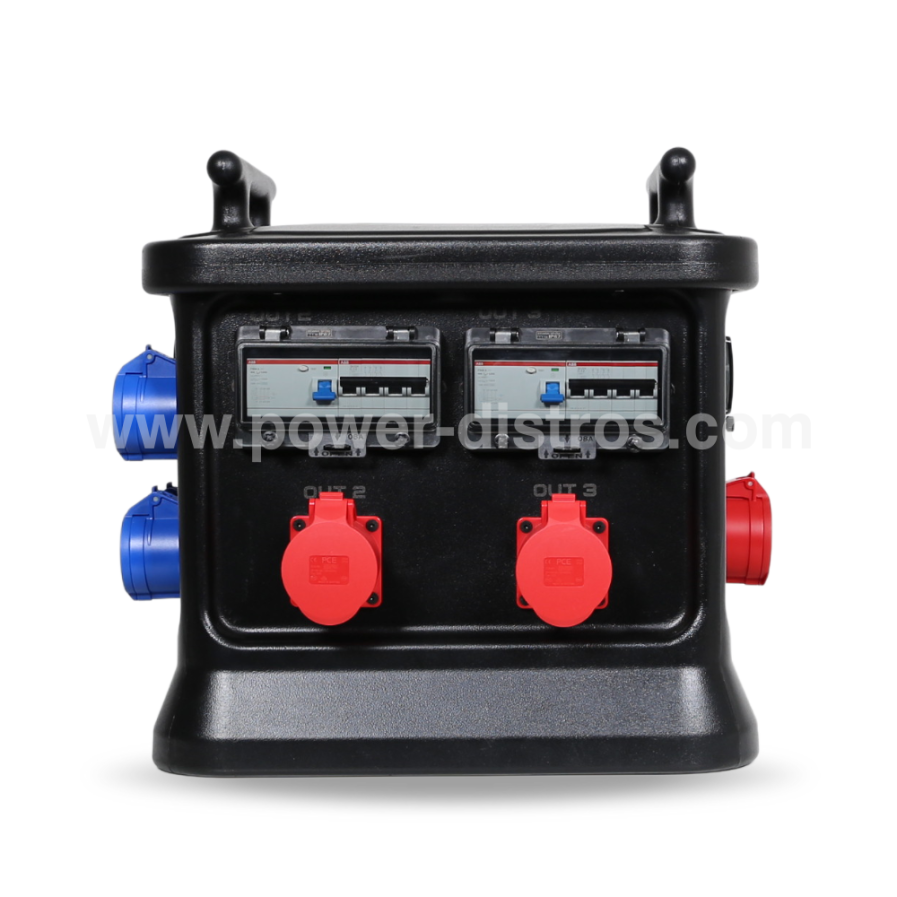

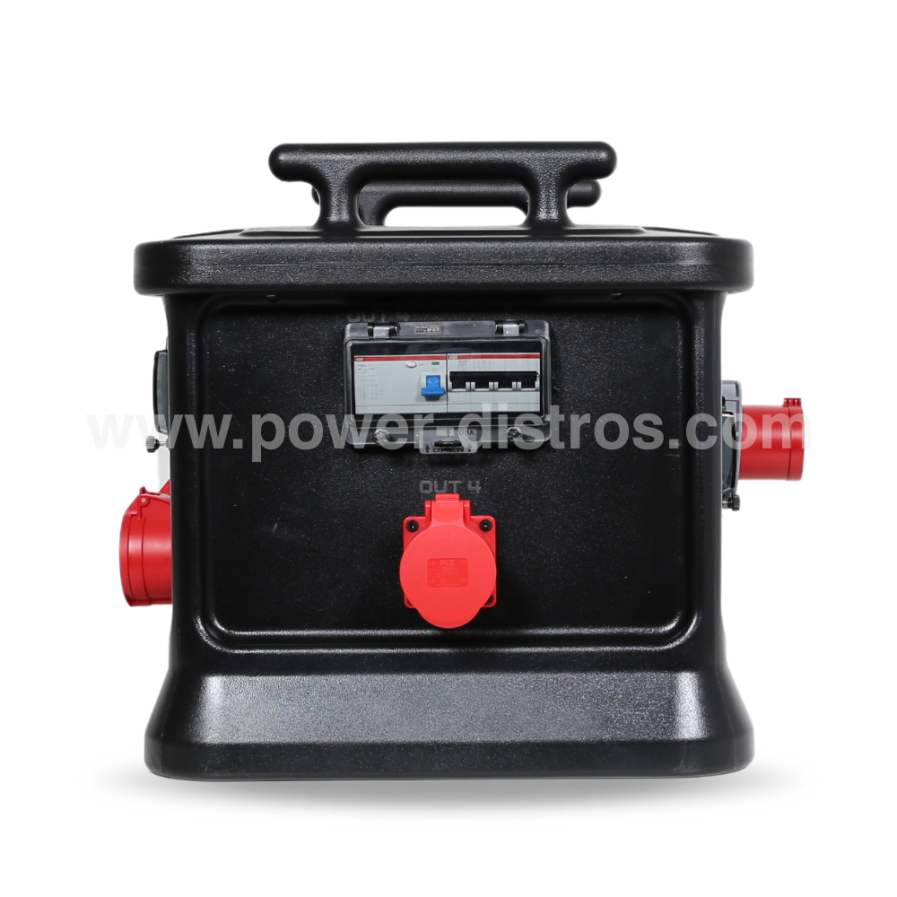

Distribution Box with 1 x 63A CEE 400V 5P input, 3 x 16A CEE 240V 3P, 3 x 32A CEE 240V 3P  and 3 x 16A 1P MCB 3 x 32A 1P MCB 3 x 32A CEE 400V 5P outputs. With breakers on inputs and outputs.
