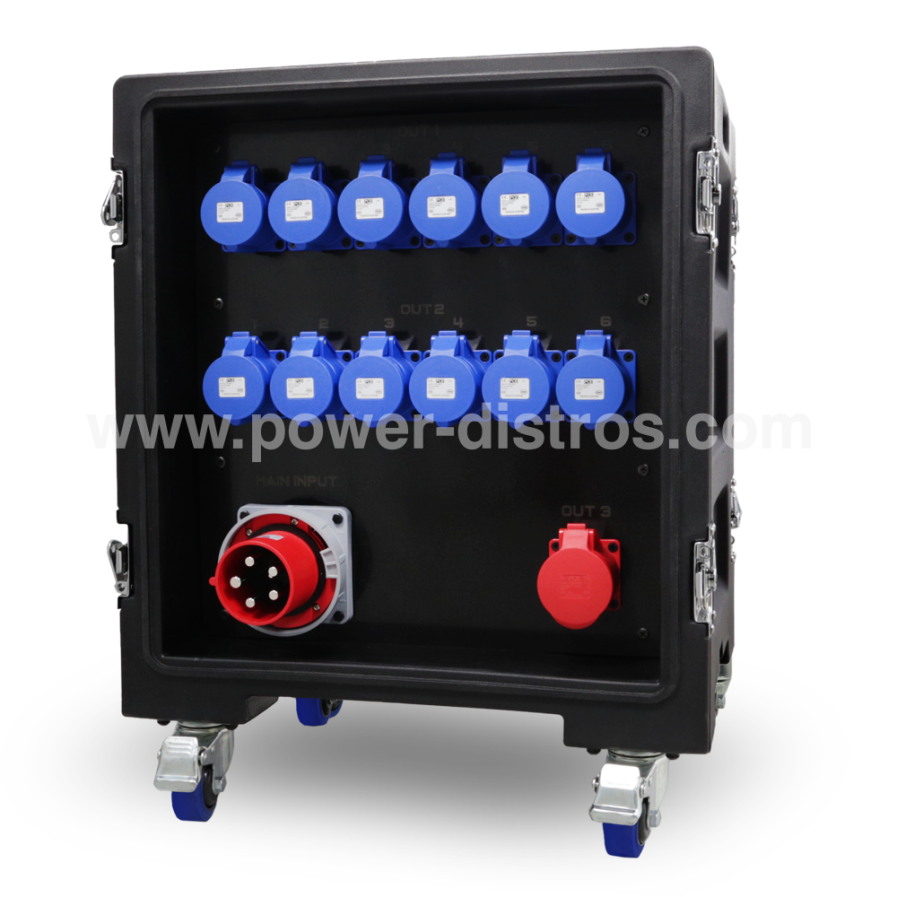

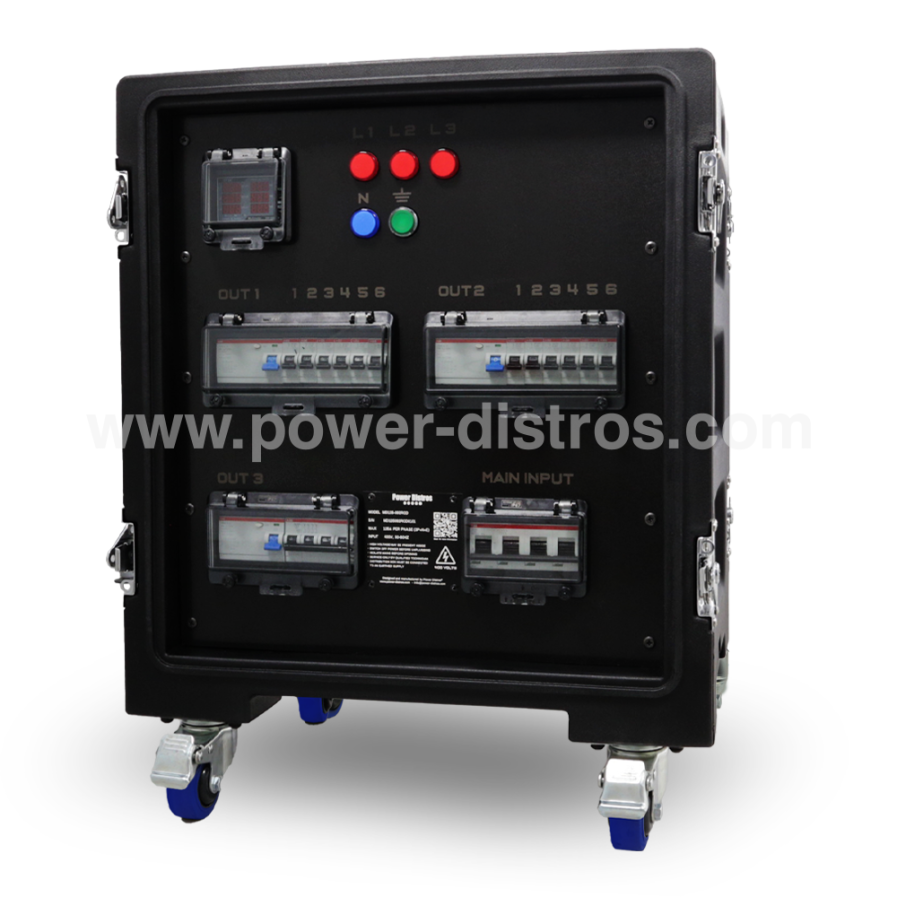

MD125-092RCD

SKU: MD125-092RCD CATEGORIES: , ,
Add to quote
INPUT
PlugsBreakers

1 x 125A CEE 400V 5 Pin Panel Plug

1 x 125A MCB 4P

OUTPUT
SocketsBreakers

12 x 32A CEE 240V 3 Pin Flanged Socket

2 x 63A RCD 4P
12 x 32A MCB 1P

1 x 32A CEE 400V 5 Pin Flanged Socket

1 x 40A RCD 4P
1 x 32A MCB 4P

CASE

12U High-density Polyethylene Case 610x580x764mm
Stackable
Integrated Handles and Wheels
IP65 with lids closed

FEATURES

Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green

Protection Level: RCD

Additional Information: Made of Premium Components

Download MD125-092RCD Technical Sheet

Main Distribution Box with 1 x 125A CEE 400V 5P
