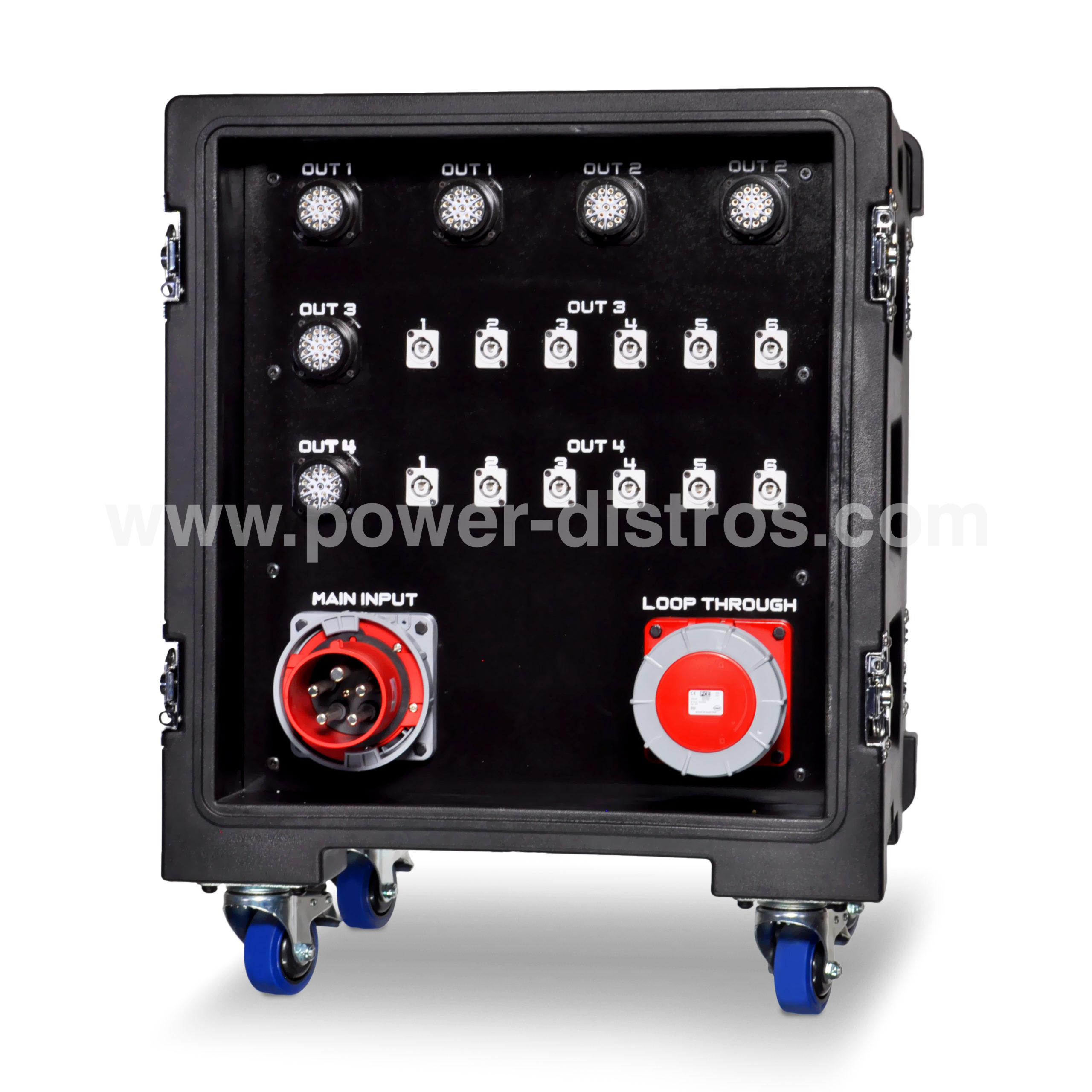

MD125-280RCBO

SKU: MD125-280RCBO CATEGORY: 125A Main Distribution Boxes
INPUT
PlugsBreakers

1 x 125A CEE 400V 5 Pin Panel Plug

1 x 125A MCB 4P

OUTPUT
SocketsBreakers

2 x 19 Pin Panel Socket

6 x 16A RCBO

2 x 19 Pin Panel Socket

6 x 16A RCBO

1 x 19 Pin Panel Socket
6 x 20A SHUCKO Panel Socket

6 x 16A RCBO

1 x 19 Pin Panel Socket
6 x 20A SHUCKO Panel Socket

6 x 16A RCBO

125A CEE 400V 5 Pin Through Output

CASE

12U High-density Polyethylene Case 610x580x764mm
Stackable
Integrated Handles and Wheels
IP65 with lids closed

FEATURES

Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green

Protection Level: RCBO

Additional Information: Made of Premium Components

Download MD125-280RCBO Technical Sheet
