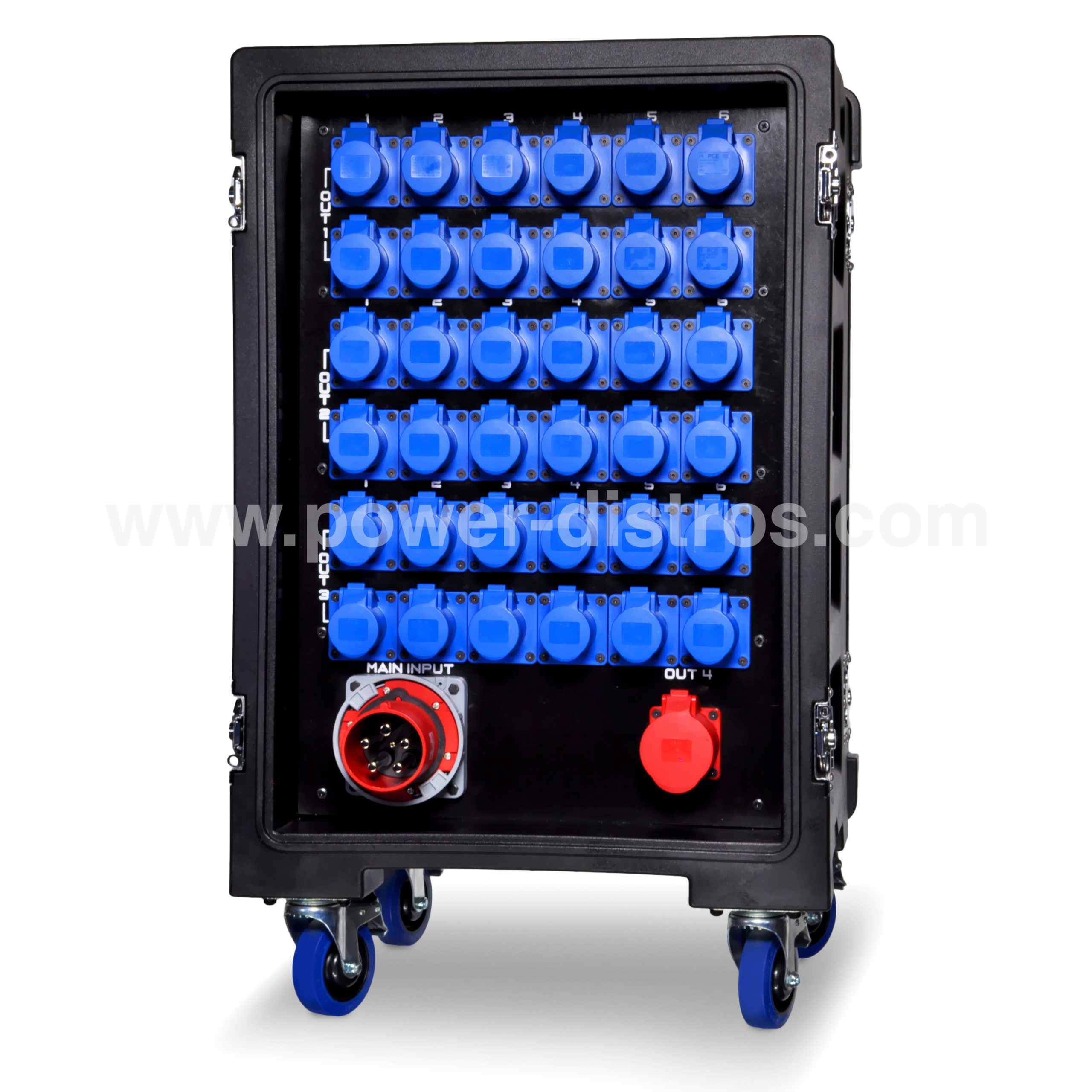

MD125-310RCBO 125A Main Distribution Boxes 125A CEE 400V 5P 16A CEE 240V 3P 16A CEE 240V 3P 16A CEE 240V 3P 32A CEE 400V 5P 13A UK Type 240V

MD125-310RCBO-A

MD125-310RCBO-B

MD125-310RCBO

SKU: MD125-310RCBO CATEGORIES: 125A Main Distribution Boxes, Main Distribution Boxes, MD125-310

Other Protection Levels available:

MCB

RCD

INPUT
Plugs	Breakers
1 x 125A CEE 400V 5 Pin Panel Plug	1 x 125A MCB 4P

OUTPUT
Sockets	Breakers
12 x 16A CEE 240V 3 Pin Flanged Socket	6 x 16A RCBO
12 x 16A CEE 240V 3 Pin Flanged Socket	6 x 16A RCBO
12 x 16A CEE 240V 3 Pin Flanged Socket	6 x 16A RCBO
1 x 32A CEE 400V 5 Pin Flanged Socket	1 x 40A RCD 4P 1 x 32A MCB 4P
1 x 13A UK Type 240V 3 Pin Panel Socket	1 x 10A MCB 1P

CASE
16U High-density Polyethylene Case 610x580x950mm Stackable Integrated Handles and Wheels IP65 with lids closed

FEATURES

Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

Pilot LED Lights:

Protection Level: RCBO

Additional Information: Made of Premium Components

Download MD125-310RCBO Technical Sheet

×
