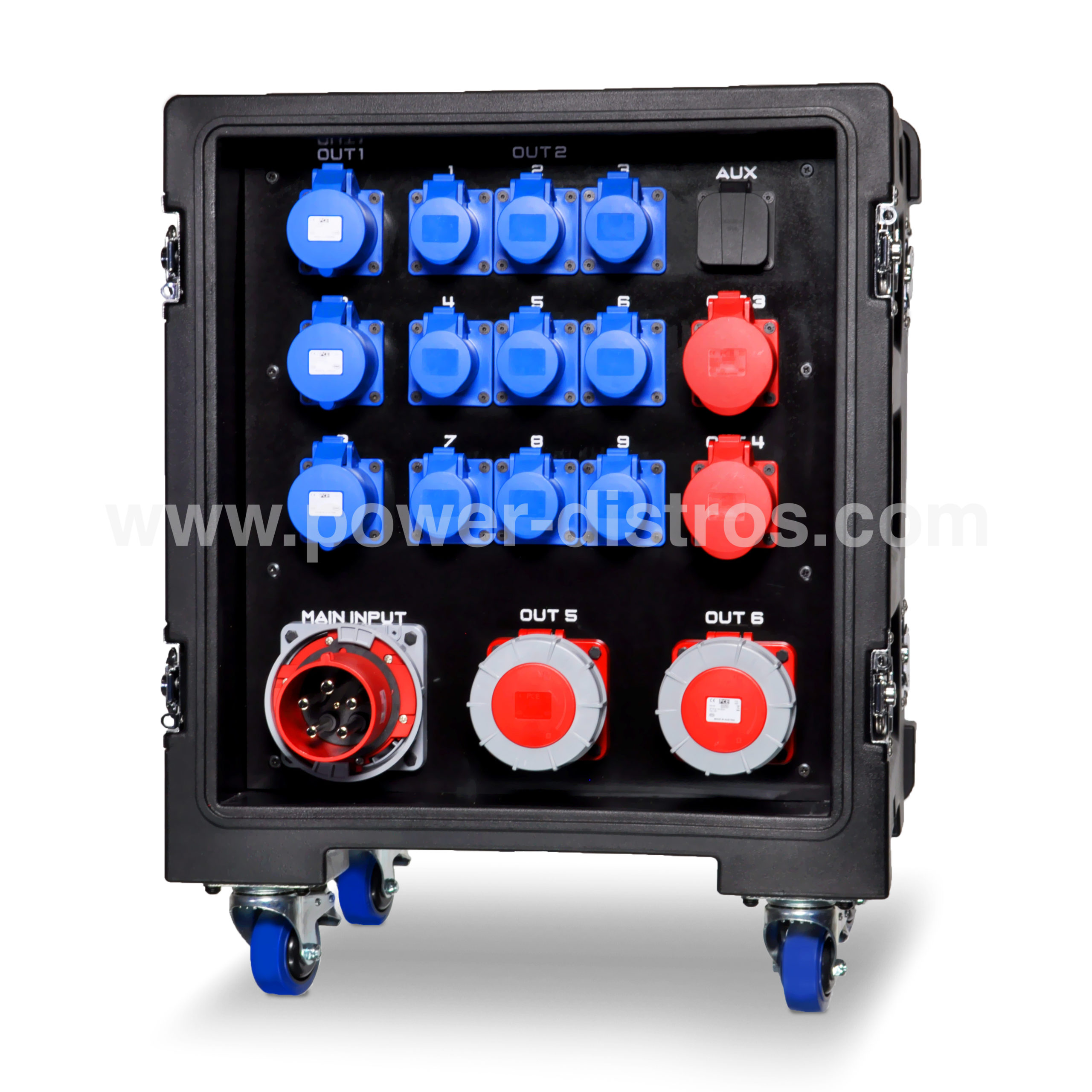

MD125-320MCB

SKU: MD125-320MCB CATEGORIES: , ,
Add to quote

Other Protection Levels available:

RCD
RCBO
Compare
INPUT
PlugsBreakers

1 x 125A CEE 400V 5 Pin Panel Plug

1 x 125A MCB 4P

OUTPUT
SocketsBreakers

9 x 16A CEE 240V 3 Pin Flanged Socket

9 x 16A MCB 1P

3 x 32A CEE 240V 3 Pin Flanged Socket

3 x 32A MCB 1P

2 x 32A CEE 400V 5 Pin Flanged Socket

2 x 32A MCB 4P

2 x 63A CEE 400V 5 Pin Flanged Socket

2 x 63A MCB 4P

1 x 13A UK Type 240V 3 Pin Panel Socket

1 x 10A MCB 1P

CASE

12U High-density Polyethylene Case 610x580x764mm
Stackable
Integrated Handles and Wheels
IP65 with lids closed

FEATURES

Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

Pilot LED Lights:

Protection Level: MCB

Additional Information: Made of Premium Components

Download MD125-320MCB Technical Sheet

Add to quote

Related products

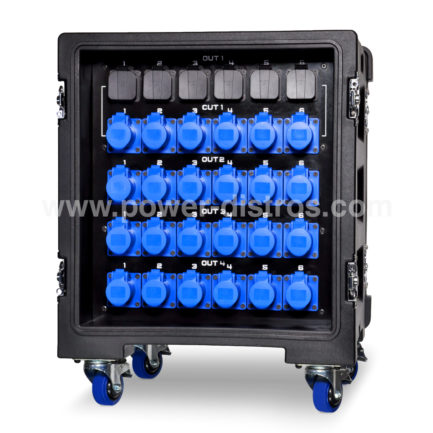

  • MD125-050RCBOMD125-050RCBO

    MD125-050RCBO

    125A Main Distribution Boxes
    MD125-050
    IN: 125A CEE 400V 5P
    OUT: 13A UK Type 240V, 16A CEE 240V 3P, 16A CEE 240V 3P

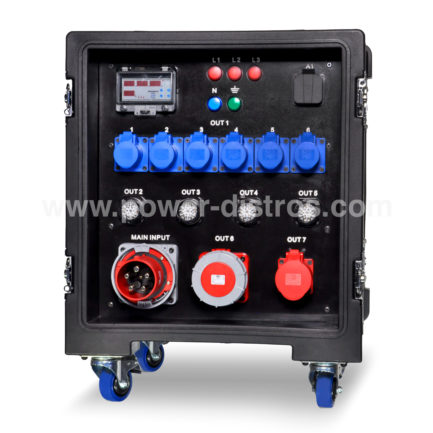

  • MD125-010RCDMD125-010RCD
