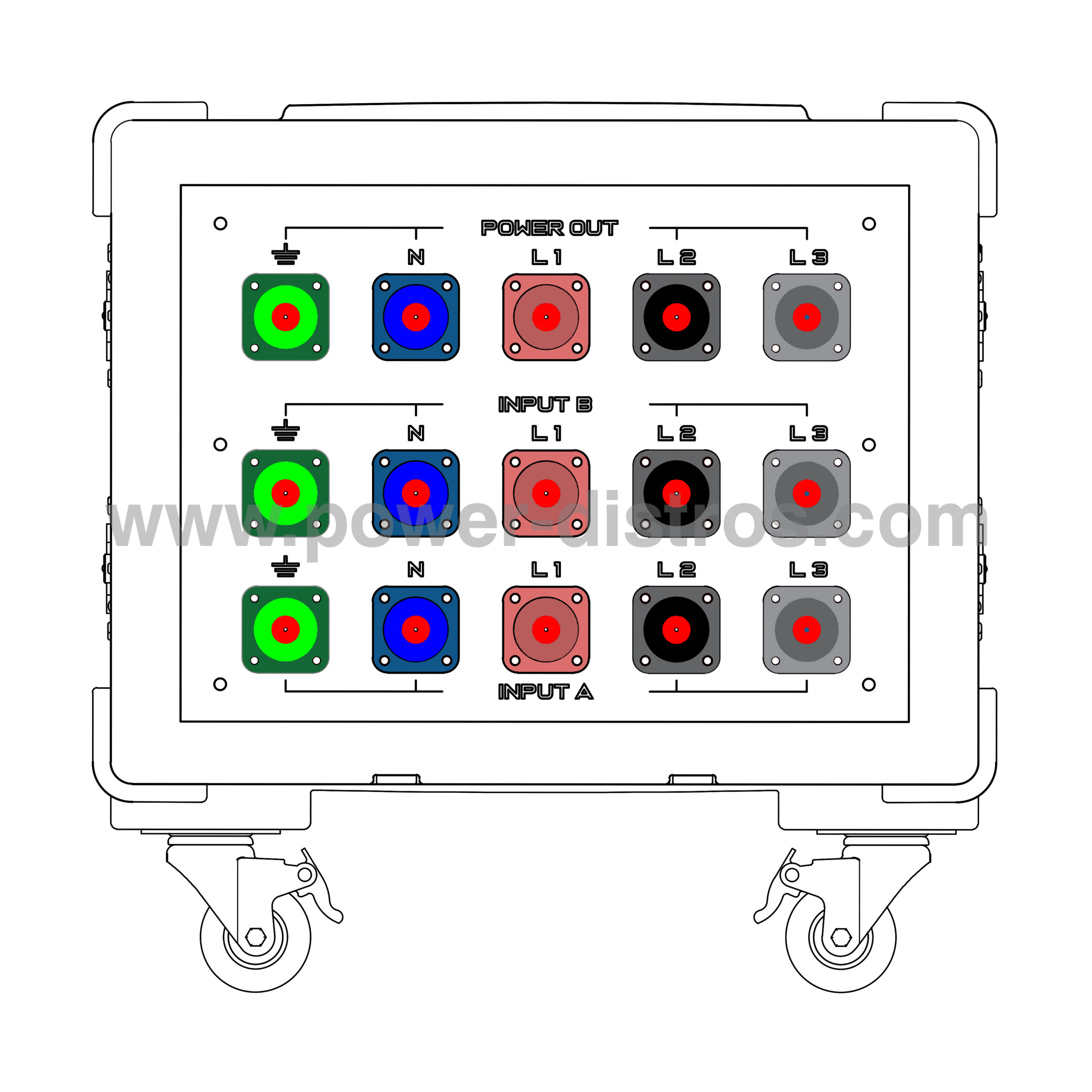

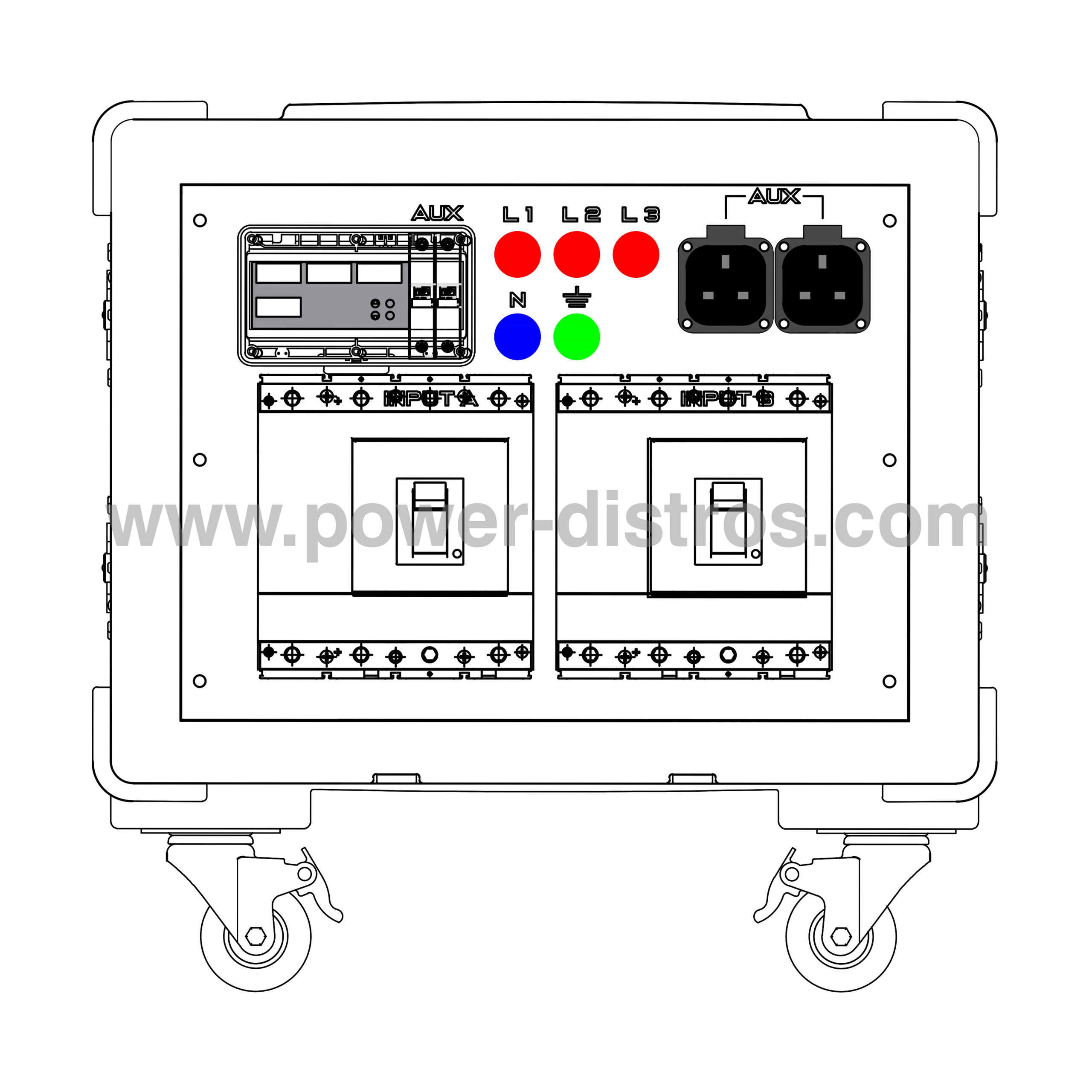

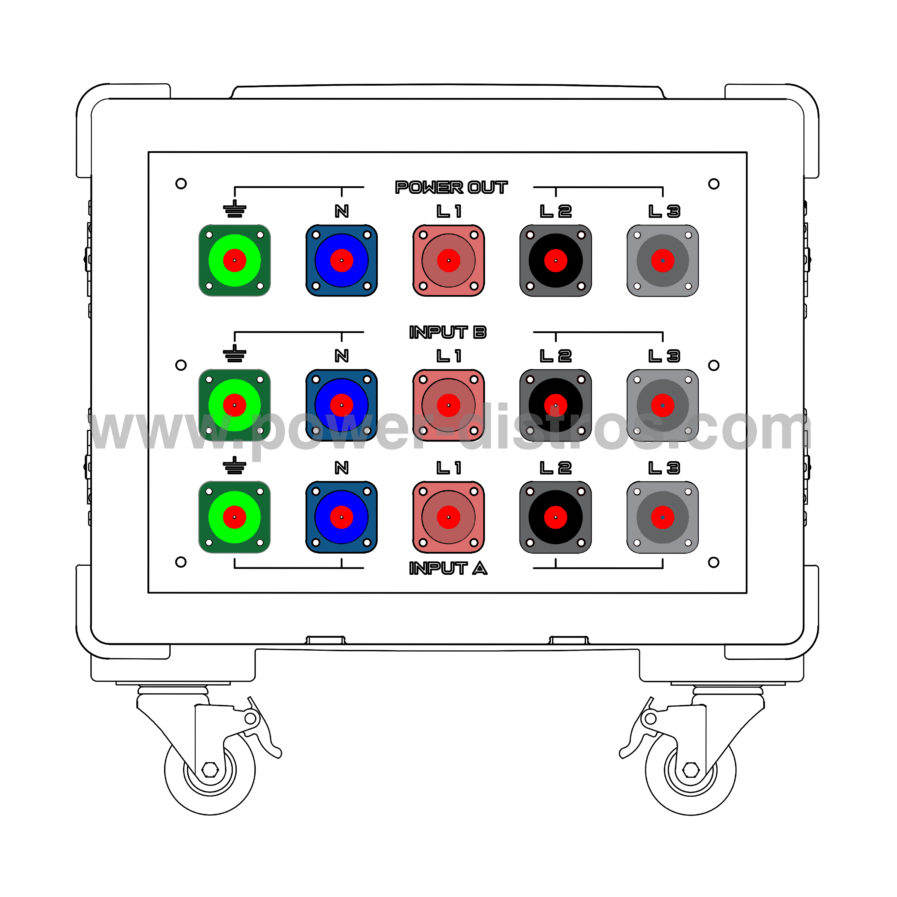

MD400-290MCB

SKU: MD400-290MCB CATEGORIES: , ,
Add to quote
INPUT
PlugsBreakers

2 x Power Lock Set 500A Single Pole 3 Phase

2 x 400A Main MCCB 4P

OUTPUT
SocketsBreakers

1 x Power Lock Set 500A Single Pole 3 Phase

No Breakers

2 x 13A UK Type 240V 3 Pin Panel Socket

2 x 10A MCB 1P

Power Lock Set 500A Through Output

CASE

8U High-density Polyethylene Case 610x580x600mm
Stackable
Integrated Handles and Wheels
IP65 with lids closed

FEATURES

Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green

Protection Level: MCB

Additional Information: Made of Premium Components

Download MD400-290MCB Technical Sheet
