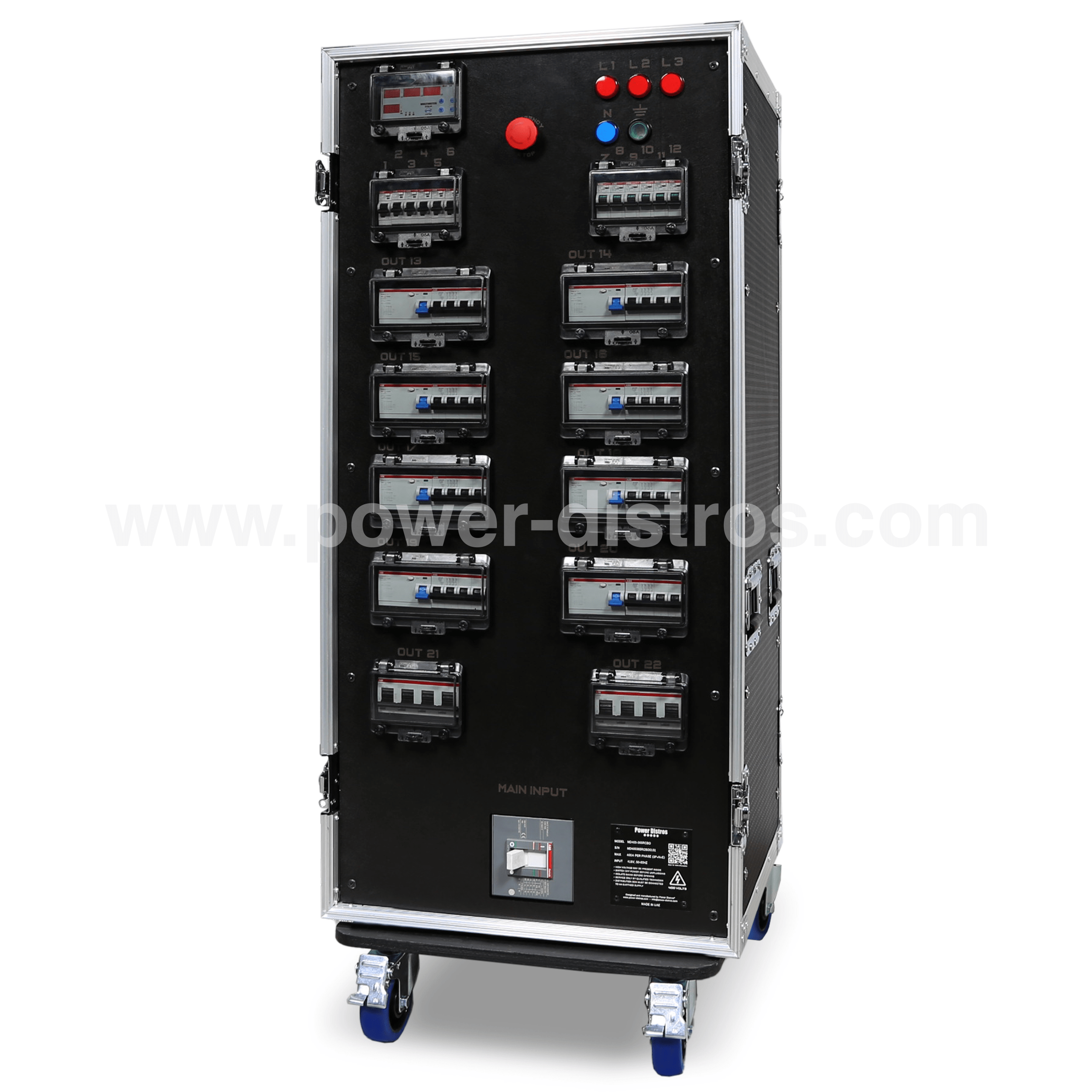

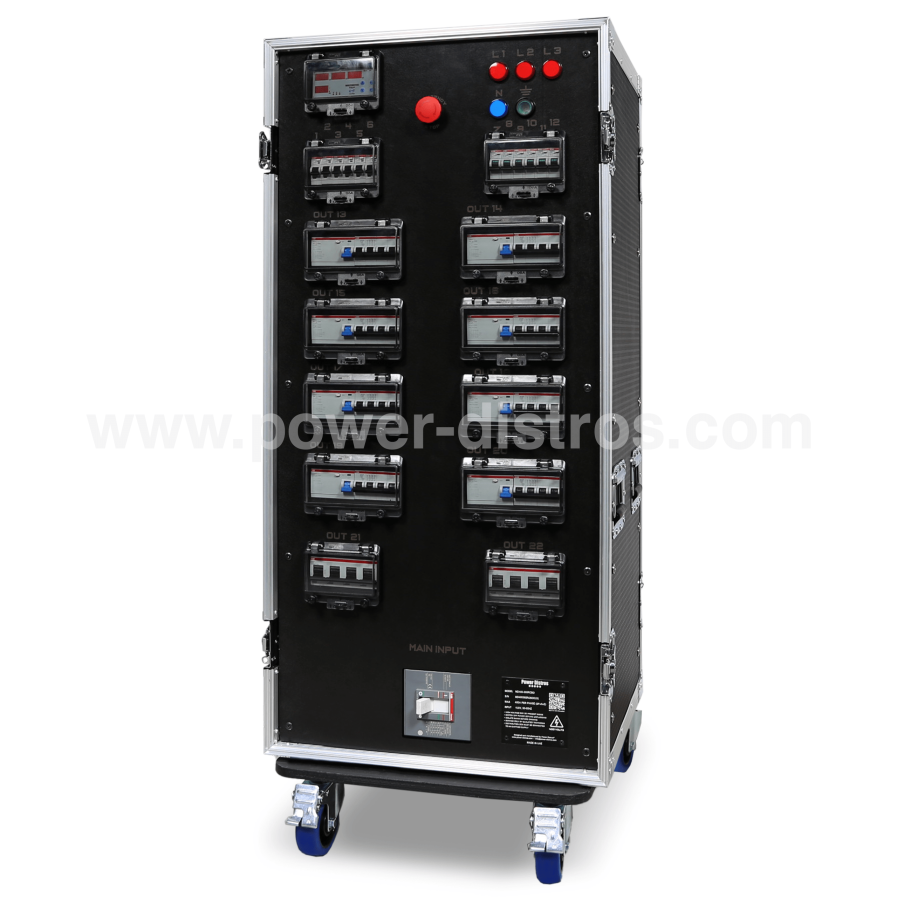

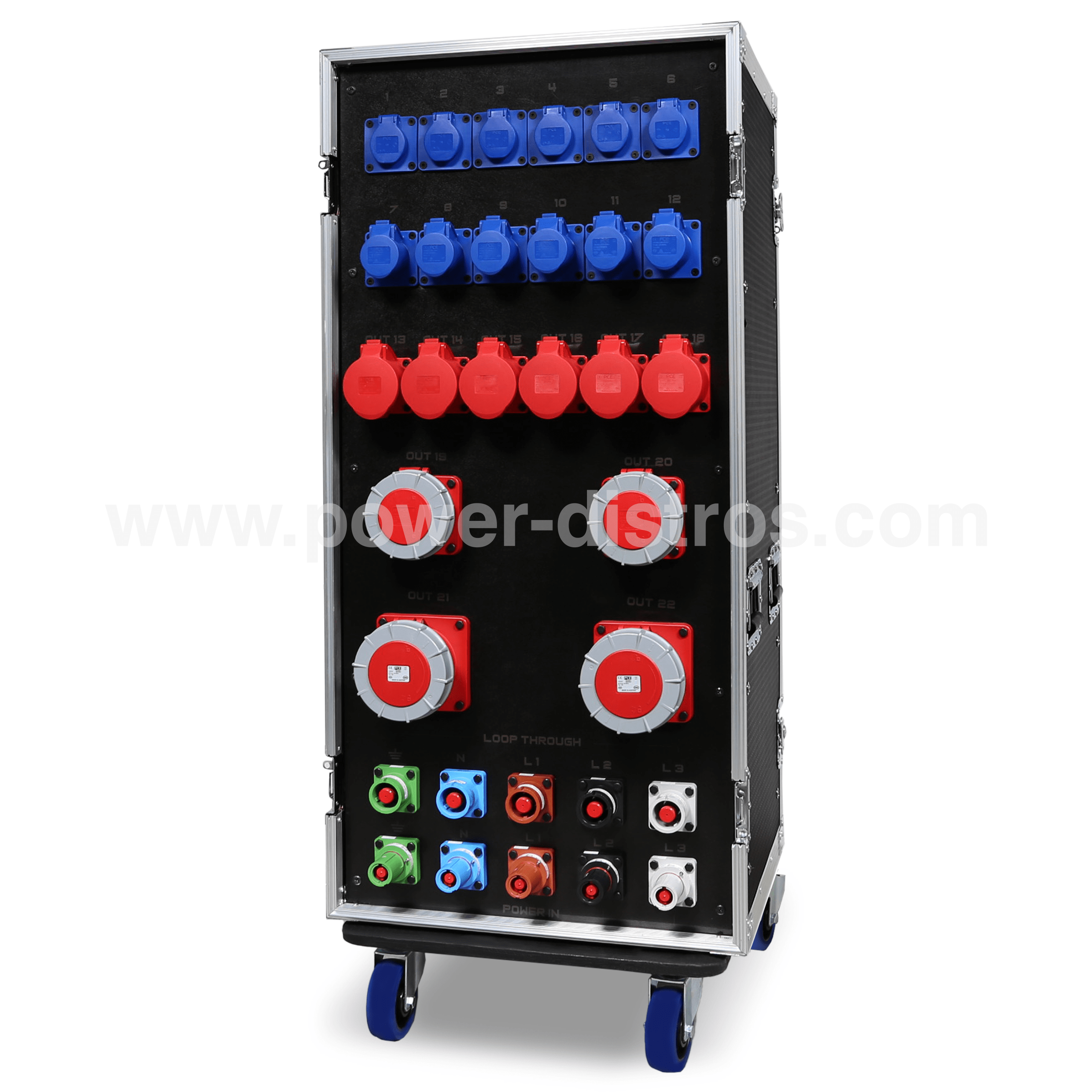

Main Distribution Box with 1 x 400A Power Lock 400V 5P Input, and 6 x 16A SCHUKO 250V 3P , 6 x 16A CEE 240V 3P,? 6 x 32A CEE 400V 5P, 2 x 63A CEE 400V 5P,? 2 x 125A CEE 400V 5P and 1 x Power Lock Set 500A Through Output outputs.
MD400-365RCBO
| INPUT | |
|---|---|
| Plugs | Breakers |
1 x Power Lock Set 500A Single Pole 3 Phase | 1 x 400A Main MCCB 4P |
| OUTPUT | |
|---|---|
| Sockets | Breakers |
6 x 16A CEE 240V 3 Pin Flanged Socket | 6 x 10A RCBO |
6 x 16A CEE 240V 3 Pin Flanged Socket | 6 x 16A RCBO |
6 x PCE 32A CEE 400V 5 Pin Socket | 6 x 40A RCD 4P |
2 x 63A CEE 400V 5 Pin Flanged Socket | 2 x 63A RCD 4P |
2 x 125A CEE 400V 5 Pin Flanged Socket | 2 x 125A MCB 4P |
1 x Power Lock Set 500A Single Pole 3 Phase | No Breakers |
| CASE |
|---|
24U Flight Case |
| FEATURES | Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green Protection Level: RCBO Additional Information: Made of Premium Components |
|---|
