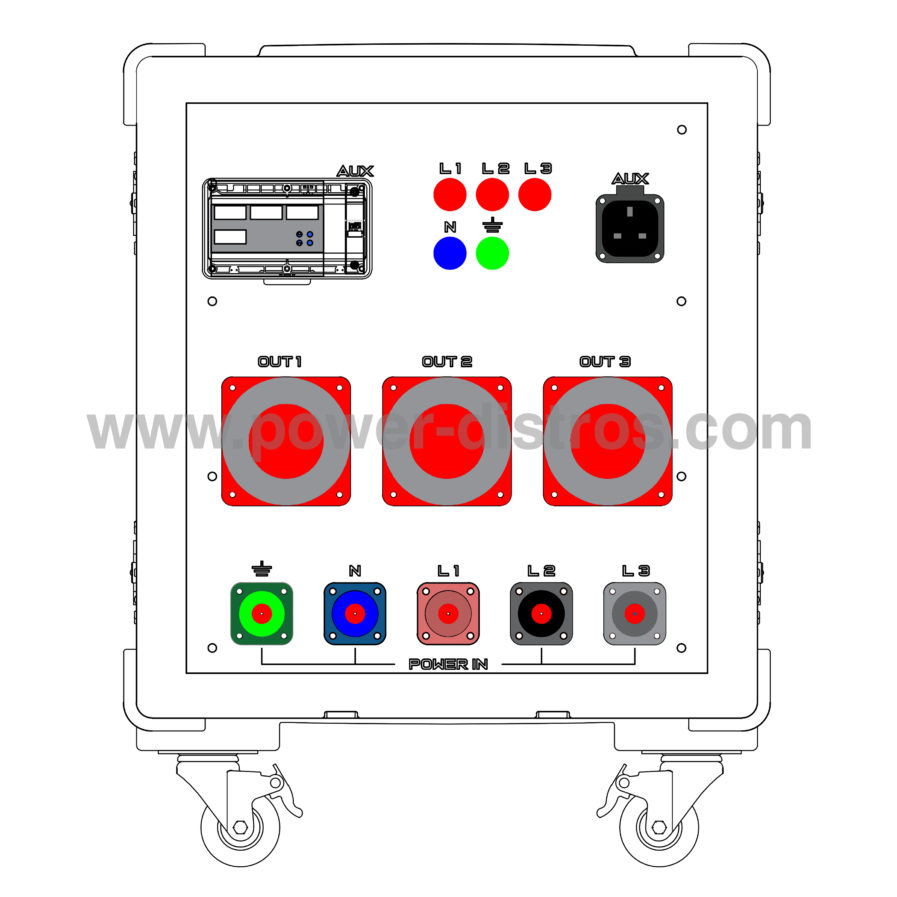

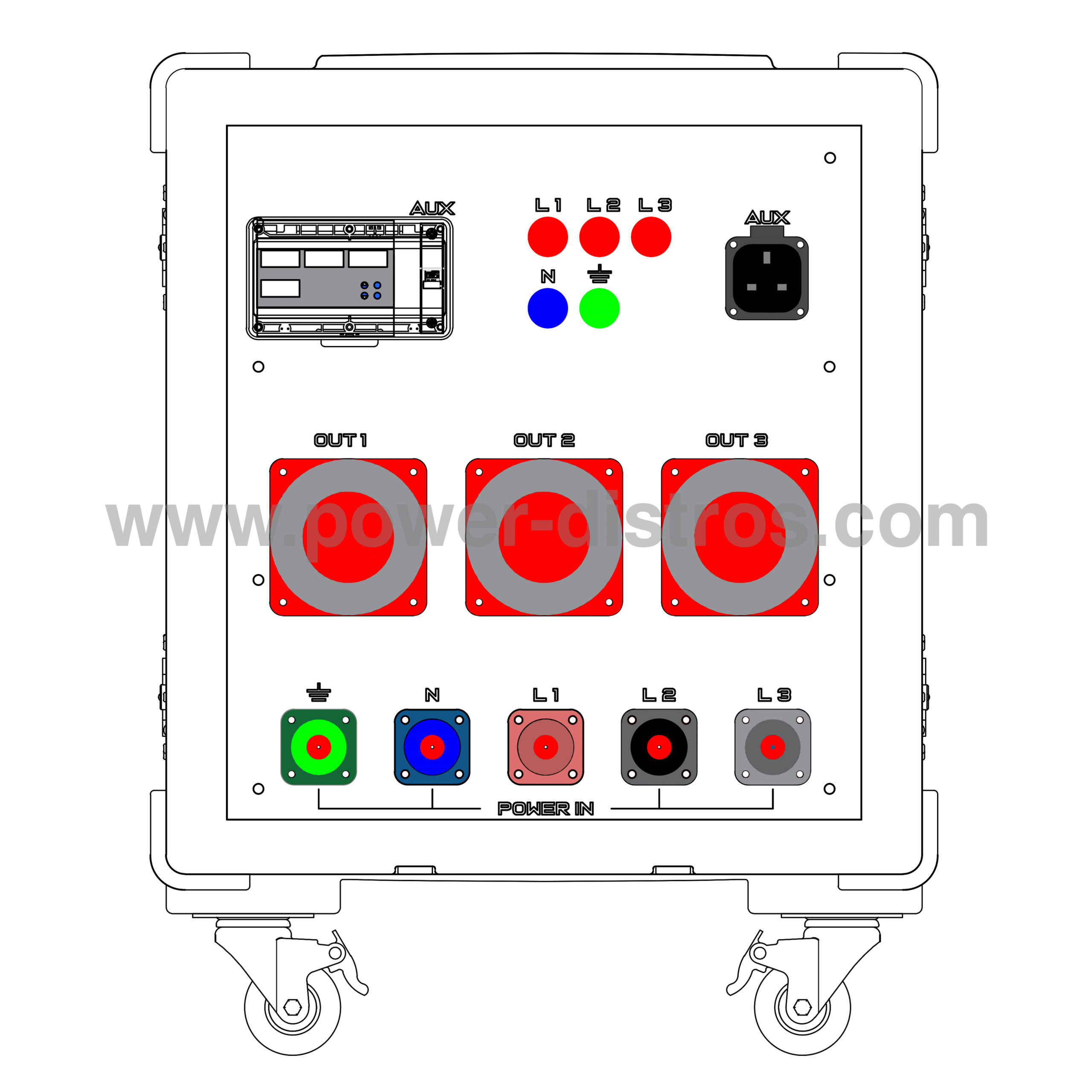

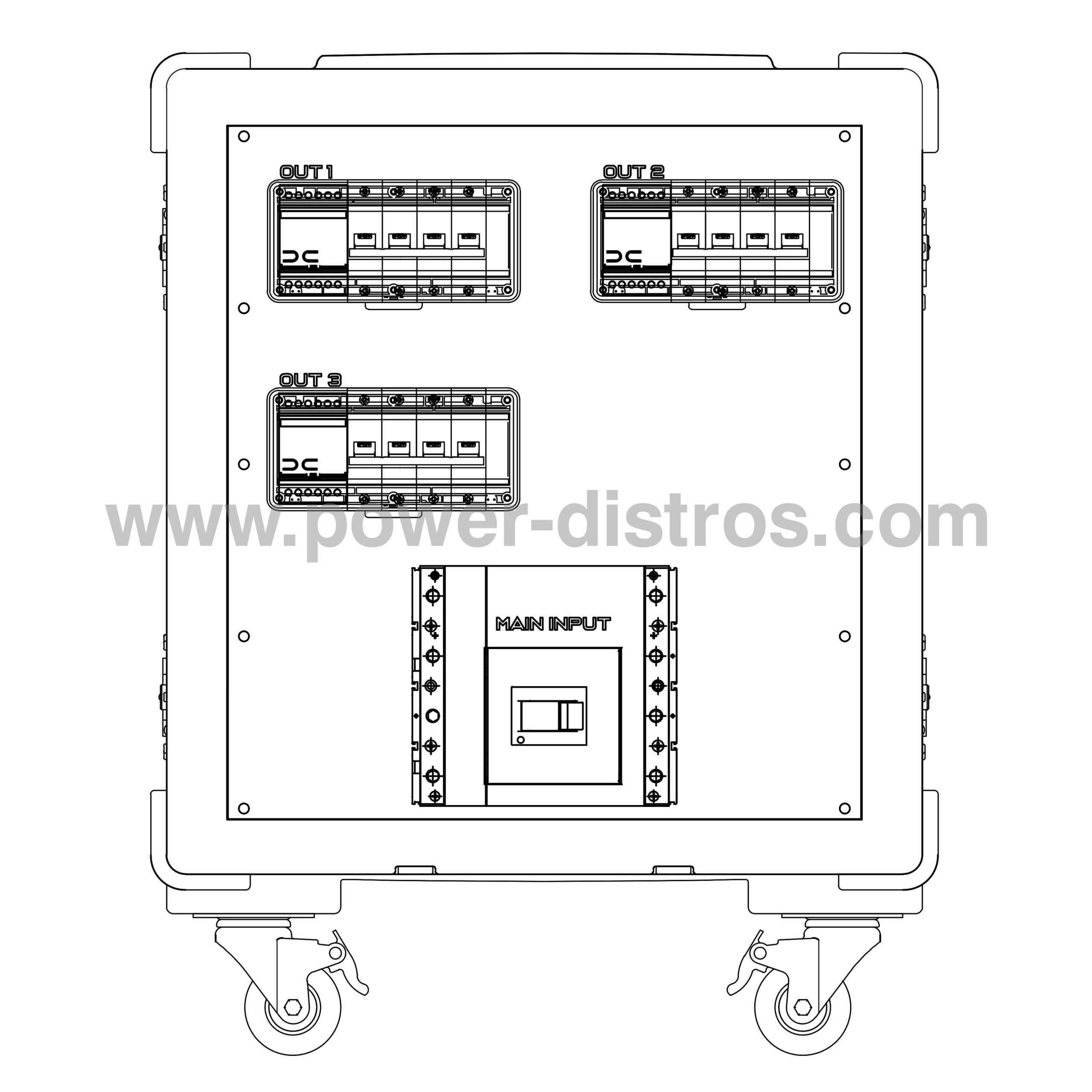

MD400-520RCD

SKU: MD400-520RCD CATEGORIES: , ,
Add to quote

Other Protection Levels available:

MCB
Compare
INPUT
PlugsBreakers

1 x Power Lock Set 500A Single Pole 3 Phase

1 x 400A Main MCCB 4P

OUTPUT
SocketsBreakers

3 x 125A CEE 400V 5 Pin Flanged Socket

3 x Variable Earth Leakage
3 x 125A MCB 4P

1 x 13A UK Type 240V 3 Pin Panel Socket

1 x 10A MCB 1P

CASE

12U High-density Polyethylene Case 610x580x764mm
Stackable
Integrated Handles and Wheels
IP65 with lids closed

FEATURES

Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green

Protection Level: RCD

Additional Information: Made of Premium Components

Download MD400-520RCD Technical Sheet

Add to quote
