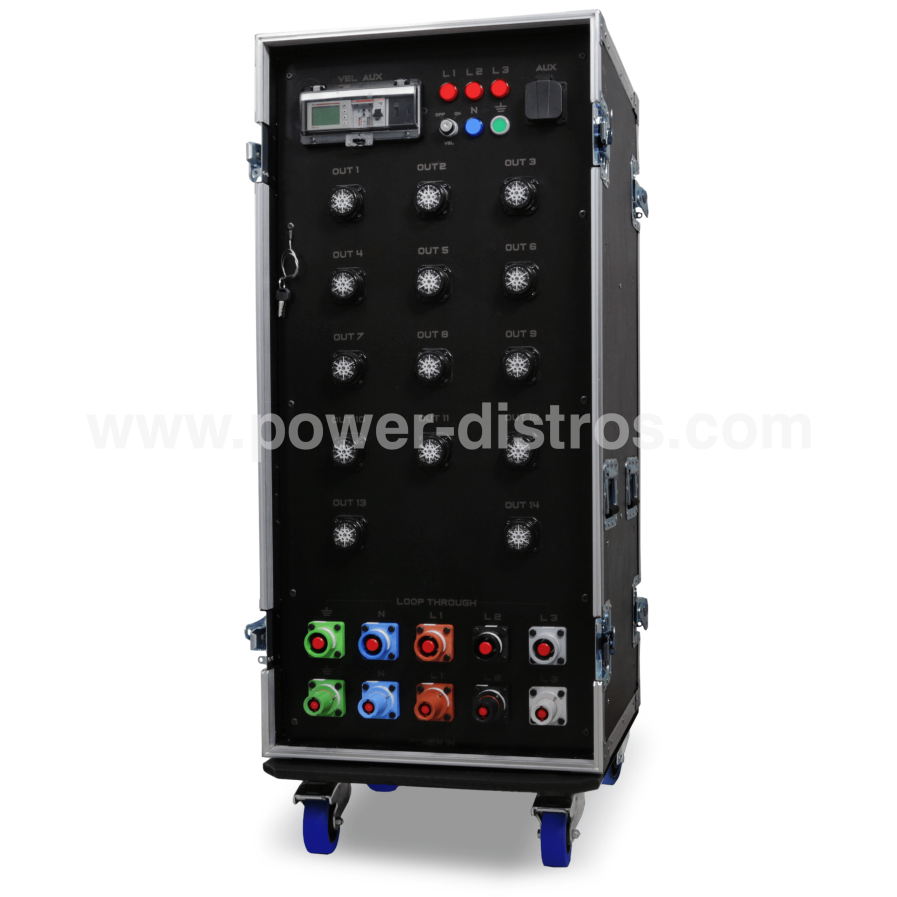

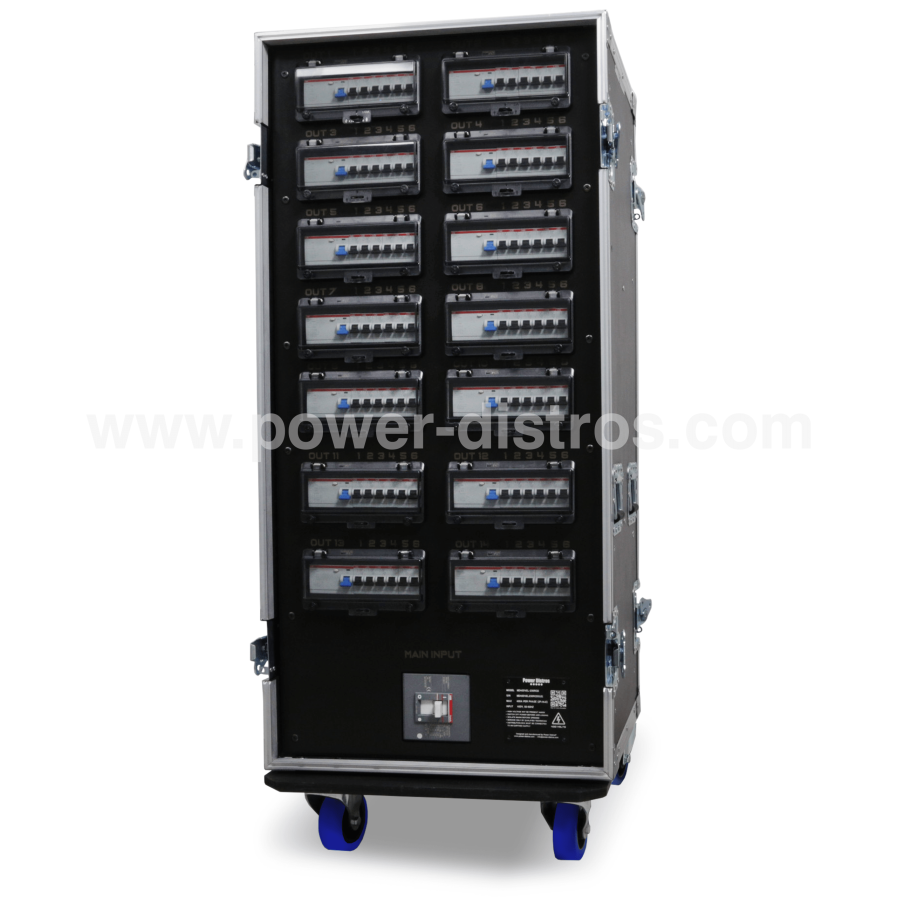

MD400VEL-230RCD
SKU: MD400VEL-230RCD
CATEGORIES: 400A Main Distribution Boxes, Main Distribution Boxes, MD400VEL-230
INPUT | |
---|---|
Plugs | Breakers |
1 x Power Lock Set 500A Single Pole 3 Phase | 1 x 400A Main MCCB 4P |
OUTPUT | |
---|---|
Sockets | Breakers |
1 x 13A UK Type 240V 3 Pin Panel Socket | 1 x 10A RCBO |
14 x 19 Pin Socket Connector | 14 x 40A RCD 4P |
Power Lock Set 500A Through Output |
CASE |
---|
24U Flight Case |
FEATURES | Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green Protection Level: RCD Additional Information: Made of Premium Components |
---|
Main Distribution Box with 1 x 400A Power Lock 400V 5P Input
