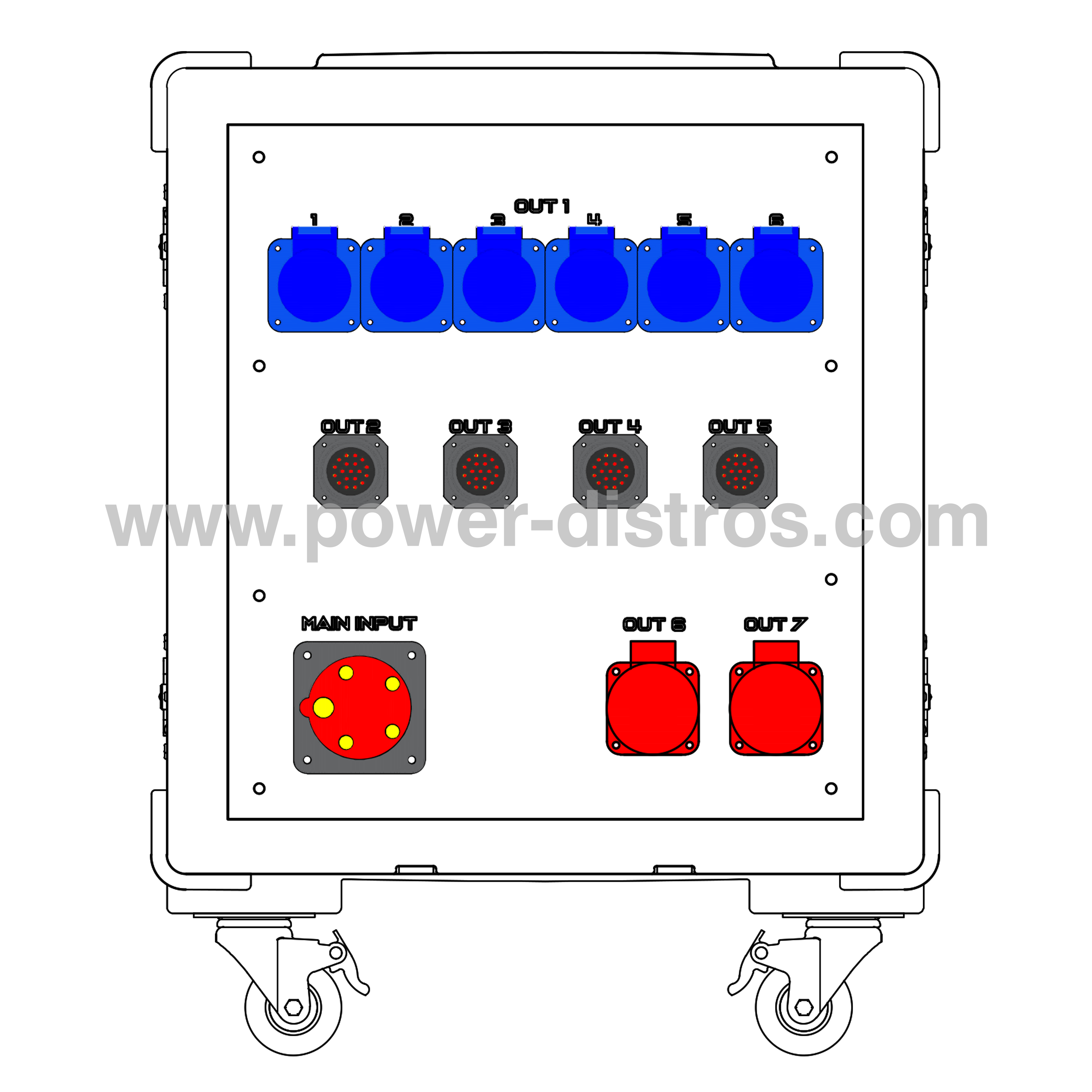

Main Distribution Box with 1 x 63A CEE 400V 5P Input, 6 x 16A CEE 240V 3P, 4 x 19 Pin Connector and 2 x 32A CEE 400V 5P Outputs – RCD and MCB Protection
MD63-223RCD
INPUT | |
---|---|
Plugs | Breakers |
1 x PCE 63A CEE 400V 5 Pin Plug | 1 x 63A MCB 4P |
OUTPUT | |
---|---|
Sockets | Breakers |
6 x PCE 16A CEE 240V 3 Pin Socket | 1 x 40A RCD 4P |
4 x 19 Pin Socket Connector | 4 x 40A RCD 4P |
2 x PCE 32A CEE 400V 5 Pin Socket | 2 x 40A RCD 4P |
CASE |
---|
12U High-density Polyethylene Case 610x580x764mm |
FEATURES | Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green Protection Level: RCD Additional Information: Made of Premium Components |
---|
