PD-HCD12

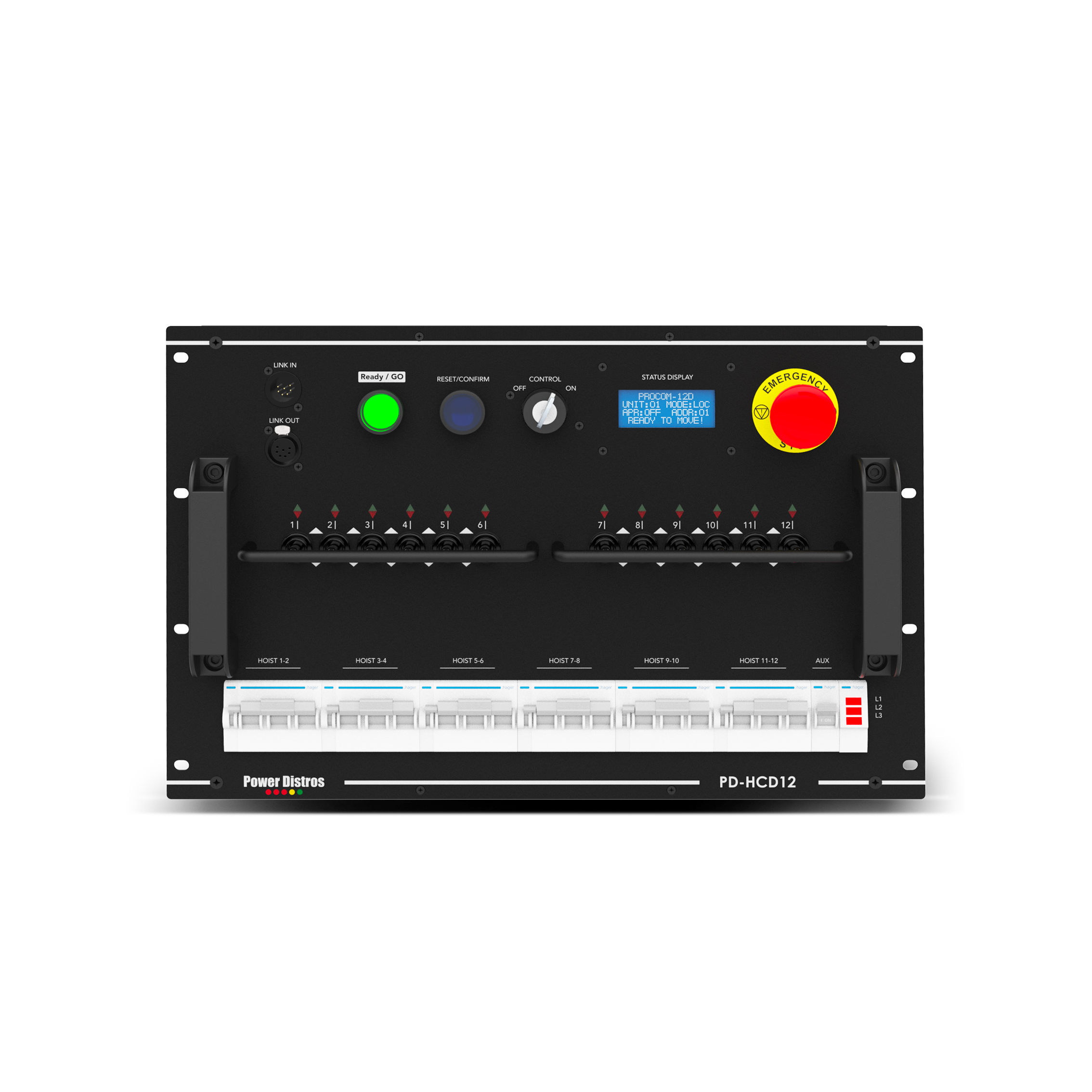

The PD-HCD12 is a professional, reliable 12-channel digital hoist controller featuring local direction control for precise motor management. It operates on 3x230V/400VAC power (3 x 32A) and uses 6 x 19-pole ‘Socapex’ connectors for output. Safety is ensured via forcibly guided relays and a 3P contactor system with 3P C10A protection per two motors. It includes XLR Link I/O and an External E-Stop input, delivering robust power and safety for complex staging and rigging setups.
Input:
5G4 H07RN-F CEE 32A5P
Output:

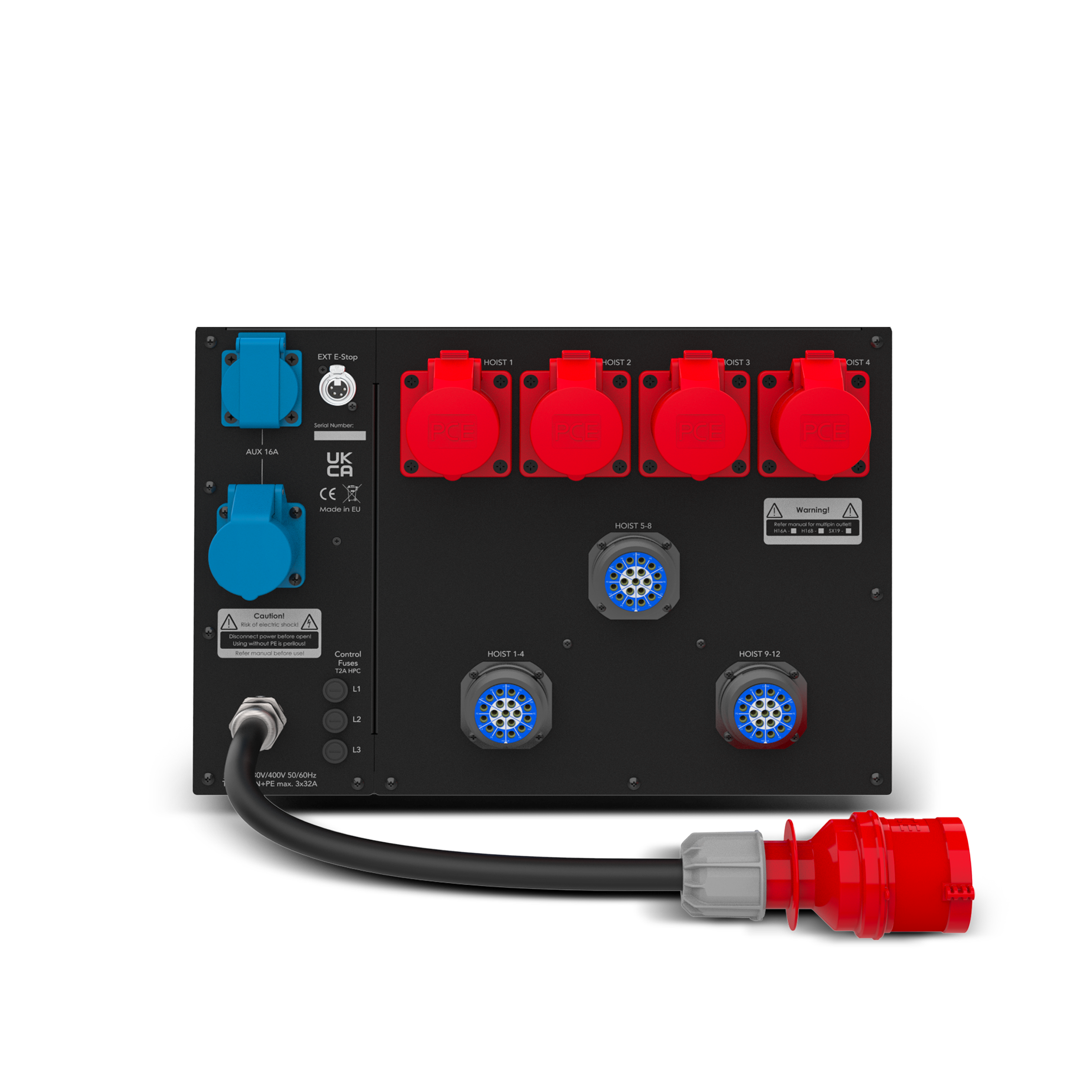

6 x 19-pole Socapex
3 x 4 output – 12 channels
Series:
Hoists Controllers
Dimensions:
H 312 mm, W 484 mm
Key Features:
4-pole XLR female for External E-Stop signal
10-pole XLR male/female for Link in/out
Modify this boxPD-HCD12
Input
Plugs
5G4 H07RN-F CEE 32A5P
Output
Sockets
6 x 19-pole Socapex
3 x 4 output – 12 channels
Features
Additional Information
4-pole XLR female for External E-Stop signal10-pole XLR male/female for Link in/out
