PD-HCM12

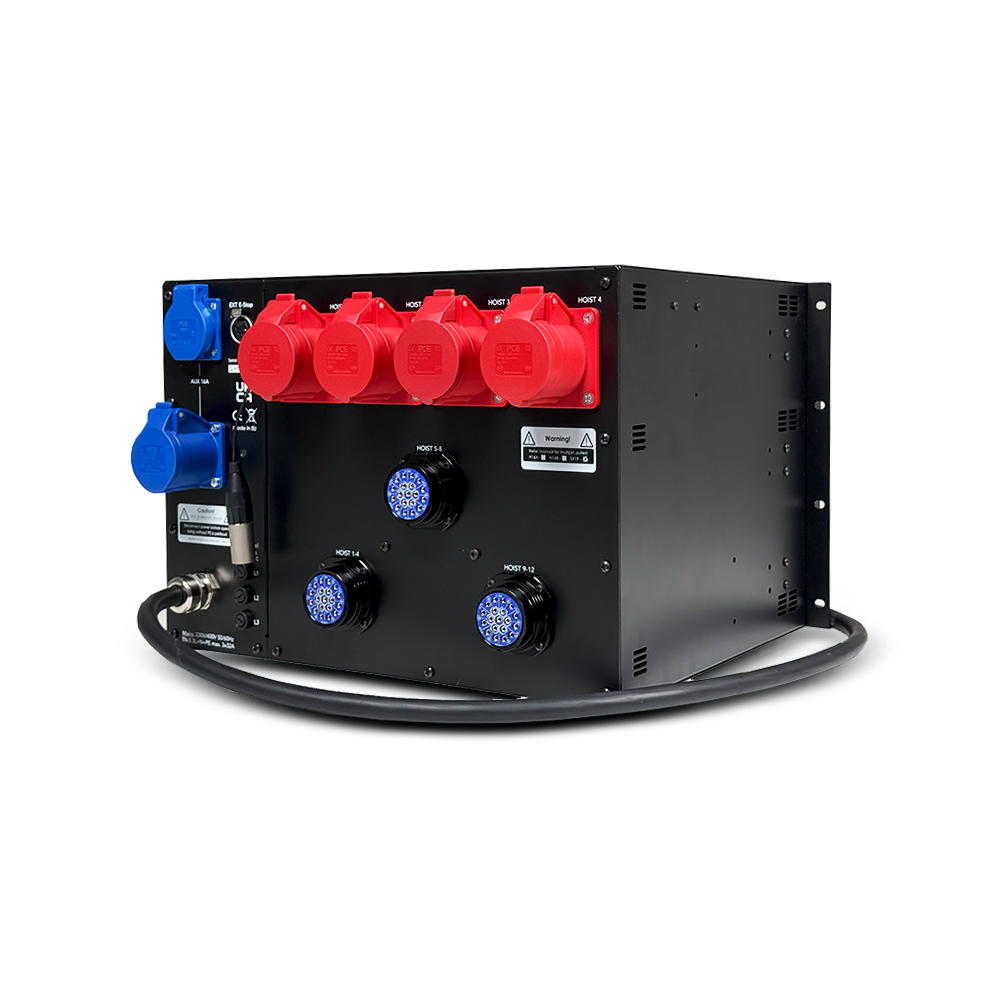

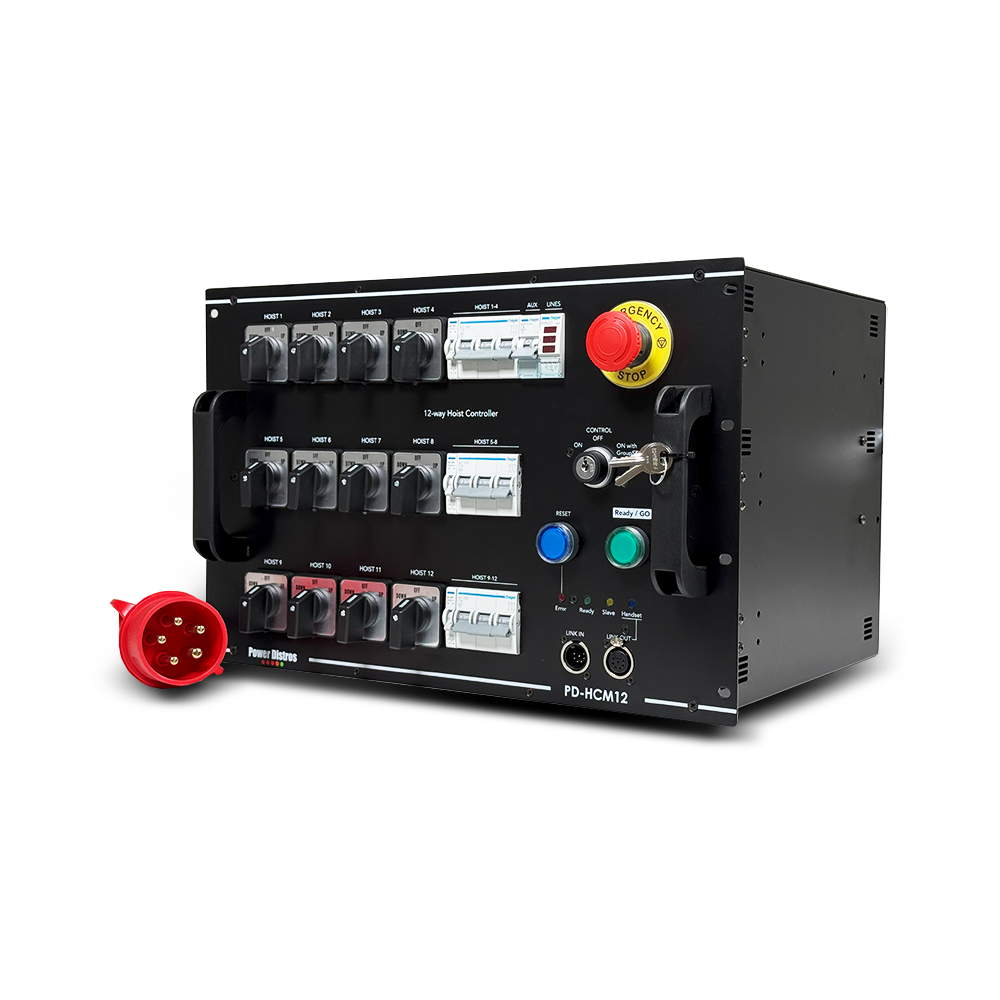

The PD-HCM12 is a high-capacity 12-channel hoist controller engineered for large-scale rigging, featuring local direction control for individual motor adjustment. It operates on a TN-S 3x230V/400VAC power supply and adheres to the Cat0 Stop function mode (EN60204-32) for maximum safety. Outputs are provided via 4x CEE16/4P connectors, with protection managed by 3P C16A breakers for each 4-motor group. Connectivity includes 7-pole XLR Link I/O for daisy-chaining and a 4-pole XLR for an External E-Stop. The unit delivers robust, safety-compliant control for up to 12 hoists.
Input:
5G4 H07RN-F CEE 32A5P
Output:
3 x 19-pole Socapex
3 x 4 output – 12 channels
Series:
Hoists Controllers
Dimensions:
H 312 mm, W 484 mm
Key Features:
7-pole XLR male/female for Link in/out
4-pole XLR female for External E-Stop signal
Modify this boxPD-HCM12
Input
Plugs
5G4 H07RN-F CEE 32A5P
Output
Sockets
3 x 19-pole Socapex
3 x 4 output – 12 channels
Features
Additional Information
7-pole XLR male/female for Link in/out4-pole XLR female for External E-Stop signal
