PD-HCM8

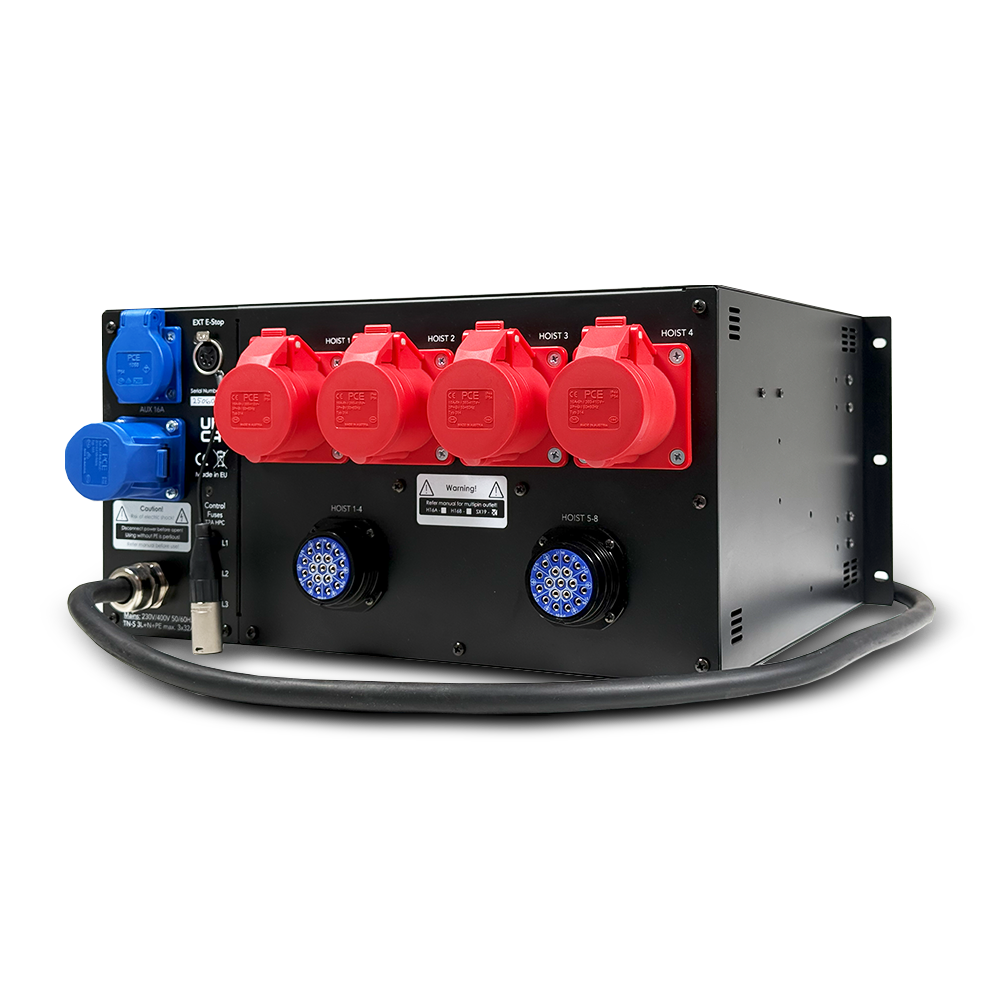

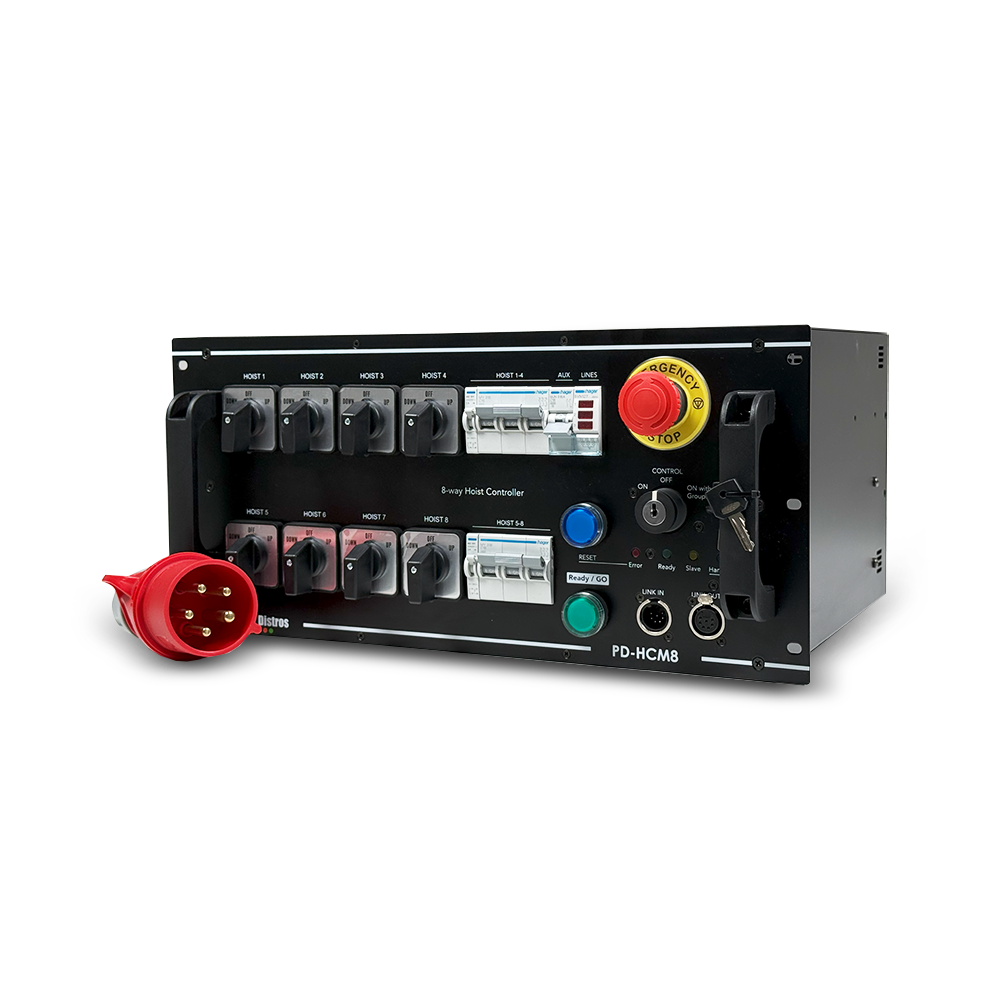

The PD-HCM8 is a professional 8-channel hoist controller providing reliable motor control with local direction control. It operates on a TN-S 3x230V/400VAC power supply and complies with Cat0 Stop function mode (EN60204-32) for high safety standards. Outputs are delivered via 4x or 8x CEE16/4P connectors. Output protection uses 3P C16A breakers for each 4-motor group. The controller features 7-pole XLR Link I/O for system linking and a 4-pole XLR for an External E-Stop signal, making it a robust and safety-conscious solution for rigging applications.
Input:
5G4 H07RN-F CEE 32A5P
Output:
2 x 19-pole Socapex
2 x 4 output – 8 channels
Series:
Hoists Controllers
Dimensions:
H 223 mm, W 484 mm
Key Features:
7-pole XLR male/female for Link in/out
4-pole XLR female for External E-Stop signal
Modify this boxPD-HCM8
Input
Plugs
5G4 H07RN-F CEE 32A5P
Output
Sockets
2 x 19-pole Socapex
2 x 4 output – 8 channels
Features
Additional Information
7-pole XLR male/female for Link in/out4-pole XLR female for External E-Stop signal
