MD125-300
IN: 125A CEE 400V 5P
OUT: 16A CEE 240V 3P, 32A CEE 240V 3P, 32A CEE 400V 5P, 13A UK Type 240V, 19 Pin Connector, 63A CEE 400V 5P
-

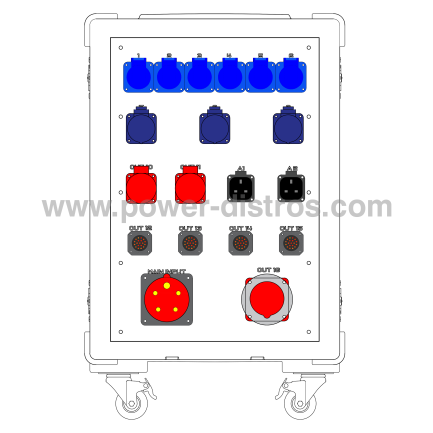

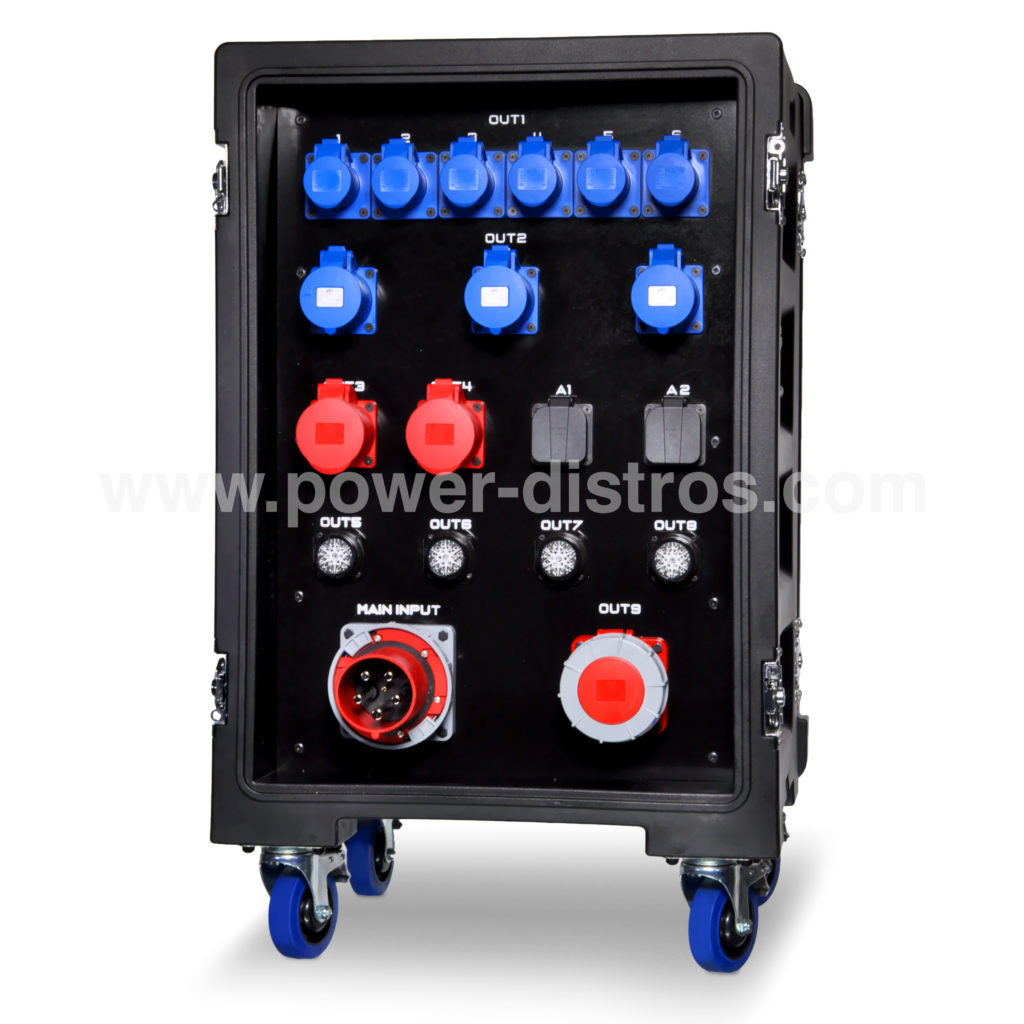

MD125-300MCB
Download MD125-300MCB Technical SheetINPUT Plugs Breakers 1 x 125A CEE 400V 5 Pin Panel Plug
1 x 125A MCB 4P
OUTPUT Sockets Breakers 6 x 16A CEE 240V 3 Pin Flanged Socket
6 x 16A MCB 1P
3 x 32A CEE 240V 3 Pin Flanged Socket
3 x 32A MCB 1P
2 x 32A CEE 400V 5 Pin Flanged Socket
2 x 32A MCB 4P
2 x 13A UK Type 240V 3 Pin Panel Socket
2 x 10A MCB 1P
4 x 19 Pin Panel Socket
24 x 16A MCB 1P
1 x 63A CEE 400V 5 Pin Flanged Socket
1 x 63A MCB 4P
CASE 16U High-density Polyethylene Case 610x580x950mm
Stackable
Integrated Handles and Wheels
IP65 with lids closedFEATURES Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency
Pilot LED Lights:
Protection Level: MCB
Additional Information: Made of Premium Components
-
MD125-300RCD
Download MD125-300RCD Technical SheetINPUT Plugs Breakers 1 x 125A CEE 400V 5 Pin Panel Plug
1 x 125A MCB 4P
OUTPUT Sockets Breakers 6 x 16A CEE 240V 3 Pin Flanged Socket
1 x 40A RCD 4P
6 x 16A MCB 1P3 x 32A CEE 240V 3 Pin Flanged Socket
2 x 40A RCD 4P
3 x 32A MCB 1P2 x 32A CEE 400V 5 Pin Flanged Socket
2 x 40A RCD 4P
2 x 32A MCB 4P2 x 13A UK Type 240V 3 Pin Panel Socket
2 x 10A MCB 1P
4 x 19 Pin Panel Socket
4 x 40A RCD 4P
24 x 16A MCB 1P1 x 63A CEE 400V 5 Pin Flanged Socket
1 x 63A RCD 4P
1 x 63A MCB 4PCASE 16U High-density Polyethylene Case 610x580x950mm
Stackable
Integrated Handles and Wheels
IP65 with lids closedFEATURES Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency
Pilot LED Lights:
Protection Level: RCD
Additional Information: Made of Premium Components
-

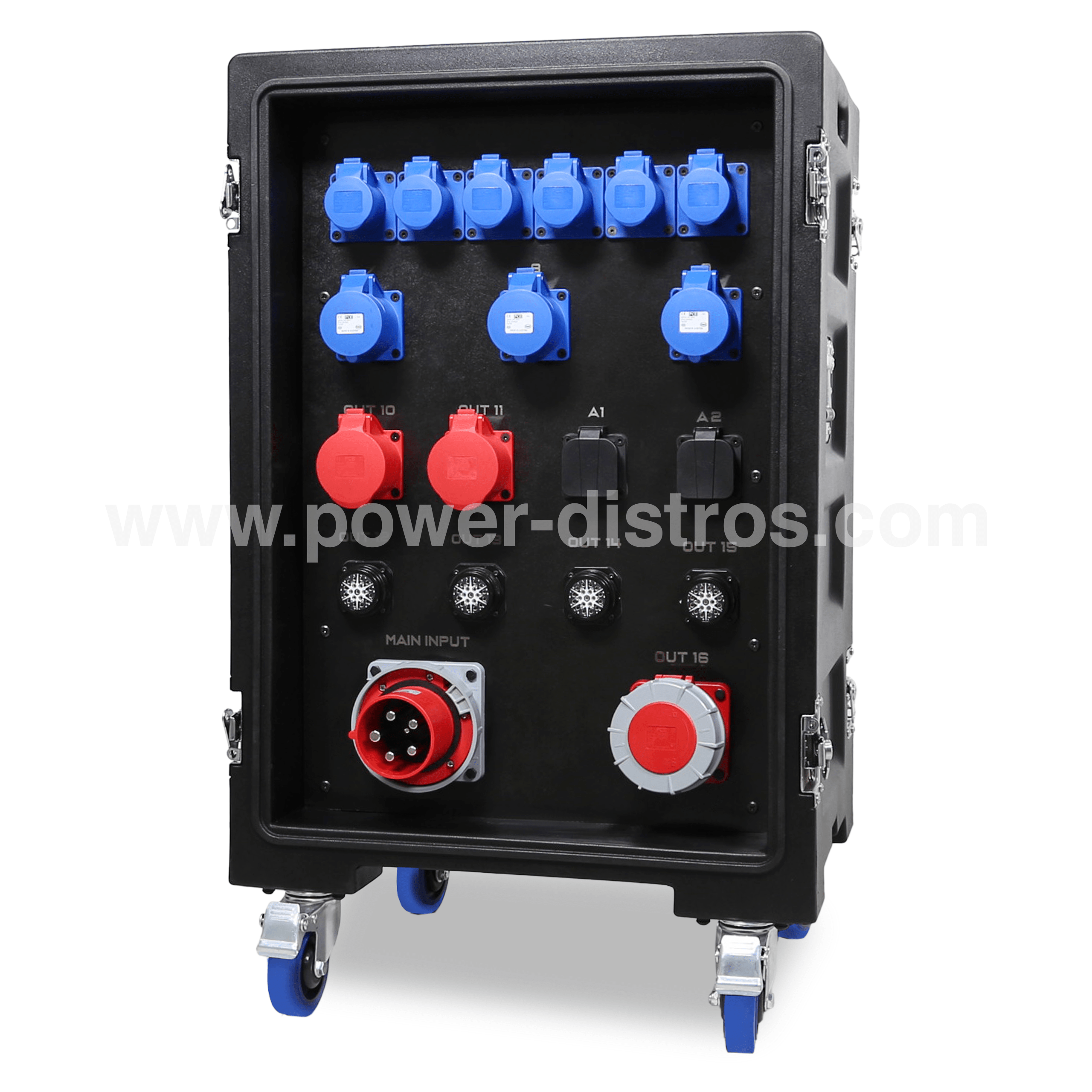

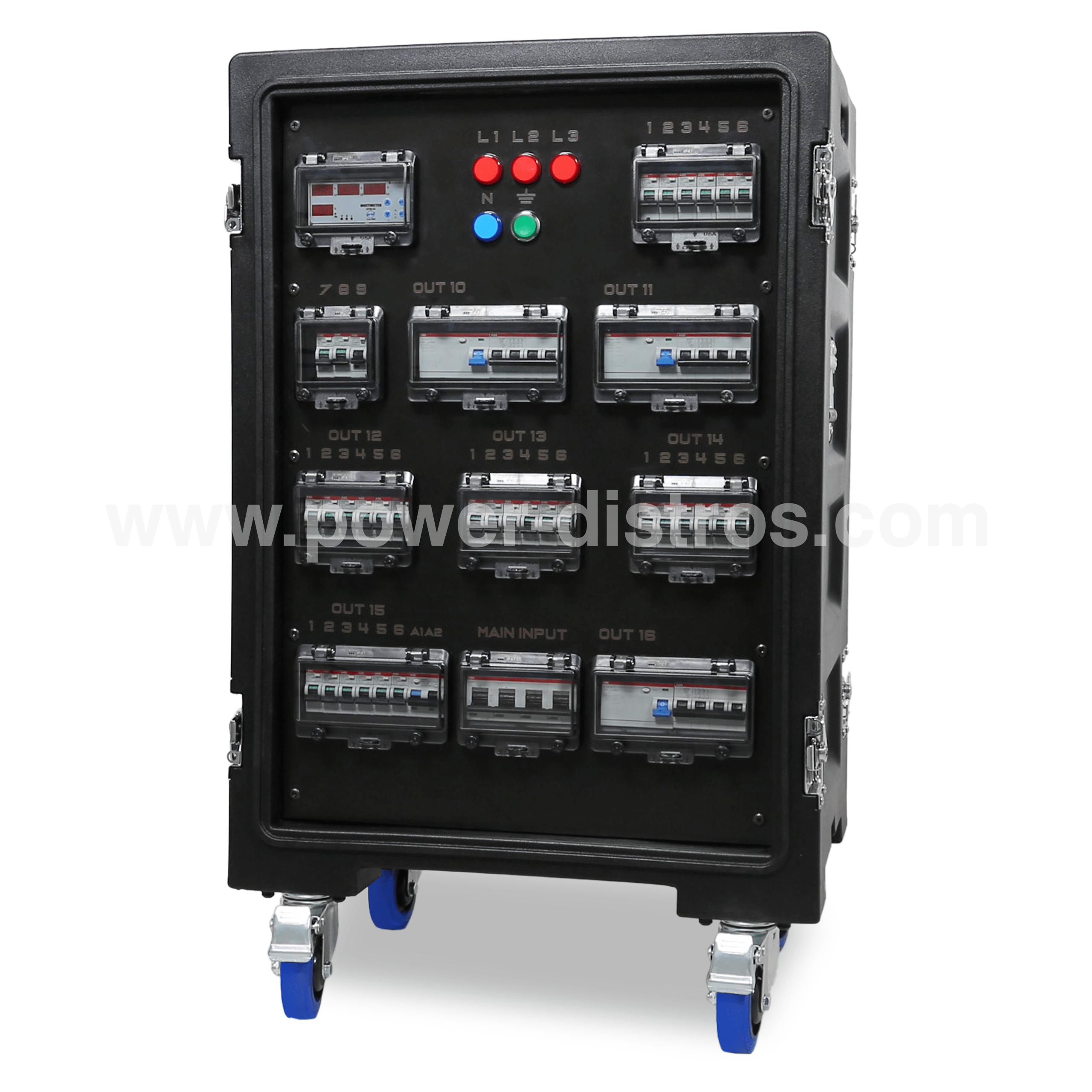

MD125-300RCBO
Download MD125-300RCBO Technical SheetINPUT Plugs Breakers 1 x 125A CEE 400V 5 Pin Panel Plug
1 x 125A MCB 4P
OUTPUT Sockets Breakers 6 x 16A CEE 240V 3 Pin Flanged Socket
6 x 16A RCBO
3 x 32A CEE 240V 3 Pin Flanged Socket
3 x 32A RCBO
2 x 32A CEE 400V 5 Pin Flanged Socket
2 x 40A RCD 4P
2 x 32A MCB 4P2 x 13A UK Type 240V 3 Pin Panel Socket
2 x 10A MCB 1P
4 x 19 Pin Panel Socket
24 x 16A RCBO
1 x 63A CEE 400V 5 Pin Flanged Socket
1 x 63A RCD 4P
1 x 63A MCB 4PCASE 16U High-density Polyethylene Case 610x580x950mm
Stackable
Integrated Handles and Wheels
IP65 with lids closedFEATURES Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency
Protection Level: RCBO
Additional Information: Made of Premium Components
