MD63-192
IN: 63A CEE 400V 5P
OUT: 13A UK Type 240V, 16A CEE 240V 3P, 32A CEE 240V 3P
-

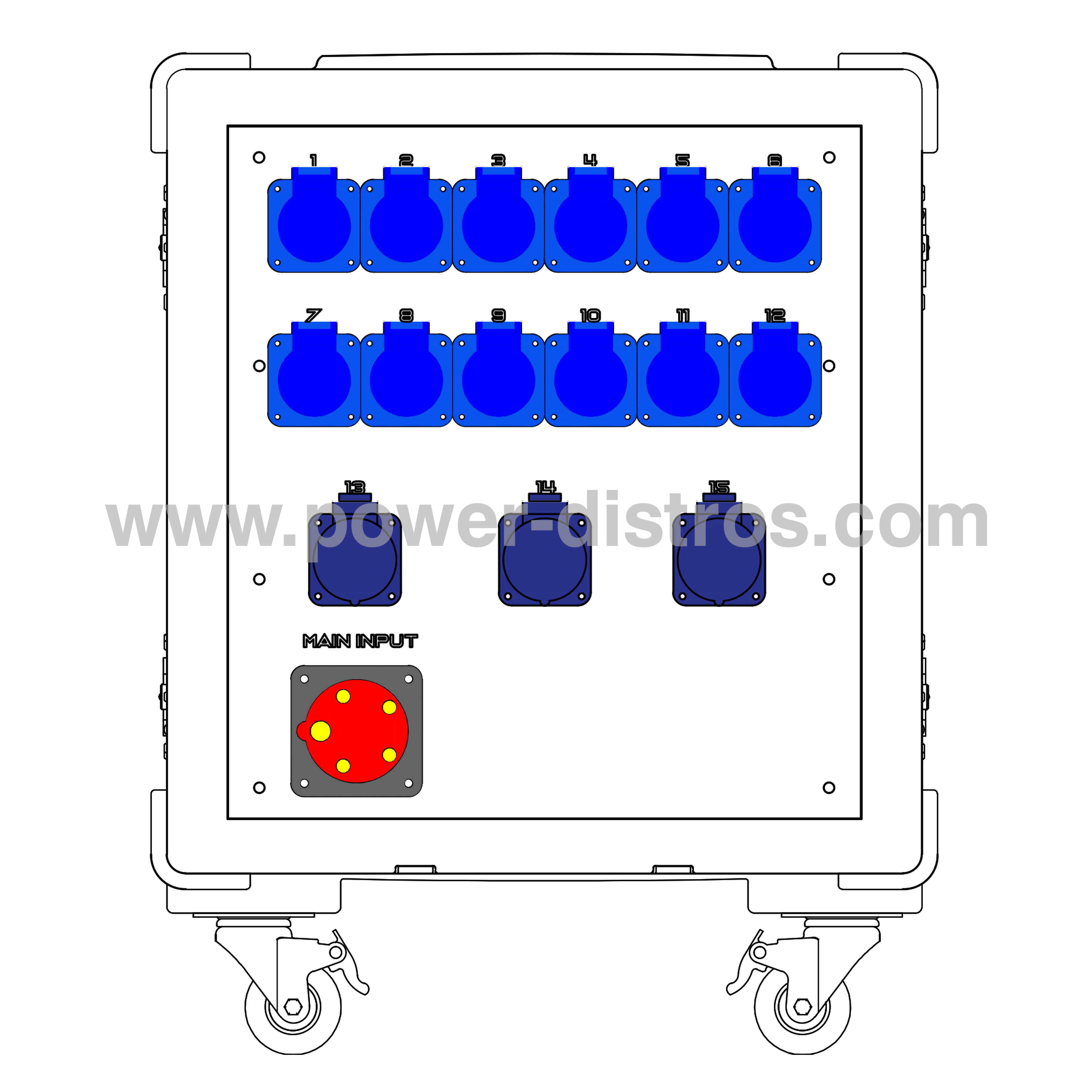

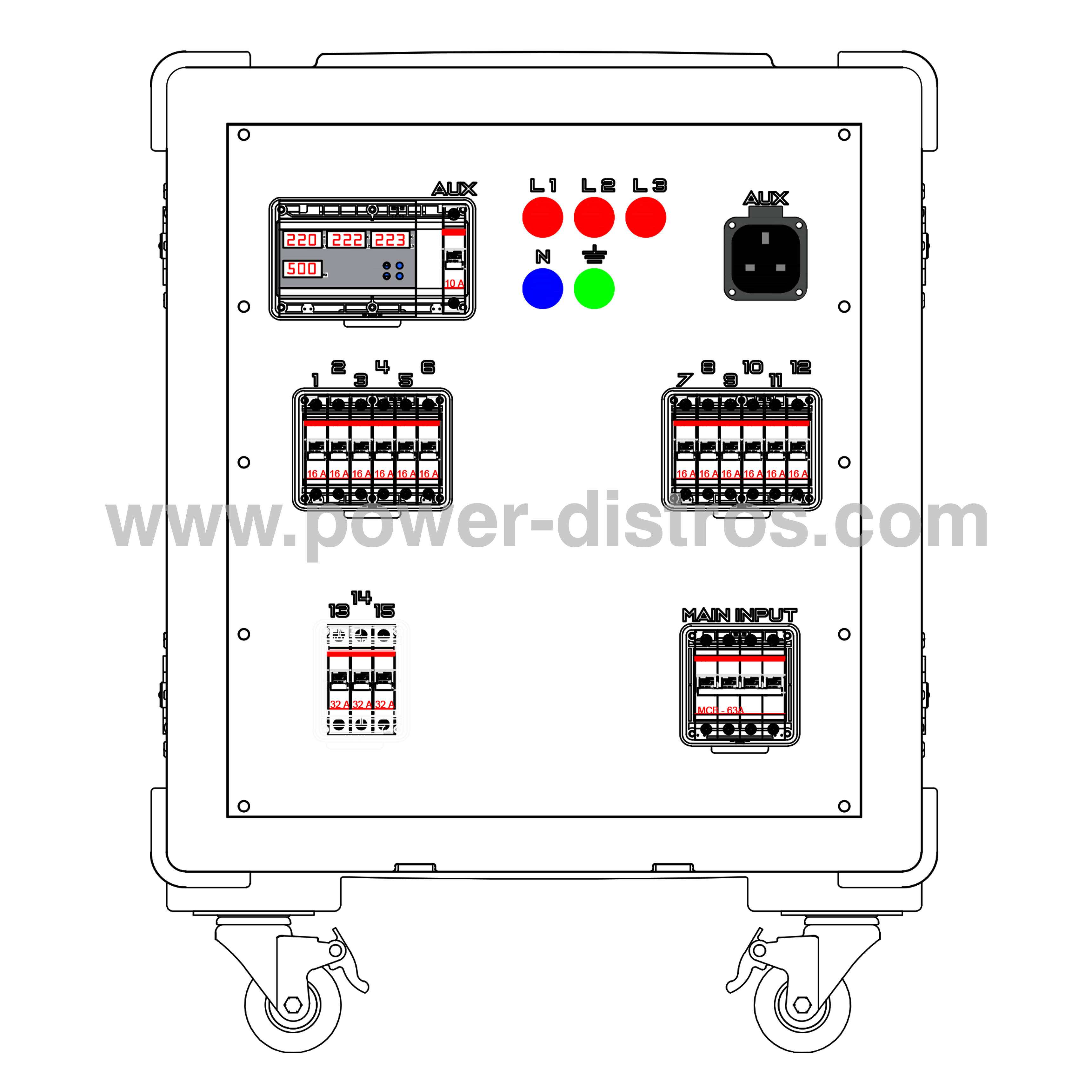

MD63-192MCB
Download MD63-192MCB Technical SheetINPUT Plugs Breakers 1 x PCE 63A CEE 400V 5 Pin Plug
1 x 63A MCB 4P
OUTPUT Sockets Breakers 1 x 13A UK Type 240V 3 Pin Socket
1 x 10A MCB 1P
12 x PCE 16A CEE 240V 3 Pin Socket
12 x 16A MCB 1P
3 x PCE 32A CEE 240V 3 Pin Socket
3 x 32A MCB 1P
CASE 12U High-density Polyethylene Case 610x580x764mm
Stackable
Integrated Handles and Wheels
IP65 with lids closedFEATURES Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency
Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green
Protection Level: MCB
Additional Information: Made of Premium Components.
-

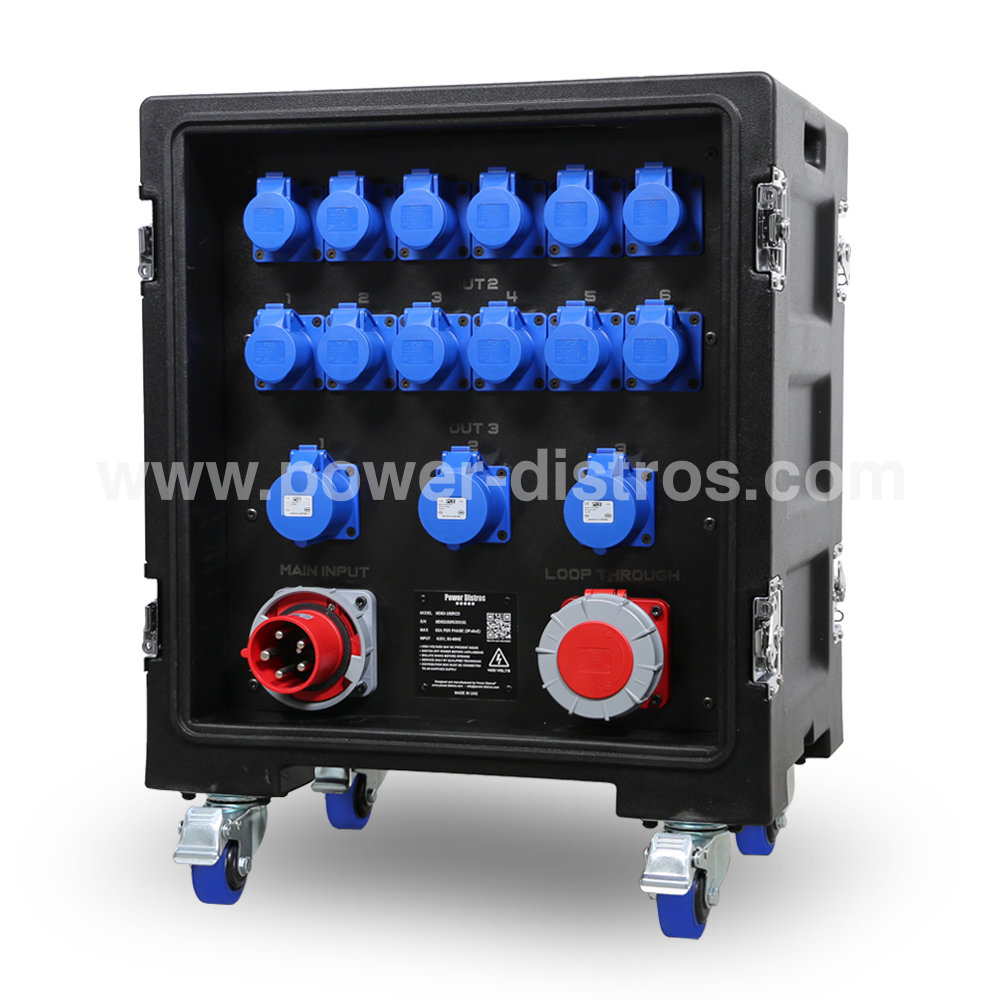

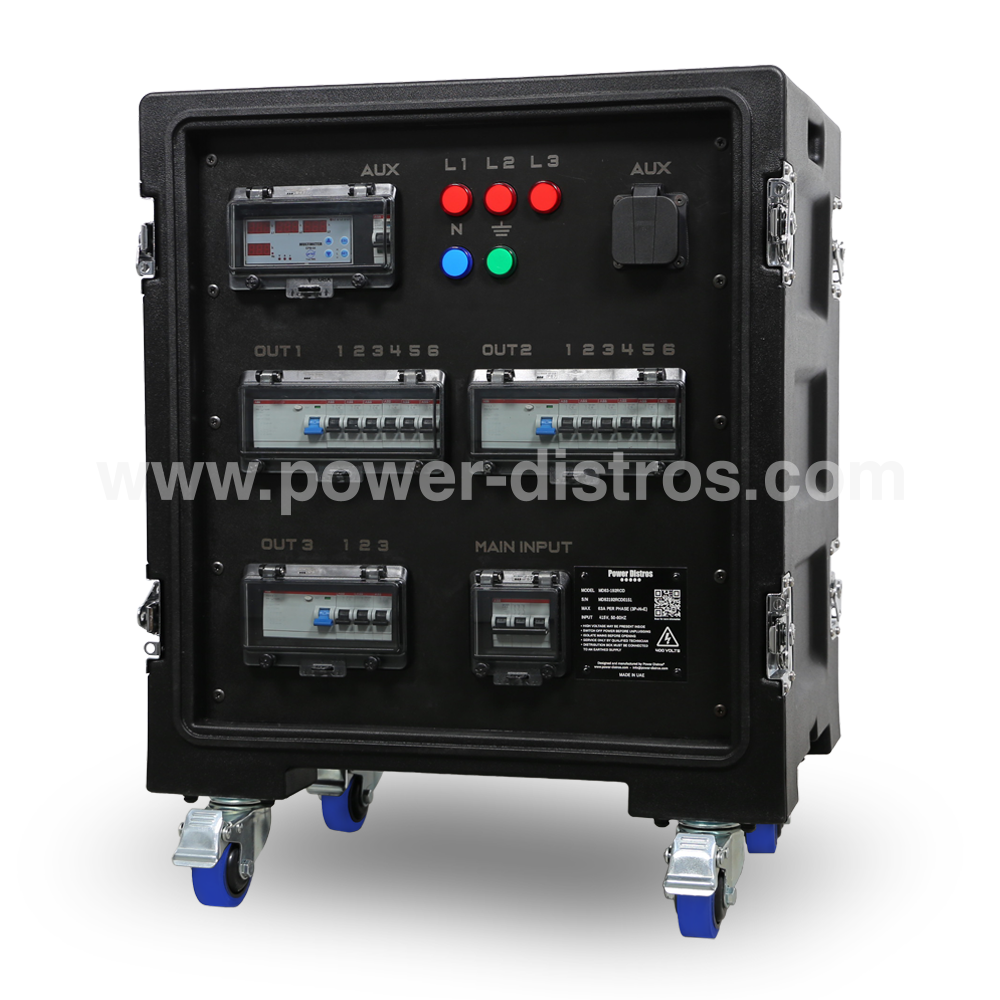

MD63-192RCD
Download MD63-192RCD Technical SheetINPUT Plugs Breakers 1 x 63A CEE 400V 5 Pin Panel Plug
1 x 63A MCB 4P
OUTPUT Sockets Breakers 1 x 13A UK Type 240V 3 Pin Panel Socket
1 x 10A RCBO
12 x 16A CEE 240V 3 Pin Flanged Socket
2 x 40A RCD 4P
12 x 16A MCB 1P3 x 32A CEE 240V 3 Pin Flanged Socket
1 x 40A RCD 4P
3 x 32A MCB 1PCASE 12U High-density Polyethylene Case 610x580x764mm
Stackable
Integrated Handles and Wheels
IP65 with lids closedFEATURES Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency
Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green
Protection Level: RCD
Additional Information: Made of Premium Components
