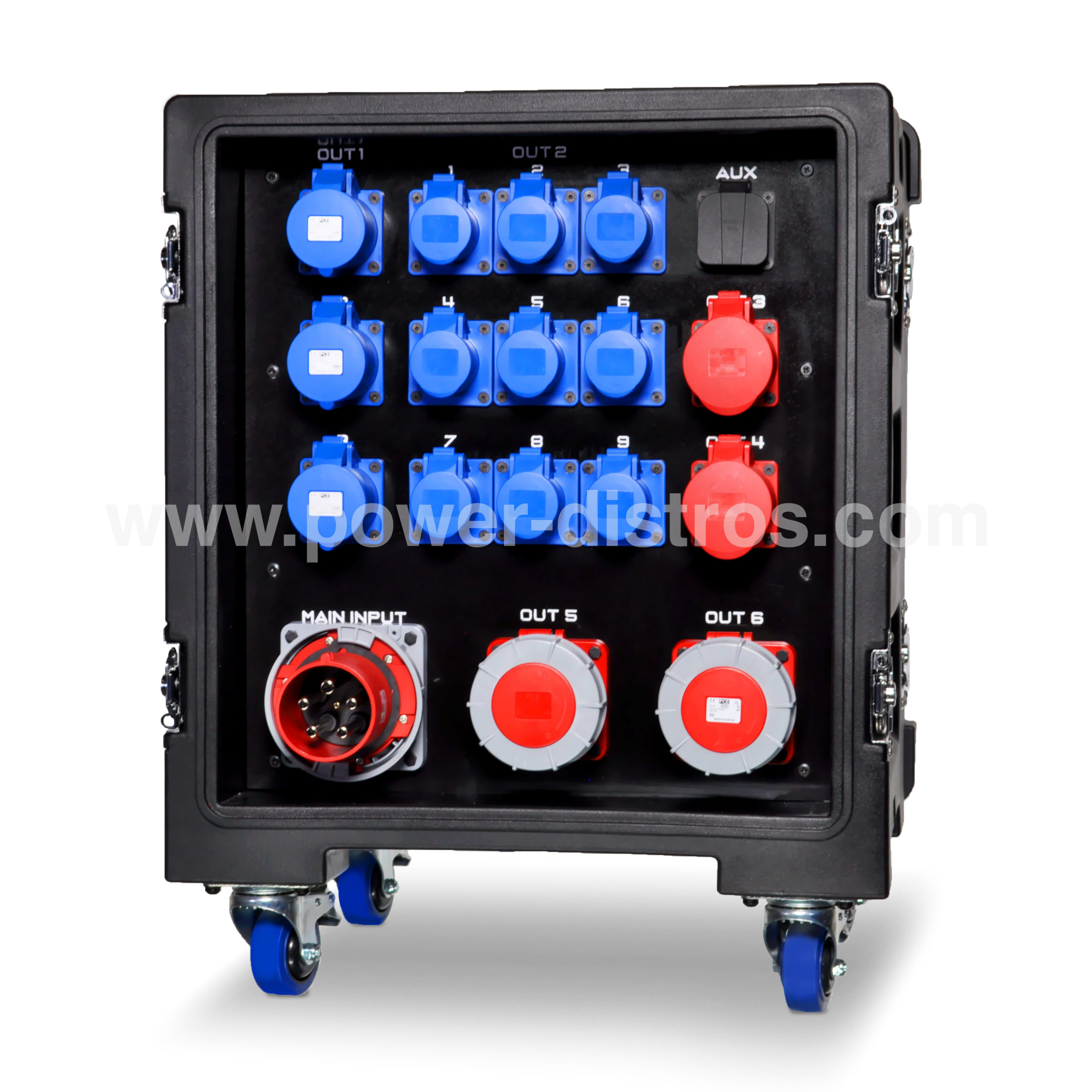

MD125-320RCBO

SKU: MD125-320RCBO CATEGORY: 125A Main Distribution Boxes
INPUT
PlugsBreakers

1 x 125A CEE 400V 5 Pin Panel Plug

1 x 125A MCB 4P

OUTPUT
SocketsBreakers

9 x 16A CEE 240V 3 Pin Flanged Socket

9 x 16A RCBO

3 x 32A CEE 240V 3 Pin Flanged Socket

3 x 32A RCBO

2 x 32A CEE 400V 5 Pin Flanged Socket

2 x 40A RCD 4P
2 x 32A MCB 4P

2 x 63A CEE 400V 5 Pin Flanged Socket

2 x 63A RCD 4P
2 x 63A MCB 4P

1 x 13A UK Type 240V 3 Pin Panel Socket

1 x 10A MCB 1P

CASE

12U High-density Polyethylene Case 610x580x764mm
Stackable
Integrated Handles and Wheels
IP65 with lids closed

FEATURES

Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Yellow

Protection Level: RCBO

Additional Information: Made of Premium Components

Download MD125-320RCBO Technical Sheet
