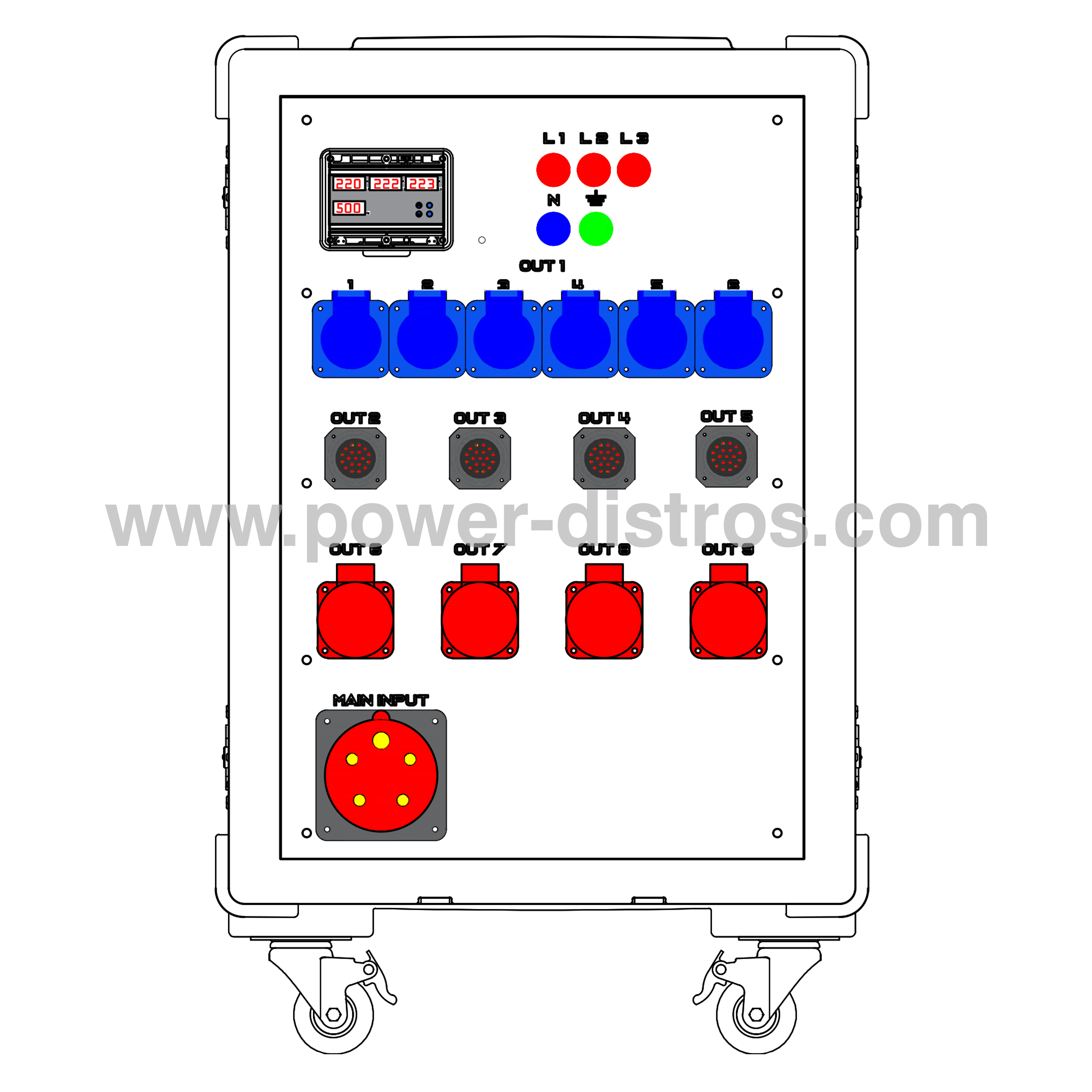

Main Distribution Box with 1 x 125A CEE 400V 5P Input. . Input: 1 x 125A CEE 400V 5P / Protection: 1 x 125A 4P MCB. Outputs: 6 x 16A CEE 240V 3P / Protection: 1 x 40A 4P RCD and 6 x 16A 1P MCB 4 x 19 Pin Connector / Protection: 4 x 40A 4P RCD and 24 x 16A 1P MCB 4 x 32A CEE 400V 5P / Protection: 4 x 40A 4P RCD and 4 x 32A 4P MCB
MD125-403RCD
| INPUT | |
|---|---|
| Plugs | Breakers |
1 x PCE 125A CEE 400V 5 Pin Plug | 1 x 125A MCB 4P |
| OUTPUT | |
|---|---|
| Sockets | Breakers |
6 x PCE 16A CEE 240V 3 Pin Socket | 1 x 40A RCD 4P |
4 x 19 Pin Socket Connector | 4 x 40A RCD 4P |
4 x PCE 32A CEE 400V 5 Pin Socket | 4 x 40A RCD 4P |
| CASE |
|---|
16U High-density Polyethylene Case 610x580x950mm |
| FEATURES | Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green Protection Level: RCD Additional Information: Made of Premium Components |
|---|
