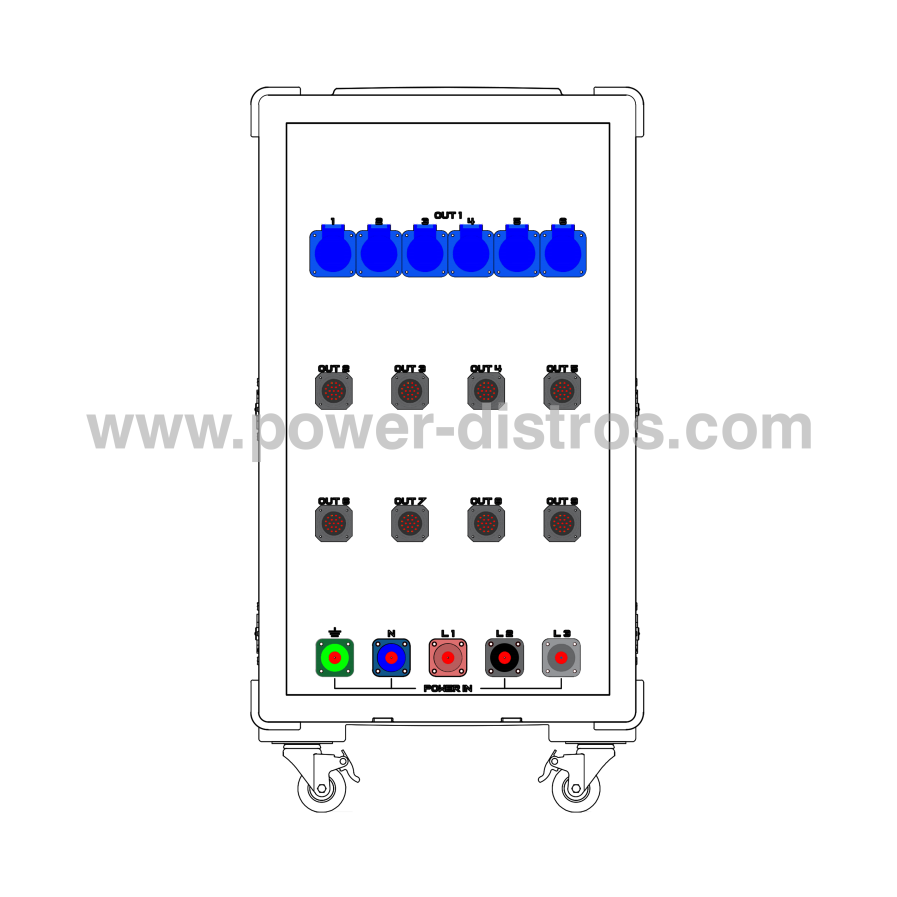

Main Distribution Box with 1 x Power Lock Set 500A Input and 250A Main MCCB Input Protection, 6 x 16A CEE 240V 3P and 8 x 19 Pin Connector Outputs- RCD Protection
MD250-011RCD
| INPUT | |
|---|---|
| Plugs | Breakers |
1 x Power Lock Set 500A Single Pole 3 Phase | 1 x 250A Main MCCB 4P |
| OUTPUT | |
|---|---|
| Sockets | Breakers |
6 x PCE 16A CEE 240V 3 Pin Socket | 1 x 40A RCD 4P |
8 x 19 Pin Socket Connector | 8 x 40A RCD 4P |
| CASE |
|---|
20U High-density Polyethylene Case 610x580x1130mm |
| FEATURES | Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green Protection Level: RCD Additional Information: Made of Premium Components |
|---|
